Multifunctional 3G Gps Tracking Device 10m Accuracy Built - In Acceleration Sensor

I'm Online Chat Now
Certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

Multifunctional 3G Gps Tracking Device 10m Accuracy Built - In Acceleration Sensor

Multifunctional 3G Gps Tracking Device 10m Accuracy Built - In Acceleration Sensor
Multifunctional 3G Gps Tracking Device 10m Accuracy Built - In Acceleration Sensor Multifunctional 3G Gps Tracking Device 10m Accuracy Built - In Acceleration Sensor Multifunctional 3G Gps Tracking Device 10m Accuracy Built - In Acceleration Sensor Multifunctional 3G Gps Tracking Device 10m Accuracy Built - In Acceleration Sensor

Large Image :  Multifunctional 3G Gps Tracking Device 10m Accuracy Built - In Acceleration Sensor Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Cartrack
Certification: CE ROSH TAC FCC
Model Number: CA-V6S-3G
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiateable
Packaging Details: Carton or customized
Delivery Time: 2-5 working days normally
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 100000 pcs / Month
Detailed Product Description
Working Voltage: 9-80V Application: Vehicles, Cars, Buses, Trucks
Network: 3G Bands: Depending On Different Countries
Inventory: 3000 Pcs Normally MOQ: 1 Pcs
OEM Or NOT: YES Sleep Model: Yes
High Light:

3g gps tracking

,

gps 3g tracker

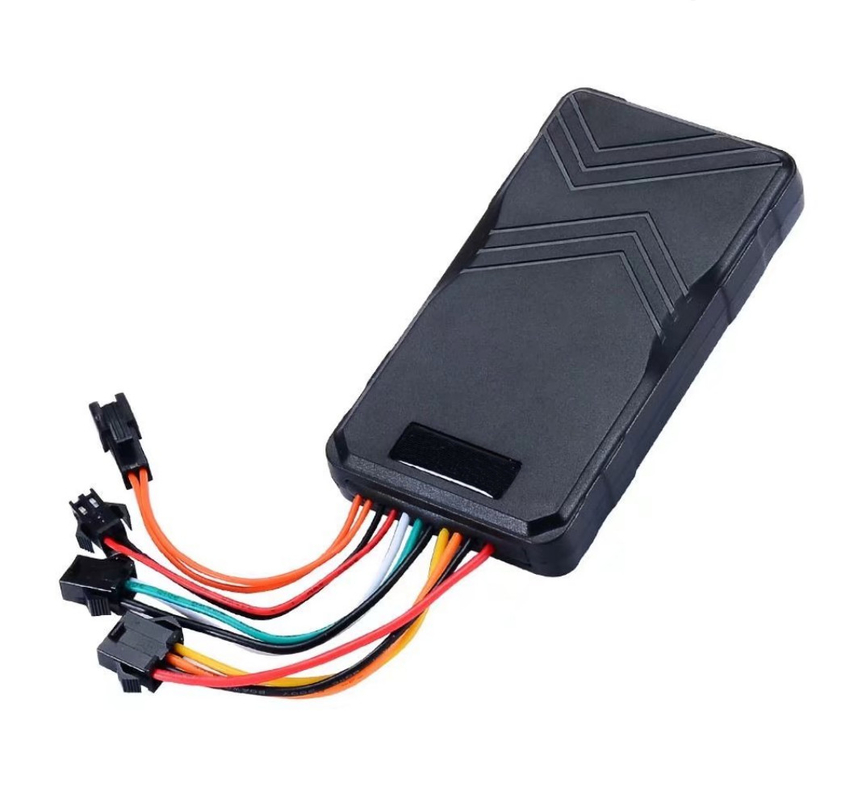

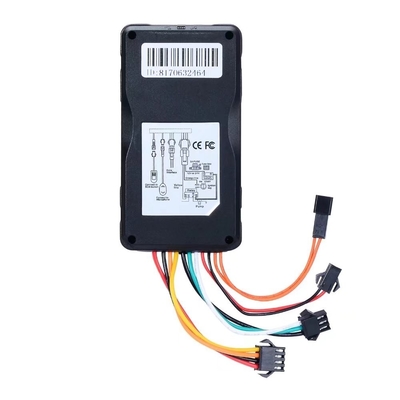

3G GPS Car tracker CA-V6S-3G Vehicle GPS Tracking Device cut oil recovery oil





Main parameters:

1)The tracker uses the MT6276A solution.

2), Frequency band:

GSM: 3G WCDMA

GPRS: Class12, TCP/IP

3).Working Voltage:9-40V DC

4)Working current:≈22mA (12vDC)

5)Working current:≈12mA (24vDC)

6).GPS locating time: Cold start≈38s(Open sky)

Warm start≈32s

Hot start≈2s(Open sky)

7).GPS Precision:10m(2D RM)

8)Working temperature:-20℃~+70℃

9)Working humidity:20%~80%RH

10).Measurement:87(L)×43(W)×14(H)mm

Main SMS COMMAND LIST





3G GPS Car tracker CA-V6S-3G Vehicle GPS Tracking Device cut oil recovery oil



Multifunctional 3G Gps Tracking Device 10m Accuracy Built - In Acceleration Sensor 0



2. Functional features

  • 3G compatible with 2G bands
  • Built-in acceleration sensor for vibration alarm and power saving
  • Built-in battery, power disconnection alarm function
  • Super wide working voltage input range: 9-80V
  • The ACC ignition signal detection, vehicle status indicators
  • Arm / Disarm
  • Watchdog function, reboot automatically after breakdown
  • Suitable for Vehicles/Cars/Motorcycles/E-bike etc
  • SOS ,microphone ,Relay is optional







Content Specs.
GPS chip UBLOX
GPS sensitivity -159dBm
GPS accuracy 10m
Time To First Fix

Cold status 38s

Warm status 15s

Hot status 1s

Voltage input 9-80V input
Battery Build-in 3.7V 200 mAh Li-ion battery
Storage Temp. -40°C to +85°C
Operation Temp. -20°C to +55°C
Humidity 5%--95% non-condensing
Size 90mm x 33mm x 15mm
Weight 67g ( Battery and Power cord Included )
Waterproof IP65



Multifunctional 3G Gps Tracking Device 10m Accuracy Built - In Acceleration Sensor 1



FAQ:



Can I have your skype ID?



Yes, My skype ID is THINGSYS



What is your WhatsApp?



My WhatsApp is +8618666212621



How can I buy it?



We accept T/T, Western Union, and Paypal after we receive your payment. then we will send goods to you.



Is there any built-in battery in your device?



Yes, So it supports the power-off alarm function.



What kinds of battery in your device?



Li-ion rechargeable battery.



3G GPS Car tracker CA-V6S-3G Vehicle GPS Tracking Device cut oil recovery oil
