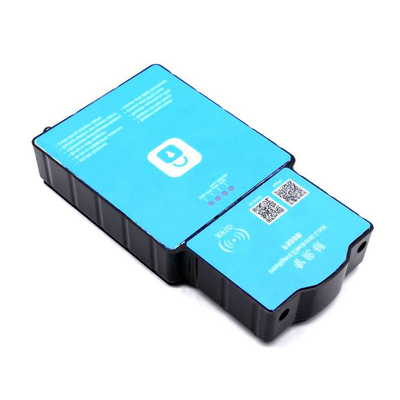

Large Image :  Container And Truck FB500 GPS Tracker With The Electronic Lock Of Logistics strong magnetic and long life tracker

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Cartracker
Certification: CE/ROHS/FCC/SGS
Model Number: FB500 / CA-P10

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiateable
Packaging Details: Carton or customized
Delivery Time: 1-10 working days after payment cleared
Payment Terms: T/T, Western Union, MoneyGram, L/C, PayPal
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: Container GPS Tracker Functions1: Magnetic Tracker GPS
Functions2: Without Power Cable Functions3: Long Standby Time 15000 Mah
GPS Accuracy: 10M Weight: 1.1 Kg
GPS Chip: Ublox7 Network: GSM GPRS GPS
Color: Blue / Green Functions3: GPS Tracker For Container
Functions4: Lock



Container And Truck FB500 GPS Tracker With The Electronic Lock Of Logistics



The electronic lock of logistics, through the mobile GPRS wireless network system, realizes the uninterrupted real-time monitoring and real-time alarm for the whole process of cargo transportation, so that the supervisory unit, the transport enterprise and the cargo owner can grasp the flow of goods in real-time and ensure the cargo transportation process. Effective supervision to improve the efficiency of customs clearance or inspection, thereby reducing corporate costs and enhancing competitiveness.
1) Directory
1.2 Application scope editing
Power metering box, customs container logistics, inspection and quarantine off-site inspection, special control commodity logistics monitoring, dangerous goods transportation, enterprise logistics, petrochemical logistics
1.2 Features Edit
1.2.1, the recognition distance of up to 40 meters, automatic identification, collection, no manual intervention
1.2.2, high-temperature flame retardant modified ABS engineering plastics manufacturing weatherproof, shockproof, moisture-proof, anti-destruction, can adapt to various gasification changes
1.2.3, embedded GPRS module can transmit data in real-time, automatic roaming, wide monitoring range, low communication cost
1.2.4, 6-8 years of service life can be used for a long time, no need to replace the battery
1.2.5, using encrypted communication to prevent external malicious attacks and data tampering
1.2.6, 2.45G microwave working for frequency band High data transmission speed, long-distance, low power consumption
1.2.7, powerful application development package Support various logistics monitoring business needs, provide perfect

2. Microwave link communication
Operating frequency: 2.4GHz
Recognition distance: up to 40 meters (with a fixed reader, in the air)
Up to 20 meters (with a handheld reader, in the air)
Receive sensitivity: -80 dBm ~-90 dBm
Output power: 0dBm (software adjustable)
Up/down rate: 1000 kb/s / 1000 kb/s
Storage space: readable and writable
3. Electrical
Power supply: lithium battery, not replaceable
Power consumption: <3&micro; micro; A (quiescent current); <3.5mA (operating current)
Expected battery life: 3.0V / 600mAh lithium battery (6 ~ 8 years), optional 10-year battery life
4. Environment
Working temperature: -40 ° C ~ +80 ° C
Storage temperature: -60 ° C ~ +85 ° C
Anti-electromagnetic interference: 10V/m 0.1~1000MHz AM amplitude-modulated electromagnetic wave
Vibration: 10 ~ 500Hz 15g three axes
Freefall: 1500mm concrete floor, each face twice
Protection level: IP65 physical properties
Dimensions: 78.8 × 67.0 × 23.0 (mm)
Color: black / red
Package: high-temperature flame retardant modified ABS engineering plastics
Weight: 1100g



Container And Truck FB500 GPS Tracker With The Electronic Lock Of Logistics



1. Product Introduction

FB500  Lock tracker combined with positioning, monitor and observe, the main applies to container, trucks and other transportation object location and tracking services.

FB500 lock tracker fully supports the GPRS network data transmission function, GPRS platform can be combined with software to make it more widely used in large-scale cluster monitoring, transportation management and many other fields.





Product Features:

  • Backup battery low power alarm.
  • Build-in GSM/GPS antenna.
  • Support GPS real-time tracking(platform support).
  • Support GPRS network data transmission.
  • Lock ON/OFF alarm.
  • Lock-string tamper alarm.
  • Rechargeable battery.
  • Support sleep mode.
  • Remote upgrade by OTA.
  • Build-in with the magnet.
  • Unlock with RFID card(max support 10 RFID card).
  • Unlock with SMS command(with unlock password).
  • Support 25 Geo-fence.

Note:

  • This product function based on GPRS network; need a SIM card which has GPRS data transmit and SMS functions.
  • SIM card is not included in the packing list, please prepare a SIM card before you use this device.
  • Please only use the charger from the factory.

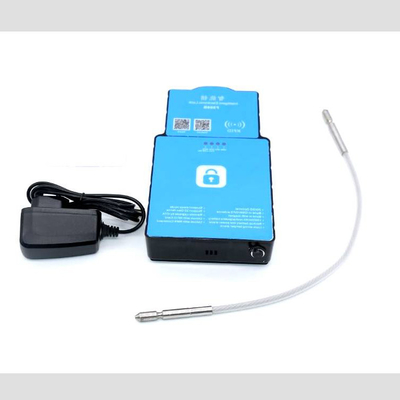

2. Packing List

No. Name Count
1  Lock device 1
2 Lock string wire 1
3 RFID card Optional

3. Technical Parameters

Name Parameters
GSM module

900/2100MHz@UMTS

900/1800MHz@GSM

Color Black
GSM module UC15-E(QUECTEL)
GPS module SKG1612R(Skylab)
Working Current Around 130mA@3.7V battery
Sleep mode Current Around 70mA@3.7V battery
Back-up Battery 15,000mAh rechargeable lithium battery
Tracker size 195mmx114mmx37mm
Tracker weight 700g
Working temperature -30℃ - +60℃
Moisture 5% - 95%
Locate Sensitivity 5m, CEP
Locate time

Hot start(average): <2s

Cold start(average): <25s


4. Define of LED indicator




  LED Color Status Status describes



GSM status

Red 3s blinking once Find SIM card
Red 1s blinking once Do not find SIM card or GSM module
Red 0.2s fast blinking in 2s The device receiving or sending GPRS data
Red Off GSM module fault, no power or LED die



GPS signal status

Green 0.5s blinking once Initializing
Green 1s blinking once Initialization finished, but GPS does not get the position
Green 3s blinking once GPS gets position now
Green Off LED die, no power or GPS module fault.





5. Device Installation



Container And Truck FB500 GPS Tracker With The Electronic Lock Of Logistics



Before you start installing the device, Please check the product you get with the packing list, if you have any problem please contact us or distributor in time.





5.1 Prepare works

  •  lock tracker
  • Local GPRS SIM card
  • RFID card



5.2 SIM Card Installation

This device need to install a SIM Card, which must have GPRS data transmission and SMS function. In the default setting, this device will use around 5MB~20MB data flow, please select a suitable package.





Note:

  • Do not install SIM Card in the opposite way.
  • SIM Card must open GPRS data transmission function
  • Confirm the SIM Card have enough balance inside.
  • Test SIM card by cellphone to check if it can connect network
  • Please do not remove or insert SIM Card without power off, to avoid the damage to SIM card and device



5.3 RFID No. White List

  • Set by Tool “GPS Tracker Configuration Tool”.
  • Set by the command(Please check at command list for details)
  •

5.4 Lock ON

Just insert the lock wire into the hole, the lock hole will detect wire by AUTO, after been detect will be lock on, and device will beep once.

5.5 Unlock

  • Unlock with RFID card

Swipe the RFID card at RFID reader position for 1-3s, when you hear the beep sound, means unlocking, after the sound end, then you can pull the lock wire out;



  • Unlock with SMS command



After you send the command, when you hear the beep sound, means unlocking, after the sound end, then you can pull the lock wire out.



6. Setting Commands (SMS)

To make the device work on GPRS mode together with the control center software system, we have to set some parameters to make the device know where and how to connect the server.

The following parameters must be set before you use this device:

  • Server IP and Port (No.1 in the table)

Device must have a server to upload the data to; in default it is set to our server IP and Port, if you use your own server, tell us before you place an order. The setting command is No.1, for example: AS1234*269#1,59.188.20.77,5577,0#

(In that command,”59.188.20.77” is the IP, “5577” is the port, “0” is UDP and upload self-def2.)

  • APN (No.3 in the table)

The full name for APN is Access Point Name, which should be given when you buy a GPRS SIM Card. It is offered by GSM network supplier like China Mobile public APN is CMNET.

It is consists of 3 parts: APN, APN user name, APN password. Some of the GSM operators do not have an APN user name and APN password, just leave it blank.

  • Device parameters checking (No.6 in the table, Optional)





Applications:


1.  Vehicle Rental / Fleet management etc



2.  Container/cargo/asset tracking

Container And Truck FB500 GPS Tracker With The Electronic Lock Of Logistics strong magnetic and long life tracker



Guarantee:

1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not  be returned.



Container And Truck FB500 GPS Tracker With The Electronic Lock Of Logistics strong magnetic and long life tracker

FAQ:

How can I buy it?

We accept T/T, Western Union, and Paypal after payment cleared. then we will send goods to you.

Can I have your skype ID?

Yes, My skype ID is THINGSYS

What is your WhatsApp?

My WhatsApp is +8618666212621
