ST901 GPS Tracker With IP68 E-bike Support Waterproof And Real Time Tracking

ST901 GPS Tracker With IP68 E-bike Support Waterproof And Real Time Tracking
ST901 GPS Tracker With IP68 E-bike Support Waterproof And Real Time Tracking ST901 GPS Tracker With IP68 E-bike Support Waterproof And Real Time Tracking ST901 GPS Tracker With IP68 E-bike Support Waterproof And Real Time Tracking

Large Image :  ST901 GPS Tracker With IP68 E-bike Support Waterproof And Real Time Tracking Get Best Price

Product Details:
Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA-V5W
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Detailed Product Description
Product Name: E-bike GPS Tracker GPS Sensitivity: -159dBm
GPRS Chip: MTKv6261 Rechargeable Lithium-Polymer Battery: 140mAh
Torage Temp.: -40°C To +85°C Operation Temp: -20°C To +55°C
Function1: Waterproof IP67 Function2: E-bike Anti-Theft
High Light:

Auto GPS Tracker

,

Car GPS Tracking





ST901 GPS Tracker With IP68 E-bike Support Waterproof And Real Time Tracking





Performance Parameters:



Content

Specs.

Name E-bike GPS Tracker

Network

2G GSM

Band

850/900/1800/1900Mhz

GPS chip

UBLOX

GPS sensitivity

-159dBm

GPS accuracy

10m

Time To First Fix

Cold status  38s

Warm status  15s

 Hot status  1s

GPRS

MT6261



Description:



  1. GSM 850/900/1800/1900MHZ system global general;
  2. Car GPS Tracker built-in switching power supply, exceed wide voltage input range: 9-80 VDC;
  3. Waterproof GPS Tracker GPS continuous GPS positioning, GPRS report regularly;
  4. Waterproof GPS Tracker Support SMS message to check the location info;
  5. It’ll sleep automatically when it’s still and will be awakened by moving, therefore, it can save power a lot.
  6. It supports geofencing set by the webpage GPS tracking platform/smart phone APP/messages, once it’s out of fence, a warning will be sent to the monitor phone number.
  7. Built-in vibration sensor, realization vehicle anti-theft intelligently;
  8. ACC the ignition signal detection,vehicle status prompted;
  9. Built-in backup battery, realize the illegal cut the line alarm;
  10. Automatic failure recovery;
  11. Waterproof design, Easy to install and setup.

Real time tracking

According to the stetted time update the longitude and latitude inform.



Car Status checking

Every time when the device uploaded data will include the ACC on/off status.



Power down alarm

When device checking the voltage is lower than 5V it will have power down alarm



Over speed Alarm

When speed is over than the set speed, device will send message to user.



Oil checking

Cut off /open oil engine through server and message



Blind area uploading data

Storage for almost 600pcs and it will upload the date when the signal is regular



EPO located for assistance

To increase the located function



Inflexion upload

When the turn(make a turn) is more than a normal angle it will send a message to optimize the playback



Remote upgrading

With a software

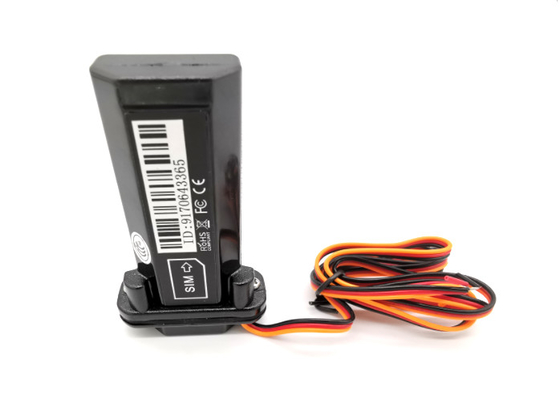

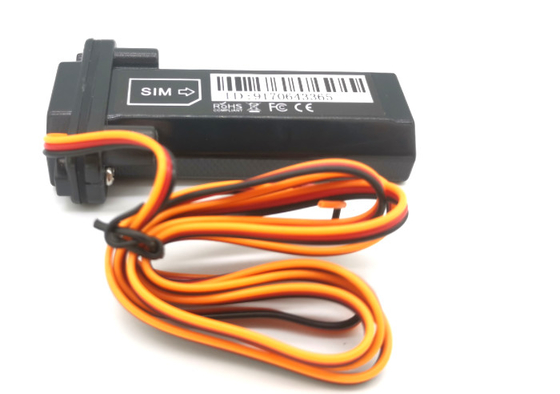

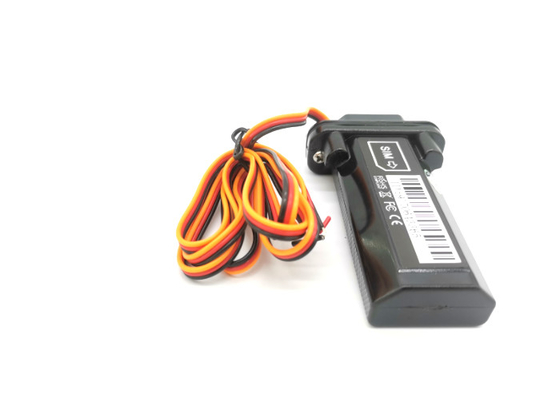

Detail Pictures:









  • IP67 dust and water proof
  • Built-in Li-ion battery, Power disconnection alarm function
  • Watch dog function,reboot automatically after breakdown





Applications :



  • Motorcycles Anti-theft
  • Vehicle rental / Fleet management Solution.





Gurantee:



1. All of our product is free to use the Tracking service server in 24 hours each day

2. All of our product there is a 2 year quanlity assurance.

3. Sample fee will not  be returned.





Product Configuration:



1. Standard configuration



1  Power Line 1pcs
2  CA-V5W Device 1pcs
3  User Manual 1pcs



ST901 GPS Tracker With IP68 E-bike Support Waterproof And Real Time Tracking 0ST901 GPS Tracker With IP68 E-bike Support Waterproof And Real Time Tracking 1ST901 GPS Tracker With IP68 E-bike Support Waterproof And Real Time Tracking 2
