Payment & Shipping Terms:
|Warranty:||1 Year||Function:||Real Time Tracking|
|Place Of Origin:||China||Position Accuracy:||5 Meters|
|Working Voltage:||DC9-100V||GPRS:||Class 12 TCP IP|
vehicle gps tracking device,
car gps tracker device

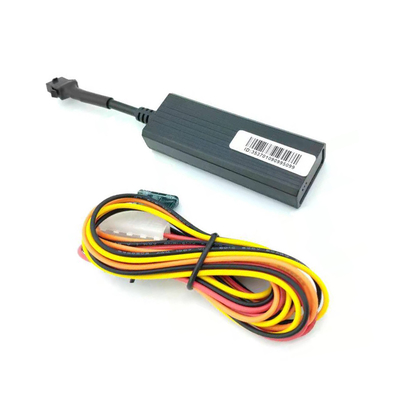

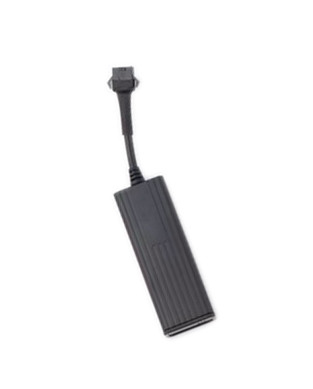

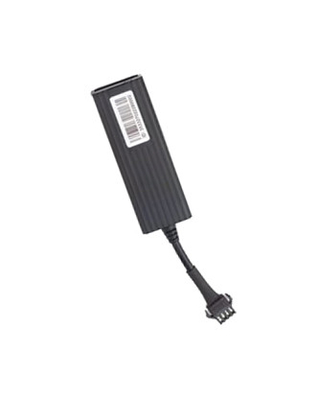

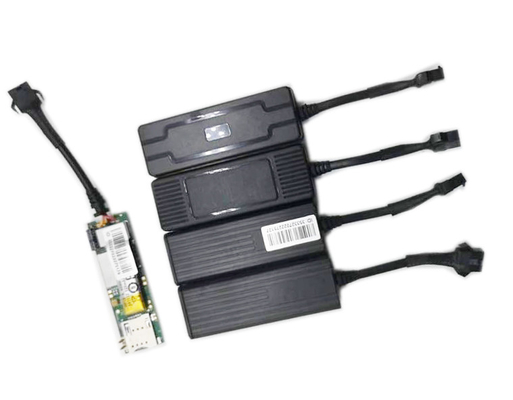

Vehicle GPS tracker mini GPS tracker with very small size with the support of ACC and Relay
Multi Mode Positioning: BD GPS LBS
GPS Tracker Applications And Where you install it.
GPS Tracker Main Functions:
1. Real-Time Positioning:
TK003 GPS Tracker Device will get the real-time position message and upload all status to the server system.
And will display the position on the map. you can click any of the points to know the name. locating time. and acc status.speed
GPS Time, direction and so on.
2. Vibration alarm:
After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.
3. Power-off alarm:
If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.
4. Remote Car Lock
If illegal ignition alarm receives from GPS Tracker, you can remote cut off the vehicle circuit, so that to avoid being driven away.
5. SOS Alarm
Users can press the SOS button on GPS Tracker under emergency situations. GPS Tracker will send alarm message to manage system and
Call police simultaneously.
male switch, Female switch
Red(positive) Black (Negative)
1. red wire connect positive(+),black wire connect negative(-)
2. power input connector to power positive and negative connectors( make sure connect the right connector)
GPS Tracker Parameters:
|Working Voltage:||DC9-100V or 12-40V, optional.|
|Working temperature:||‘-20 ℃ to +70 ℃|
|Storage temperature:||’-40 ℃ to +80 ℃|
|Working Humidity:||5% to 90%|
|Power consumption:||Average power consumption<1W, power-saving status<2mW|
|GPS Tracker size:||76mm*27mm*15mm|
|Interface:||Power input, ACC input detection, cut off fuel circuit.|
|Communication band:||GSM/GPRS 850MHz 900MHz 1800MHz 1900MHz|
How to ship goods?
How to use this GPS tracker?
1. Input SIM Card inside the GPS Tracker product.
2. Connecting GPS Tracker with power supply.
3. Put GPS Tracker device near a window or some open area waiting for signal ready.
4. When all indicators lighted and flashed normally means GPS Tracker works. now send SMS command to
communication network, you will receive a GPS Tracker status report by SMS.
