Waterproof Magnetic GPS Tracker Magnetic Gps Tracking Devices With 10000 Battery

I'm Online Chat Now
Certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

Waterproof Magnetic GPS Tracker Magnetic Gps Tracking Devices With 10000 Battery

Waterproof Magnetic GPS Tracker Magnetic Gps Tracking Devices With 10000 Battery
Waterproof Magnetic GPS Tracker Magnetic Gps Tracking Devices With 10000 Battery
video play

Large Image :  Waterproof Magnetic GPS Tracker Magnetic Gps Tracking Devices With 10000 Battery Get Best Price

Product Details:
Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA-P3B
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 10,000pcs per month
Detailed Product Description
Product Name: Magnetic GPS Tracker Functions1: Waterproof IP66
Battery: 10000mAh Battery GPS Accuracy: 5-30m
Dim.: 130mm*70mm*20mm Band: 850/900/1800/1900MHz
Weight: 0.4 Kg Operation Temp.: -20°C To +55°C
Network: GSM GPRS Storage Temp: -40°C To +70°C
GPS: Ublox GSM: MTK6260
High Light:

gps magnetic tracker

,

magnetic gps trackers



Waterproof Magnetic GPS Tracker Magnetic Gps Tracking Devices With 10000 Battery​






Performance Parameters:







Content Specs.
Dim. 130mm x 72mm x 20mm
Weight 300g
Network GSM/GPRS
Band 850/900/1800/1900Mhz
GPS chip UBLOX
GPS sensitivity -162dBm
GPS accuracy 10m
Time To First Fix

Cold status 35-80s

Warm status 35s

Hot status 1s

Car charger 12—24V input 5V output
Wall charger 110-220V input 5V output
Battery Chargeable changeable 3.7V 10000mAh Li-ion battery
Standby 100 days
Storage Temp. -40°C to +85°C
Operation Temp. -20°C to +55°C
Humidity 5%--95% non-condensing



Description:




1. Online web platform, the historical and current location can be checked.



2. alarm functions:

    a. drop alarm

    b. overspeed alarm

    c. shock alarm

    d. Low battery alarm



3. GPS+LBS solutions,shorter locating time,higher precision.



4. Magnetic GPS Tracker support Geo-fence function.



5. Inlayed 3D accelerator,moving and static state, energy smart.



6. Change the time interval of uploading automatically according to the speed.



7. LED Indicator:

    a. Yellow LED for GPRS working status

    b. Blue LED for GPS working status

    c. Red LED for power charging status



8. Admin checks the altitude and longitude and location information by texting.



9. Magnetic GPS Tracker with rechargeable battery

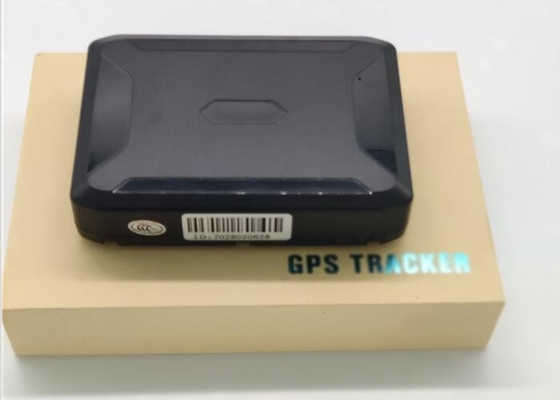

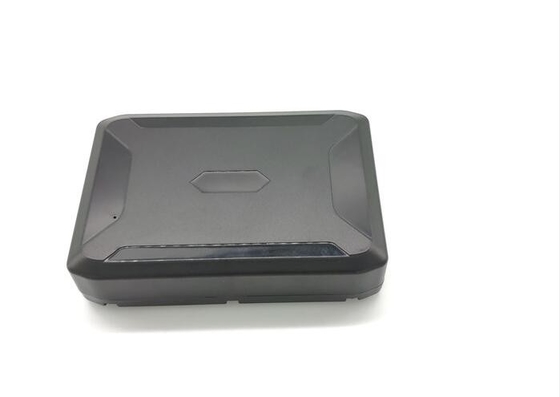

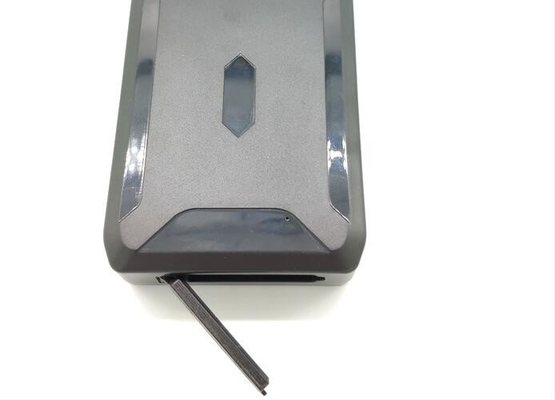

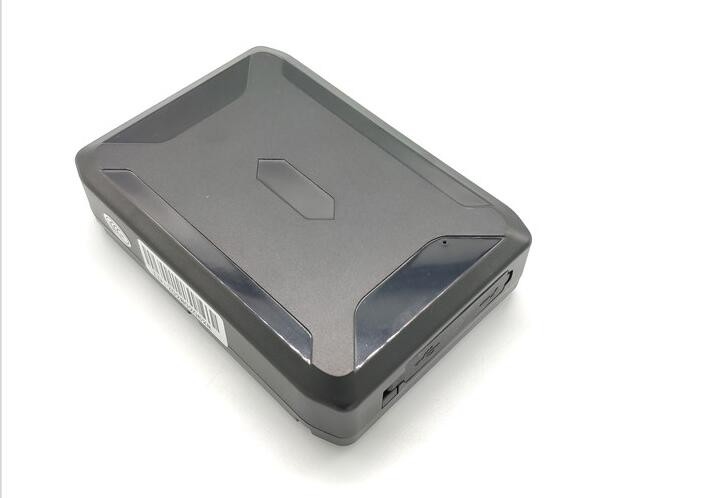

Detail Pictures:



Waterproof Magnetic GPS Tracker Magnetic Gps Tracking Devices With 10000 Battery​



5.5.1 Set Password: Send sms: “password+old password+space+new password” to the unit to change the password.



For Example, please send sms: “ password123456 000000” to terminal device, it will reply sms: “password OK”. New password 000000 changed in success.







5.5.2 Be sure keep the new password in mind, you have to upload the software to restore the original setting in case of losing the new password.



5.5.3 Make sure the new password is in 6 digits Arabic numbers, or the tracker can not recognize the password.



5.5.4 Make sure that all the symbol“+”in sms commends is just for quick understanding, which don’t need to enter “+” in SMS, and “space” means press the spacebar button of the cell phone.



5.6 Authorization

Send SMS:“admin+password+space+cell phone number” to set up a authorized number. The other authorized numbers should be set by the first authorized number. If the number is successfully authorized, the unit will reply “admin ok!” in SMS.





5.7 Single Locating

Single message inquires the latitude and longitude information, any telephone number can send command: “ g1234 ” to the equipment, then the equipment will reply the latitude and longitude information to this telephone



*Tracking location, When GPS signals is too weak, the position of latitude and longitude included in the SMS is the position that the tracker received GPS signals at last. If it is different with its exact current location, pay attention to check the time included in the SMS you got.



5.8 Work mode

5.8.1 Auto work mode (default)

Auto track mode sms: auto123456 , reply: OK.

In this mode, in ten minutes if there is any alarm, it will enter sleep mode. GPS and GPRS will be off. If you call it or send sms or there is vibration alarm. It will be waken up.



5.8.2 No Sleep mode

No sleep mode sms: nslp123456 , reply: OK.







Battery and Charger



Do charge the battery to capacity in 8 -12 hours for first time. Please use the battery and charger provided by the manufacturer. This unit adopts built-in Li-ion battery, and full battery can standby 100days. After first use, the battery usually should be charged fully in 4--6 hours.







Applications:


1.  Vehicle Rental / Fleet management etc



2.  Container/cargo/asset tracking



Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not  be returned.


 Waterproof Magnetic GPS Tracker Magnetic Gps Tracking Devices With 10000 Battery​

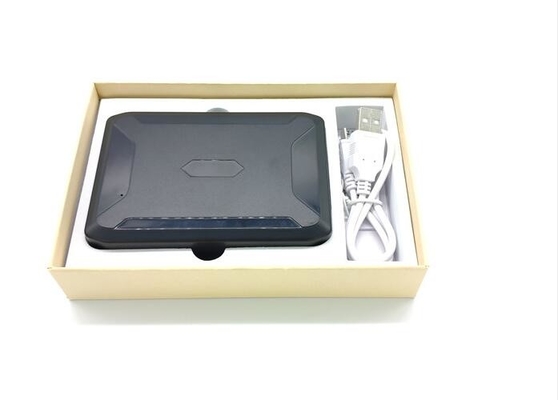

Product Configuration:

1. Standard configuration

  1. Main device,
  2. Charger ,
  3. USB cables,
  4. Usage instructions
  5. Warranty card

Waterproof Magnetic GPS Tracker Magnetic Gps Tracking Devices With 10000 Battery 0Waterproof Magnetic GPS Tracker Magnetic Gps Tracking Devices With 10000 Battery 1

Waterproof Magnetic GPS Tracker Magnetic Gps Tracking Devices With 10000 Battery 2
