HDD MDVR SW0003 For Local Record With GPS Vehicle Tracking 4G 3G Real Time Video

China HDD MDVR SW0003 For Local Record With GPS Vehicle Tracking 4G 3G Real Time Video supplier
HDD MDVR SW0003 For Local Record With GPS Vehicle Tracking 4G 3G Real Time Video supplier HDD MDVR SW0003 For Local Record With GPS Vehicle Tracking 4G 3G Real Time Video supplier HDD MDVR SW0003 For Local Record With GPS Vehicle Tracking 4G 3G Real Time Video supplier

Large Image :  HDD MDVR SW0003 For Local Record With GPS Vehicle Tracking 4G 3G Real Time Video

Product Details:

Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA-SW0003

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Network: WCDMA Work Voltage: DC6-36
Video Compression: H.264 Function: Real Time
Module: GPS WIFI WCDMA Camera: 4 Channel
Dim.: 200x187 X62 Mm OSD: Overlays Information Such As Date Time And Vehicle ID
Loop Rec: Support SD Card Loop Recording, Loop Cover Previous Video Record Mode: Timed Recording, Alarm Trigger Recording And Manual Recording
Video Search: Search Video Files Anytime Per Day, Type(n/a)


HDD MDVR SW0003 For Local Record With GPS Vehicle Tracking 4G 3G Real Time Video


Performance Parameters:





HDD Mdvr for Local Record with GPS vehicle tracking

GPS vehicle tracking, history location report
Alarm report
Real-time video monitoring



Specifications of MDVR:

GPS vehicle tracking, history location report
Alarm report
Real-time video monitoring

H.264 Compression mode,4 chnnels AHD
Live video-960H/720P/D1/HD1/CIF for choosing
Living video can be edited with date,time,car Plate NO,speed,brake,alarms.
Supports SMS edit
Two way communication(Optional)
Alarm by picture
OTA-System update on the air for better mentainance
Supports SD card (It can be 128G SD card)
3 input,1 output
Supports Supports 3G/4G/WIFI (Optional)



Video Channel 4Channel video + 4Channel Audio recording synchronously;
Resolution Support 4*720P(1280*720),4*D1(704*576),4*HD1(704*288), 4*CIF(352*288);Each channel is individually adjustable.
Image Quality 0-7 levels, 0 is the highest level.
OSD Overlays information such as date time and vehicle ID
Loop Rec Support SD card loop recording, loop cover previous video
Record Mode Timed recording, alarm trigger recording and manual recording
Preview

Support 1 channel and 4 channels preview. Support enlarge
video image when alarm trigger and video rear view trigger;

Disk
overwritten

Space pre-allocated Support disks overwritten function.
Video Search Search video files anytime per day, type(n/a)
Playback Support 1 to 4 channels playback.
Support forward and backward play at the speed of: x2 ,x4,x8,x16.






Introduction



MDVR Specifications are as below
Operation Menu: Graphical menu interface
Password: User password and Admin password
Video input: 4-CH composite video input
Video output: 1-CH composite video output
Video display: 1 channel/4 channel
Video signal: PAL/NTSC
Compression: H.264 Main profile, 75f at D1/s, 300f at CIF/s
Audio input: 4-CH audio input
Audio output: 1-CH audio output
Recording mode Audio & video sync recording
Video format: CIF/HD1/D1 optional
Video stream standard: ISO14496-10

HDD MDVR SW0003 For Local Record With GPS Vehicle Tracking 4G 3G Real Time Video
Video bitrate
CIF: 384Kbps(lowest), 512Kbps(middle),768Kbps
(highest), 3 levels optional
HD1: 512Kbps(lowest), 768Kbps(middle), 1024Kbps
(highest)3 levels optional
D1: 512Kbps(lowest), 768Kbps(middle), 1024Kbps
(highest), 3 levels optional
Audio bitrate 8KB/s
Storage Supports two 64GB SD cards/one 2.5"Max 2T HDD
4 alarm input, below 4V is low level alarm, above 4V is high level alarm
Alarm output 2 alarm output, output high level of 12V & 5V
Supports one RS485 interface
Supports one RS232 interface
Built in acceleration G-sensor
Analysis of Playback: playback Playbacks recording on PC and analyzes the vehicle
Software upgrade: Supports SD card USB flash disk to upgrade



State:
    SD card MDVR This manual may exist any technical describe inaccurate or misprint,also the contents will be update unscheduled without notice,new contents will be added in next version;
We’re subject to improve or update product description or program,if any difference,all depend on real goods,please understand.



Functional Features:

  1. Ø SD card Mobile DVR HIS Solution,H.264 Compression Mode, Many stream recording,4CH Video+2CH Audio Input, Compatible with 4CH 720P/960P Mega Pixels Analog High Definition Camera input /2CH AHD High Definition + 2CH Standard Definition mixed input / 4CH Analog Standard Definition Camera input.

    Ø Real-time HD Video Recording, 720P/D1/HD1/CIF for Optional,Adjustable Frame Rate Quality.

    Ø Professional Power Design for all kinds of Vehicles, 8-36V DC; Wide Voltage, Over-load,Over-voltage,Short Circuit,Reverse Protection,Suitable for all kinds of vehicles.

    Ø SD card Mobile DVR Support DC 12V/2.5Amp output, it can offer power for cameras,mini monitor and some peripheral device.

    Ø HDD + SD card Data record storage (maximum support 2TB 2.5’’ hard disk and 128GB SD card. ) It can be completely resist car Vibration,Dust and others cause data corruption;

    Ø Watchdog Abnormal will trigger Restart Protection Function . It can better protect Device and Video.

    Ø Exclusive pre-allocate DVR Special File System Technology,Solving repeatedly wipe cause file fragmentation, and ensure the integrity of the data.

    Ø SD card Mobile DVR By accidents power-off protection function.Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 10-15s.

    Ø Flame out Time-lapse Video Recording Function ( Highest support long delay time 24 hours.)

    Ø Auto Recording,Time Recording,Alarming Recording Modes for Different Request.



 HDD MDVR SW0003 For Local Record With GPS Vehicle Tracking 4G 3G Real Time Video
Applications And main functions:

1 Vehicle,Truck,Bus,School Bus etc.
2 Real Time video monitoring
3 GPS Tracking
4 Assets Tracking
5 Fleet Management



Product Configuration:

    1. Standard configuration

  1. Device host       1pcs;
  2. Power  Cables    1pcs;
  3. I/O Cables        1pcs;
  4. AV Cables         1pcs;
  5.

    2. Optional configuration:

  1. camera
  2. lcd display
  3. SD card
  4. hard disc
  5.

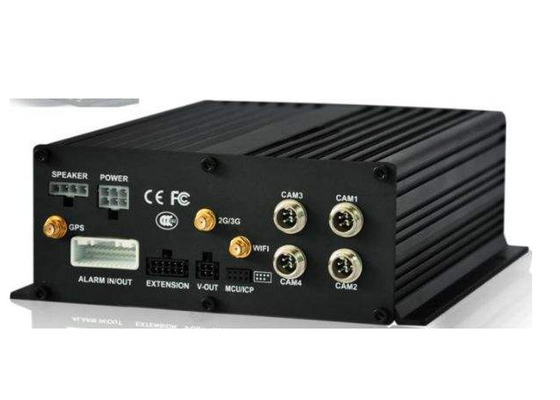

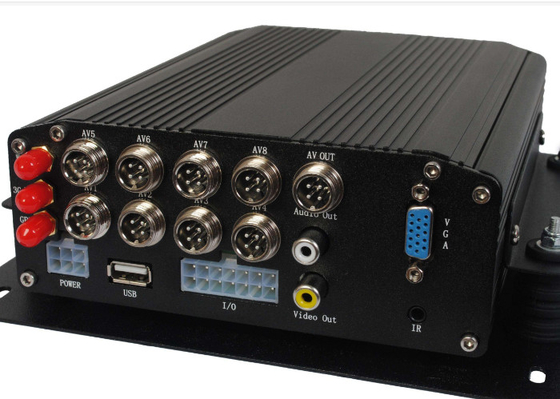

Detailed Pictures:



HDD MDVR SW0003 For Local Record With GPS Vehicle Tracking 4G 3G Real Time VideoHDD MDVR SW0003 For Local Record With GPS Vehicle Tracking 4G 3G Real Time Video
