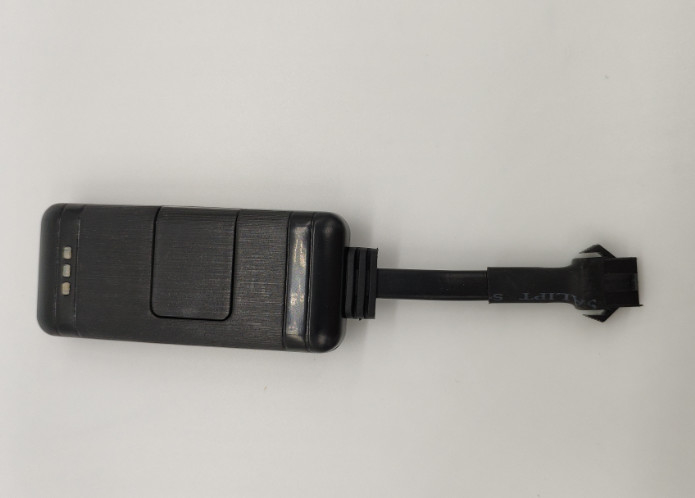

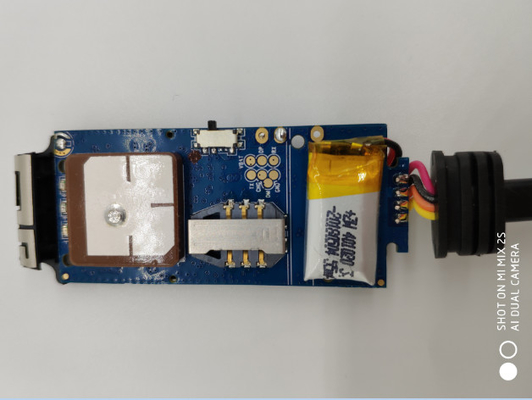

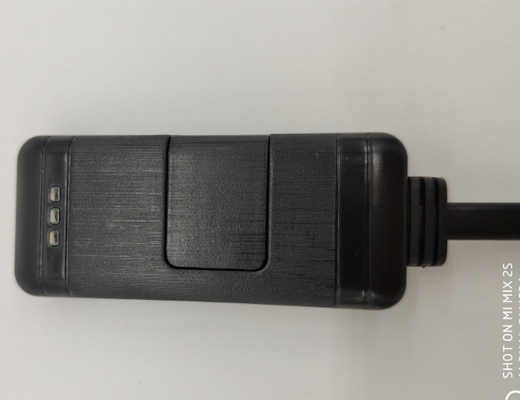

Built - In Battery GPS Car Tracker G17H With MT6261 GSM / TD1030 GPS Module

China Built - In Battery GPS Car Tracker G17H With MT6261 GSM / TD1030 GPS Module supplier
Built - In Battery GPS Car Tracker G17H With MT6261 GSM / TD1030 GPS Module supplier Built - In Battery GPS Car Tracker G17H With MT6261 GSM / TD1030 GPS Module supplier Built - In Battery GPS Car Tracker G17H With MT6261 GSM / TD1030 GPS Module supplier

Large Image :  Built - In Battery GPS Car Tracker G17H With MT6261 GSM / TD1030 GPS Module

Product Details:

Place of Origin: China
Brand Name: CARTRACKER
Certification: CE
Model Number: G17H

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 work days
Payment Terms: Western Union, T/T
Supply Ability: 100000 PCS Per month
Contact Now
Detailed Product Description
Network: GSM GPRS GPS Band: Quad Band
Input Voltage Range: 9-90V Battery: 50 Mah Rechargeable Li-ion Battery
Vehicle Status: Support GPRS Module: MT6261



Car GPS Tracker G17H With MT6261 GSM Module And TD1030 GPS Module



1. Specification:





24 Check power off alert status POWERALM#
25 Open Low battery alert

BATALM,A,M#
A=ON
M=0~1

0 stands for only GPRS

1 stands for SMS+GPRS


26 Close Low battery alert BATALM,OFF#
27 Check Low battery alert status BATALM#
28 Open moving alert

MOVING,A,R,M#
A=ON
R=100~1000;moving radius, meter,

Default value: 300
M=0~2

0 only GPRS

1 SMS+GPRS

2 GPRS+SMS+CALL

Default value: 0


29 Close moving alert MOVING,OFF#
30 Check device moving alert status MOVING#
31 Open Overspeed alert

SPEED,A,B,C,M#
A=ON

B=5~600seconds

C=1~255km/h

M=0~1,upload method, 0 only GPRS

1 SMS+GPRS;


32 Close Overspeed alert SPEED,OFF#
33 Check Overspeed status SPEED#





GSM module: MT6261
GPS module: TD1030

built-in battery

support ACC ignition checking ,

support Relay for cutting off the power/fuel
built-in GPS antenna: 18*18*4 mm

Real time tracking.

Geo-fence, over speed alarm, main power off alarm, vibration alarm.



Demo:

www.zcbgps.com

User:zijiche

Password: 123456

Built - In Battery GPS Car Tracker G17H With MT6261 GSM / TD1030 GPS Module



  1. Details about Data Packet sent by Server to Terminal

The commonly used information packages sent by the terminal and those sent by the server will be interpreted separately.

  1.
    1. Login Message Packet



  1. Terminal Sending Data Packet to Server

The login message packet is used to be sent to the server with the terminal ID so as to confirm the established connection is normal or not.

  Description Bits Example
Login Message Packet(18 Byte) Start Bit 2 0x78 0x78
Packet Length 1 0x0D
Protocol Number 1 0x01
Terminal ID 8 0x01 0x23 0x45 0x67 0x89 0x01 0x23 0x45
Information Serial Number 2 0x00 0x01
Error Check 2 0x8C 0xDD
Stop Bit 2 0x0D 0x0





  1. Start Bit

For details see Data Packet Format section 4.1.

  1. Packet Length

For details see Data Packet Format section 4.2.

  1. Protocol Number

For details see Data Packet Format section 4.3.

  1. Terminal ID

The terminal ID applies IMEI number of 15 bits.

Example: if the IMEI is 123456789012345,

the terminal ID is 0x01 0x23 0x45 0x67 0x89 0x01 0x23 0x45.

  1. Information Serial Number

For details see Data Packet Format section 4.5.

  1. Error Check

For details see Data Packet Format section 4.6.

  1. Stop Bit

For details see Data Packet Format section 4.7.

  1. Server Responds the Data Packet
  Description Bits Example
Login Message Packet (18 Byte) Start Bit 2 0x78 0x78
Packet Length 1 0x05
Protocol Number 1 0x01
Information Serial Number 2 0x00 0x01
Error Check 2 0xD9 0xDC
Stop Bit 2 0x0D 0x0A

The response packet from the server to the terminal: the protocol number in the response packet is identical to the protocol number in the data packet sent by the terminal.

  1. Start Bit

For details see Data Packet Format section 4.1.

  1. Packet Length

For details see Data Packet Format section 4.2.

  1. Protocol Number

For details see Data Packet Format section 4.3.

  1. Information Serial Number

For details see Data Packet Format section 4.5.

  1. Error Check

For details see Data Packet Format section 4.6.

  1. Stop Bit

For details see Data Packet Format section 4.7.



  1. Examples

Examples of the login message packet sent by the terminal to the server and the response packet sent by the server to the terminal are as follows: (in the examples the terminal ID is 123456789012345.

Example of data packet sent by the terminal 78 780 0D 01 01 23 45 67 89 01 23 45 00 01 8C DD 0D 0A

Explain

0x78 0x78 0x0D 0x01 0x01 0x23 0x45 0x67 0x89 0x01 0x23 0x45 0x00 0x01 0x8C 0xDD 0x0D 0x0A
Start Bit Length Protocol No. Terminal ID Serial No. Error Check Stop Bit

Example of response packet returned by the server

78 78 05 01 00 01 D9 DC 0D 0A

Explain

0x78 0x78 0x05 0x01 0x00 0x01 0xD9 0xDC 0x0D 0x0A
Start Bit Length Protocol No. Serial No. Error Check Start Bit



  1. After receiving the login message packet, the server will return a response data packet. If the terminal doesn’t receive packet from the server within five seconds after sending the login message packet or the status information package, the current connection is regarded as an abnormal connection. The terminal will start a retransmission function for GPS tracking data, which will cause the terminal to disconnect the current GPRS connection, rebuild a new GPRS connection and send a login message packet again.



  1. If the connection is regarded to be abnormal, and the data packet as a response from the server is failed to be received three times after a connection is established and a login message packet or status information package is sent, the terminal will start schedule reboot and the scheduled time is ten minutes. Within ten minutes, if the terminal successfully connects to the server and receives the data packet responded by the server, the schedule reboot will be off and the terminal will not be rebooted; otherwise, the terminal will be rebooted automatically in ten minutes.



  1. In case of the normal connection, the terminal will send a combined information package of GPS and LBS to the server after the GPS information is changed; and the server may set a default protocol for transmission by using commands.



  1. To ensure the effectiveness of the connection, the terminal will send status information to the server at regular intervals, and the server will return response data packets to confirm the connection.

Car GPS Tracker G17H With MT6261 GSM Module And TD1030 GPS Module

  1. For the terminal which doesn’t register an IMEI number, the server will reply the terminal with a login request response and heartbeat packet response, rather than directly disconnect the connection. (If the connection is directly disconnected or the server doesn’t reply to the terminal, it will lead to a continuous reconnected by the terminal and the GPRS traffic will be consumed heavily.
