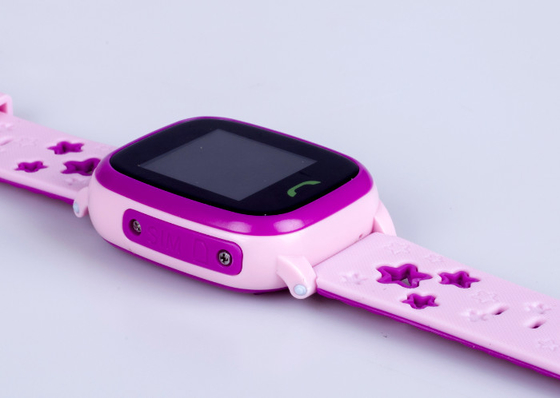

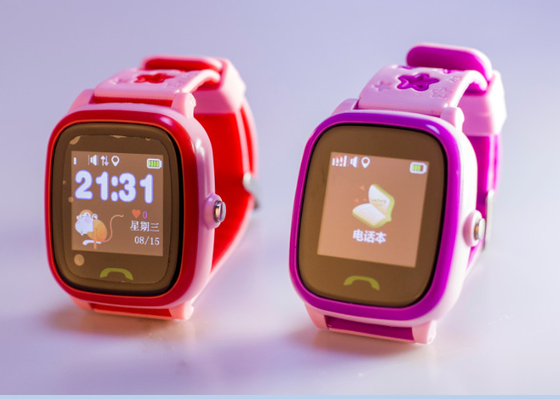

Smart GPS Tracker Watch SOS Alarm Remote Monitoring 0.96 " Display LCD For Kids

Certification
Good quality Motorcycle GPS Tracker for sales
Good quality Motorcycle GPS Tracker for sales
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

I'm Online Chat Now

Smart GPS Tracker Watch SOS Alarm Remote Monitoring 0.96 " Display LCD For Kids

China Smart GPS Tracker Watch SOS Alarm Remote Monitoring 0.96 " Display LCD For Kids supplier
Smart GPS Tracker Watch SOS Alarm Remote Monitoring 0.96 " Display LCD For Kids supplier Smart GPS Tracker Watch SOS Alarm Remote Monitoring 0.96 " Display LCD For Kids supplier Smart GPS Tracker Watch SOS Alarm Remote Monitoring 0.96 " Display LCD For Kids supplier

Large Image :  Smart GPS Tracker Watch SOS Alarm Remote Monitoring 0.96 " Display LCD For Kids

Product Details:

Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC
Model Number: CA-G02

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Network: GSM GPS Accuracy: 25m
Work Voltage: 3.7-4.5 Color: White,black,red
Shell: Plastic CPU: MTK6261
Display: 0.96 " LCD 128x64 Product Size: 54 X 34 X 12mm
Battery: 500mah Speaker: 8Ω/0.5W Speaker X 1.



GPS Positioning SOS Alarm Remote Monitoring Smart Kids GPS tracker Watch


Performance Parameters:

GPS accuracy

5 m

Time To First Fix

Reacquisition  0.1s


Work Voltage

DC  3.7-4.5V

Battery

Chargeable changeable 3.7V /1000Mah Li-ion battery

Standby work current

< 30mA

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +70°C

Humidity

5%--95% non-condensing




Product Description



Specification

GPS Positioning SOS Alarm Remote Monitoring Smart Kids GPS tracker Watch



CPU MTK6261
Display 0.96 " LCD 128x64

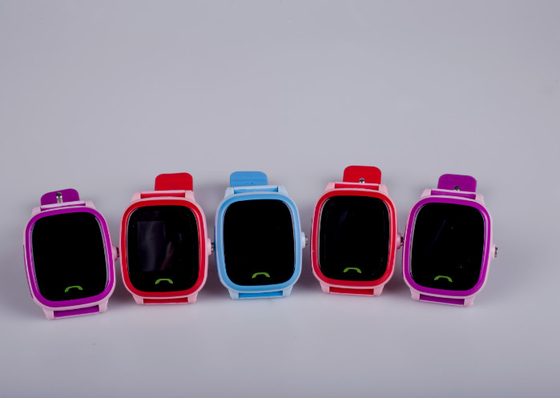

Color Pink,Green,Blue
Product size 54 X 34 X 12mm
Battery 400mAh Lithium-ion polymer battery
Speaker 8Ω/0.5W speaker x 1.
Communication GSM,GPRS,LBS
location GPS,AGPS,LBS
Phone function GSM/GPRS 850/900/1800/1900
Fuselage interface Micro USB interface*1; SIM Card slot*1
Physical buttons POWER ON_OFF Key,Call button
Telephone Support
SMS query Support
Remote monitoring Support
SOS Alarm Support
Path query Support
Step counter Support
Acceleration sensor Support
Supported OS Support Android and iOS
Net Weight 40g




Description:

  1. Key Functions:
    Operated by Mobile APP, GPRS service platform or by SMS;
    Real-time tracking & playback history trace;
    Monitor the voice secretly;
    Leave voice message or text message from APP to watch;
    The phone book and address book;
    Three working mode for power saving;
    Health monitor & evaluation;





2.2 Setup apn for access of network

SIM card in some countries need to setup apn before access to GPRS network, please contact the SIM card operator or check the website of the SIM card for the apn information.



GPS Positioning SOS Alarm Remote Monitoring Smart Kids GPS tracker Watch









Setup APN



Command Example Reply SMS
pw,123456,apn,apn name,user name,password,MCCMNC#

apnname=wap.tmobil.cl,

user name=wap, password=wap, MCC=730, MNC=02,

then the SMS will be: pw,123456,apn,wap.tmobil.cl,

wap,wap,73002#

apn:wap.tmobil.cl;user:wap;

passwork:wap;userdata:73002.



2.3 Install the app

User can check GPS tracker remotely via android/IOS app or PC,

For Android,

You can download the app from "play store" by searching "Aibeile"

For Iphone,

You can download the app from "app store" by searching "Aibeile"







2.4 Login the app

Click the icon “AIBEILE” on desktop and then login the ID and the password of the device (the default password is 123456). User can login by ID or by username, user need to contact reseller to register an username if need to login by username.


1. Hardware Introduction

1 Another highlight of GPS watches is the clear loudspeaker function. Unlike other monitors, GPS watches can talk directly to the guardian without wearing headphones, and the sound is quite clear. It not only ensures the quality of the call, but also facilitates communication, and avoids the difficulty of using the insured person due to inconvenience.
The use of the GPS watch is also very simple. It only needs to be loaded with a SIM card to bind the GPS watch to the monitoring mobile phone. The guardian can directly track the specific geographical location information of the ward by the SMS, including the address, image and latitude and longitude.
2 If you want to know the location of the monitored object, just send a text message to the GPS watch, and you can know where they are in a few seconds without checking the computer. If the timing feedback function is set in advance, the GPS watch can also periodically send information such as the specific location of the monitoring object to the mobile phone. In addition, the built-in microphone of the GPS watch can realize the remote monitoring function. When the child gets lost or encounters danger, the alarm function can be realized by the SOS button. The GPS watch will automatically transmit the alarm information to the bound mobile phone. The listening function will play its part.
In addition, GPS watches also have potential alarms, power shortages, manual shutdown and other reminders, as long as the GPS watch appears artificially removed, shut down, power shortage, etc., the system will send a warning message to the guardian; at the same time accurate electronic fence monitoring function The scope of the monitoring object can be set, and the monitored object enters and exits the specified range specified in advance. The bound mobile phone will also receive a reminder message to inform them that the monitored object may be potentially dangerous, and at the same time, can view the historical record of the monitored object. The trajectory is well aware of the actions of the monitored object.
3 Since the GPS watch has a standby time of 60-72 hours and a full-load working time of up to 10 hours, it also relieves the worries of unsustainable monitoring.
4 In addition, the GPS watch can be preset with three monitoring mobile phone numbers, so it can also be used as a tool for parents to communicate with their monitoring objects and to communicate with each other.


Chapter 3 Start to use

3.1 Live tracking

Live tracking can not only track the position of the device, but also can track the position of smart phone, user can click “+” and “-” to zoom in and zoom out the map.


Applications:

 chain shops , large-scale sales , GPS producer , large-scale shopping malls , exclusive agency ,

 GPS Positioning SOS Alarm Remote Monitoring Smart Kids GPS tracker Watch


Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not  be returned.

3.3 Geo-fence

Click on the upper right corner “+”under main menu for setup geo-fence. Then the device will lock device’s present position as center automatically, then adjust the radius distance by “+” “-” on map (default radius is 100 meters, recommended radius is 500 meters) .Save settings by clicking “Save”. The device will send message when the device is out of the range.


Product Configuration:
1. Standard configuration

1)    main device             1 pcs
2)    charger                    1 pcs
3)    Installation cables    1 set
4)    Usage instructions
5)    Warranty card
6)    Certification



Smart GPS Tracker Watch SOS Alarm Remote Monitoring 0.96 " Display LCD For KidsSmart GPS Tracker Watch SOS Alarm Remote Monitoring 0.96 " Display LCD For Kids
