Multi - Function GPS Vehicle Tracker HSZ303 RFID Reader , Fuel Sensor 3G GPS Car Tracker

China Multi - Function GPS Vehicle Tracker HSZ303 RFID Reader , Fuel Sensor 3G GPS Car Tracker supplier
Multi - Function GPS Vehicle Tracker HSZ303 RFID Reader , Fuel Sensor 3G GPS Car Tracker supplier Multi - Function GPS Vehicle Tracker HSZ303 RFID Reader , Fuel Sensor 3G GPS Car Tracker supplier Multi - Function GPS Vehicle Tracker HSZ303 RFID Reader , Fuel Sensor 3G GPS Car Tracker supplier

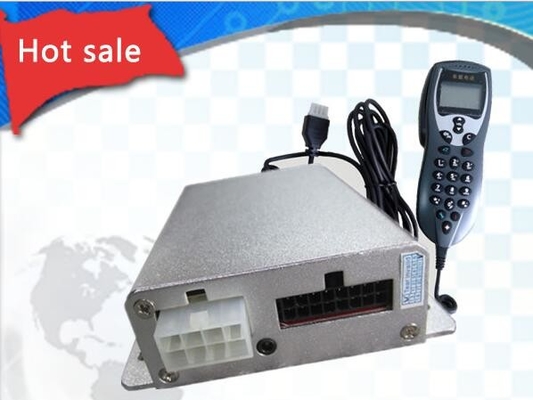

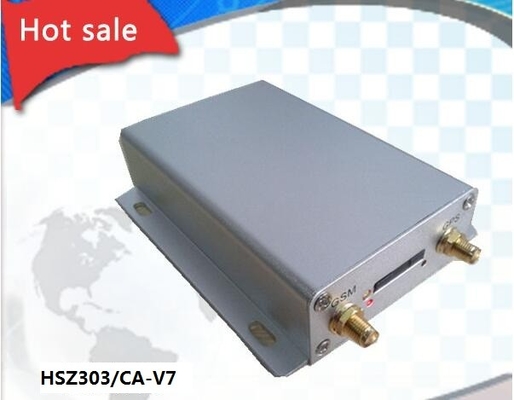

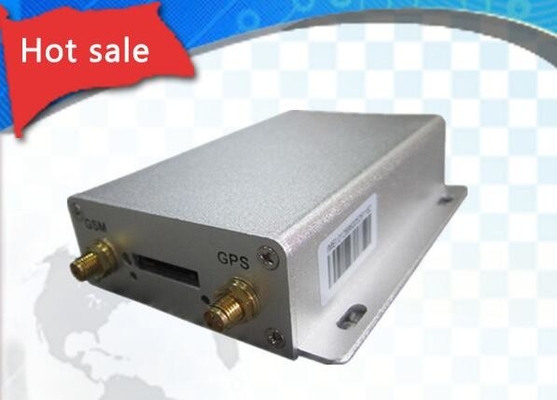

Large Image :  Multi - Function GPS Vehicle Tracker HSZ303 RFID Reader , Fuel Sensor 3G GPS Car Tracker

Product Details:

Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA-V7 / HSZ303

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Product Name: Fuel Sensor GPS Tracker Band: 850/900/1800/1900MHz
GPS Accuracy: Less Than 5m Work Voltage: DC9-36V
GPS Sensitivity: -159dBm Operation Temp.: -20°C To +70°C
Color: White Function2: Real Time Tracking
Model: HSZ303 Model 2: CA-V7



Multi-function Vehicle GPS Tracker HSZ303 RFID Reader And 3G Car GPS Tracker



  Items Parameters
  3G Module Quectel UC15
  3G Frequency WCDMA 2100MHZ
  LBS Positioning Accuracy 100-500m
  3G Antenna Built-in
  GPS Chipset U-blox 7020
  GPS Sensitivity -159 dBm
  GPS Frequency L1, 1575.42 MHZ
  Channels 50 channels examine track
  GPS Positioning Accuracy 5-10m, 2D RMS
  GPS Antenna Built-in
  Speed Accuracy 0.1m/s
  Time Accuracy Synchronize with GPS
  GPS Data WGS-84
  Hot Start <1s
  Warm Start <38s
  Max Altitude 18000m
  Max Speed 515m/s
  Gravity Acceleration <4g
  Working Voltage 8VDC~50VDC
  Working Current 50mA~160mA
  Operating Temperature -20℃—70℃
  Humidity 5%—95%
  Size 96mm × 52mm × 19mm
  Simcard Normal simcard
  Battery Rechargeable lithium polymer battery 260mAh
  Internal battery Standby >2h





Main functions

1. Realtime GPS location tracking by google maps
2. Fuel consumption monitoring and steal oil alarm
3. History track playback and Mileage statistics
4. Spy voice remotely,two ways audio communication
5. Alarm for illegal removing
6. Web tracking, android &IOS mobile APP tracking
7. Over speed alarm and limited by speed limiter
8. Engine control remotely by SMS/mobile APP/web tracking system
9. Compatible original alarm
10. Ignition/ACC detect ,door open/close remotely
11. SOS alarm by SMS/GPRS and calling
12. Temperature monitor and alarm(optional)
13. History report statistics and export into excel file

2. Main function:

1. Realtime GPS location tracking by google maps
2. Fuel consumption monitoring and steal oil alarm
3. History track playback and Mileage statistics
4. Spy voice remotely,two ways audio communication
5. Alarm for illegal removing
6. Web tracking, android &IOS mobile APP tracking
7. Over speed alarm and limited by speed limiter
8. Engine control remotely by SMS/mobile APP/web tracking system
9. Compatible original alarm
10. Ignition/ACC detect ,door open/close remotely
11. SOS alarm by SMS/GPRS and calling
12. Temperature monitor and alarm(optional)
13. History report statistics and export into excel file



Multi-function Vehicle GPS Tracker HSZ303 RFID Reader And 3G Car GPS Tracker



Q1: What's the benefits to choose a 3G GPS tracker now?

A: 1) In many countries, 2G network has closed and many more countries will shut down 2G network in the near future;
2) 3G network is faster than 2G network;
3) If you install a 2G GPS tracker now, you have to replace it with a 3G GPS tracker in the future, which increases your cost.



Q2:What is the advantage of m528G?


1) 3G network,

2) Can support Fuel sensor to monitoring the fuel consumption,

3) Can detect the car door,

4) Can support ibuttion and RFID reader to Identity identification.




Company advantages:

1.Rope is the original factory, owns experienced hardware and software engineering teams, all products are developed by ourselves, so that we can control products quality and we have the ability to do OEM.
2.Rope’s factory passed ISO 9001:2008 certificate, and Rope’s products passed CE, ROHS, FCC certificates, all products are guaranteed with high quality.
3.Rope develops the most advanced gps tracking system, hosted by cluster server, which works stable and response fast and the most important, it never goes down.
4.Rope has a professional after sales team to provide technical support real time.
5.Rope provides gps tracking solutions to all fields, such as: fuel monitoring solution, temperature monitoring solution, driver identification solution, video monitoring solution etc.
6.Rope has a responsible sales team, no matter you are starting gps business or you are already in this business, they will help you to start and expand business with good suggestions.



Multi-function Vehicle GPS Tracker HSZ303 RFID Reader And 3G Car GPS Tracker



1. 10 PIN interface
2. 2G 3G 4G module(850/900/1800/1900MHz/2100Mhz/450~1700MHz )
3. Ublox or Sirf4 GPS module
4. 5 input IO ports , 1 analog port, 2 output ports
5. Micphone&earphone interface:3.5mm
6. Communicate by TCP/UDP/HTTP
7. Inbuilt memory and backup battery
8. Position mode :GPS+LBS position
9. Size:92.5*65.5*26mm
10. Work voltage: 9V~ 60V
11. Working current:<110mA@12V,Standby current:<10mA@12V
12. Operating Temperature:-45°C ~ 75°C
13. Humidity: 5%~95%14. Optional:Fuel sensor / temperature sensor



Multi - Function GPS Vehicle Tracker HSZ303 RFID Reader , Fuel Sensor 3G GPS Car TrackerMulti - Function GPS Vehicle Tracker HSZ303 RFID Reader , Fuel Sensor 3G GPS Car Tracker
