Waterproof Container GPS Tracker Long Battery Life With 304 Stainless Steel Lock Rod

Certification
Good quality Motorcycle GPS Tracker for sales
Good quality Motorcycle GPS Tracker for sales
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

I'm Online Chat Now

Waterproof Container GPS Tracker Long Battery Life With 304 Stainless Steel Lock Rod

China Waterproof Container  GPS Tracker Long Battery Life With 304 Stainless Steel Lock Rod supplier
Waterproof Container  GPS Tracker Long Battery Life With 304 Stainless Steel Lock Rod supplier Waterproof Container  GPS Tracker Long Battery Life With 304 Stainless Steel Lock Rod supplier Waterproof Container  GPS Tracker Long Battery Life With 304 Stainless Steel Lock Rod supplier

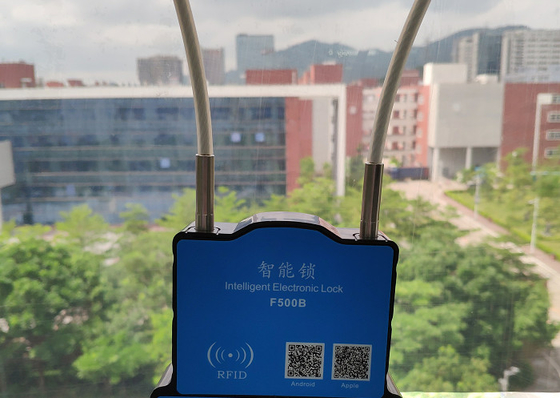

Large Image :  Waterproof Container GPS Tracker Long Battery Life With 304 Stainless Steel Lock Rod

Product Details:

Place of Origin: China
Brand Name: Cartracker
Certification: CE/ROHS/FCC/SGS
Model Number: CA-P10 FB500

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Functions4: Lock LOCK: ONE PCS
Sleep Mode: Have RFID Card: 10
SMS LOCK: SUPPORT Place Of Origin: Guangdong, China (Mainland)
Model Number: FB500 Material:: Aluminum Alloy, 304 Stainless Steel Lock Rod
Suitable For: Logistic,valued Asset Monitoring & Management Unlock Way: NFC,SMS, Remote Control, RFID Card



Waterproof Container GPS Tracker FB500 And CA-P10 Monitoring Container Status



Content





Portable, battery-powered tracking device for multiple applications. If you need to know where anything is, this is the product for you!

  • Accurate Real-Time GPS Tracking
  • iPhone and Android App included
  • $25 with No Monthly and No Yealy Fees!
  • Real-Time monitoring of vehicles, boats, RV's, bikes, property & people
  • Lasts up to 3 to 5 years based on a factory setting mode
  • Pinpoint accuracy within 6 feet
  • Unlimited User Accounts
  • Unlimited Geo-Fencing



Applications:



1) Leasing company use;

2) Vehicle anti-theft management;

3) Mortgage vehicle management;

4) Valuable goods transportation management;

5) Container leasing management;

6) Special goods and vehicle monitoring.







 Disclaimer:

  • Read this user manual carefully please. When you start use this product, then you are deemed to have read this user’s manual.
  • This Product used as assistant tool for Security only, can’t prevent all kinds of deliberately theft or malicious damage vehicles. For the safety of your assets, you still need keep necessary vigilance and security awareness after you installed this product. We do not bear responsibility to any loss except product itself. Thanks!

1. Product Introduction

Waterproof Container GPS Tracker FB500 And CA-P10 Monitoring Container Status

 Lock tracker combined with positioning, monitor and observe, the main applies to container, trucks and other transportation object location and tracking services.

AT10 lock tracker fully supports the GPRS network data transmission function, GPRS platform can be combined with software to make it more widely used in large-scale cluster monitoring, transportation management and many other fields.



5. Device Installation

Before you start install the device, Please check the product you get with the packing list, if you have any problem please contact us or distributor in time.

5.1 Prepare works

  •  lock tracker
  • Local GPRS SIM card
  • RFID card

5.2 SIM Card Installation

This device need install a SIM Card, which must have GPRS data transmission and SMS function. In default setting, this device will use around 5MB~20MB data flow, please select suitable package.





Note:

  • Do not install SIM Card in opposite way.
  • SIM Card must open GPRS data transmission function
  • Confirm the SIM Card have enough balance inside.
  • Test SIM card by cellphone to check if it can connect network
  • Please do not remove or insert SIM Card without power off, to avoid the damage to SIM card and device



5.3 RFID No. White List

  • Set by Tool “GPS Tracker Configuration Tool”.
  • Set by command(Please check at command list for details)

5.4 Lock ON

Just insert the lock wire into the hole, the lock hole will detect wire by AUTO, after been detect will be lock on, and device will beep once.

Waterproof Container GPS Tracker FB500 And CA-P10 Monitoring Container Status



5.5 Unlock

  • Unlock with RFID card

Swipe the RFID card at RFID reader position for 1-3s, when you hear the beep sound, means unlocking, after the sound end, then you can pull the lock wire out;



  • Unlock with SMS command



After you send the command, when you hear the beep sound, means unlocking, after the sound end, then you can pull the lock wire out.

6. Setting Commands (SMS)

To make the device work on GPRS mode together the control center software system, we have to set some parameters to make the device know where and how to connect the server.

The following parameters must be set before you use this device:

  • Server IP and Port (No.1 in table)

Device must have a server to upload the data to; in default it is set to our server IP and Port, if you use your own server, tell us before you place an order. The setting command is No.1, for example: AS1234*269#1,59.188.20.77,5577,0#

(In that command,”59.188.20.77” is the IP, “5577” is the port, “0” is UDP and upload self-def2.)

  • APN (No.3 in table)

Full name for APN is Access Point Name, which should be given when you buy a GPRS SIM Card. It is offered by GSM network supplier, like China Mobile public APN is CMNET.

It is consists of 3 parts: APN, APN user name, APN password. Some of the GSM operator do not have APN user name and APN password, just leave it blank.

  • Device parameters checking (No.6 in table, Optional)

Waterproof Container GPS Tracker FB500 And CA-P10 Monitoring Container Status



The following is a SMS command list, with it you can set or get information you need.

No. Name Command Reply
1 SMS SET IP,PORT AS1234*269#1,120.24.225.253,5577,0# IPPO:119.147.23.108;7777,0 OK
2 SMS SET ID AS1234*269#2,12007845# IDDO:00012345 OK
3 Set APN AS1234*269#3,CMNET,,,# APN:cmnet;OK
4 SMS restart AS1234REBOOT# GSM/restart;OK
5 SMS set back to factory AS1234*269#F# PASSWORD:1234;OK
6 SMS query status AS1234STATE#

119.147.023.108,07777,0,00001234,cmnet,,

AT10-V1.0 ,M6

7 SMS set ACC ON/OFF interval AS1234INTERVAL:x,y# Unit: seconds
8 SMS for GOOGLE link AS1234WHERE2#

http://maps.google.com/maps?hl=en&q=+

22.60548,+113.86560

9 SMS set timezone AS1234*269#I, Ex/Wx,# TIME:E/Wx OK
10 SMS set over speed AS1234SPEED:x# Unit: km/h
11 SMS set Mileage AS1234MILEAGE:x# Unit: KM
12 Change SMS password AS1234PASSWORD:4321#



8. FAQ

8.1 Show offline in Software Platform

Check if the device LED indicator shows normal. If device is not beside you, use telephone to check. Call the SIM card telephone you inserted in device, and make sure the SIM card is working.



8.2 All the devices show offline in Software Platform

Check the software platform server part, if it works normal contact with your GSM network operator. If both server and GSM network have no problem, then contact us.



8.3 Device do not get correct position

First time get position will take longer time (around 1~2 min), please drive to a wide area to get position. If it takes long time and do not get correct location, please check if the device install position is correct and no metal shield above it.



8.4 Device do not get GSM network

Make sure the SIM card has money/enabled GPRS, and was correct installed, and make sure the device not in a GSM signal blind area (such as underground garage).





Applications:


1.  Vehicle Rental / Fleet management etc



2.  Container/cargo/asset tracking



Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not  be returned.


Q1,How many minutes is the update frequency?

It is up to you, for me, roughly once a day is enough. P.S. update frequently like update every 30 seconds, continued use of GPS running in the background can dramatically decrease battery life. Just choose a best time gap you need.



Q2,I purchased this item and. Charged and set everything up properly a d it’s not working what do I do now ? It’s not working

On the KS2018 device (same manufacturer), when you start it for the first time, you have to move it around a bit so the motion can be detected. Then it will show up on the map. I just walked outside and put it in the car about 50ft. away. It sorta goes into "sleep" mode after a long period without motion. Upon "waking" it will show the last point detected, then as it moves, it will go to its current location. You can adjust this in the settings. I hope this helps.



Q3, How to use it?

1): Insert a SIM card ( 2G GSM 850 / 900/1800/1900MHz with sufficient fund) in the GPS tracker.Switch the battery button to ON outdoors.(when the blue light are stay on , you can do setting by step as below:)
2): Set admin number,APN and open GPRS to active device.
Step1. admin123456+space+your phone number
Step2. apn123456+ space+local apn content
Step3. position ( You'll received a message with coordinates, time, date.)
Step4. google(You'll get a message with google link.)
