Remote Control HDD Mobile DVR With Free CMS Software Platform SW-0002A

China Remote Control HDD Mobile DVR  With Free CMS Software Platform SW-0002A supplier
Remote Control HDD Mobile DVR  With Free CMS Software Platform SW-0002A supplier Remote Control HDD Mobile DVR  With Free CMS Software Platform SW-0002A supplier Remote Control HDD Mobile DVR  With Free CMS Software Platform SW-0002A supplier

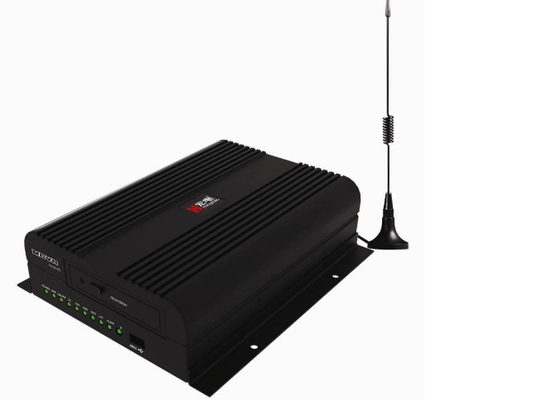

Large Image :  Remote Control HDD Mobile DVR With Free CMS Software Platform SW-0002A

Product Details:

Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: SW-0001A

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Resolution: 720P/D1/HD1/CIF, MAX:4 Channels 720P And 4 Channels D1 GPS Accuracy: 10m
CPU: Hi Silicon Power Supply: Car Battery
Power Output: DC12V/3A Storage Interface: SD
CAMERA: CCD/CMOS PAL: 100f/s , CCIR625 Line,50field;
TSCN: 120f/s, CCIR525 Line,60field CIF: : 256Kbps ~ 1.5Mbps
HD1: : 600Kbps ~ 2.5Mbps D1: : 800Kbps ~ 3Mbps
720P: : 4Mbps-6Mbps



SW-0002A Original Manufacture Mobile DVR With Free CMS Software Platform



Performance Parameters:



Item

Parameter





GUI

Graphical User Interface

Setup system parameters with the remote control.

Video Record System

Video Input

4CH 720P AHD input/SD input/mixed input,aviation connector, 1.0Vp-p, 75Ω

Video Onput

2CH CVBS+ VGA output for optional, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view

Preview

Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview

Resolution

720P/D1/HD1/CIF, MAX:4 channels 720P and 4 channels D1

Image Quality

0-7 levels, 0 is the highest level.

Video Standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;

HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;

D1:  800Kbps ~ 3Mbps, 8 level video quality optional;

720P: 4Mbps-6Mbps, multi level video quality optional





Audio

Audio Input

4CH Aviation Plug Input

Audio Output

2CH,headphone connect at front panel, BNC Connect on Back panel

Compression

G.726 compression, 8KB/s speed

Alarm Input

7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage

Alarm Output

2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off

Interface

3CH RS232, POS/Fuel Sensor/LED Advertisement Connection



2CH 485 Interface,Connect PTZ Camera

2CH CAN interface

Wireless Transmission

Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE;

Built in 4G module optional, TDD-LTE, FDD-LTE

GPS Position

Support Built GPS/BD Module



HDD

Max 2.5”  2TB HDD







Functional Features:

  1. 1.H.264 video compression, multi code stream.

    2.Support 4CH 720P HD real-time video inputs. Also, support 4CH analog cameras inputs or compound inputs for 2CH HD cameras and 2CH analog cameras.

    3.1CH VGA output is optional.

    4.With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite, SD card data loss and SD card couldn’t be found, keep the data completed and stable.

    5.8-36V wide voltage power supply, super low power consumption. With overload/ undervoltage/ shortcircuit/ reversing protection, support all vehicles.

    6.Support dual SD cards, at maximum 256G for single SD card

    7.With watchdog abnormal restart protection function, it can better protect the machine and video.

    8.Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).

    9.Various video recording modes to meet different demands, such as automatic recording, manual recording, alarm recording, etc.

    10.Support 4CH alarming inputs and 1CH independent alarm input.

    11.Optional for 1CH RS232 Serial port or 1CH RS485 extension.

    12.Support GPS/G-Sensor.

    13.Support remote operation and monitoring by 3G.

    14.Support Wifi and automatic data download.

    15.Support ministry of communications agreement, support SMS remote configuration and equipment control.

    16.Support voice broadcast, intercom and text schedule dispatch.

    17.Support fuel sensor, temperature sensor, POS, LED advertising screen.

    18.Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.

    19.With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.

    20.Support all vehicles, including bus, taxi, truck, school bus, etc.

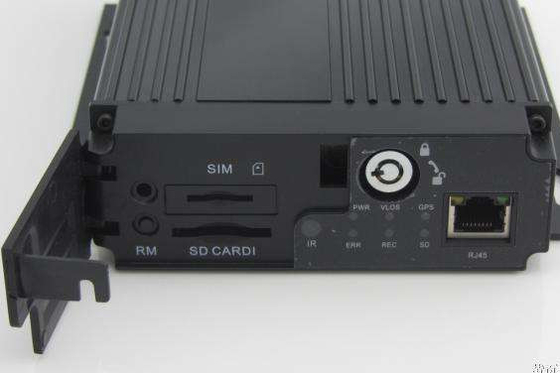

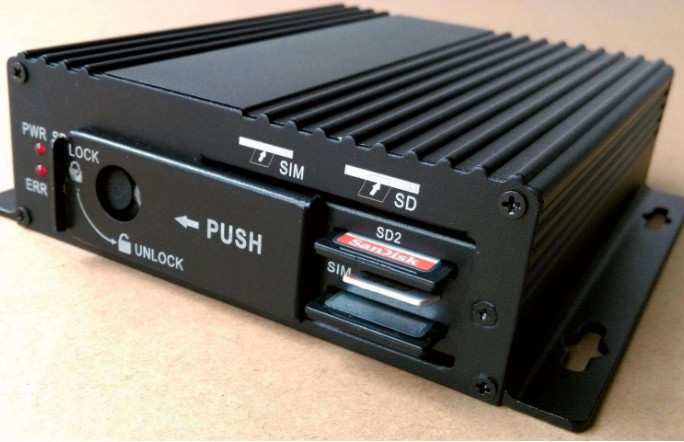

Detail Pictures:



Warranty Policy
We provide two-year warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, we will repair or replace it by free of charge.
1. If our customers could repair the products by themselves locally, we will supply necessary spare parts.
2. If the customers couldn't repair the products, the products will need to be sent back to us, and we repair and bear 50% freight charge. All of our products are 100% passed strictly quality inspection before delivery.



Applications:

  1. Vehicle,Truck,Bus,School Bus,etc.
  2. Real-time video  monitoring.
  3. GPS tracking.
  4. Assets Tracking.
  5. Fleet Management.



Gurantee:



1. All of our product is free to use the Tracking service server in 24 hours each day

2. All of our product there is a 2 year quanlity assurance.

3. Sample fee will not  be returned.





Product Configuration:



    1. Standard configuration

  1. Device host       1pcs;
  2. Power  Cables    1pcs;
  3. I/O Cables        1pcs;
  4. AV Cables         1pcs;
  5. Remote control     1pcs;
  6.  3G/4G  Antenna   1pcs;
  7.  GPS Antenna       1pcs;
  8. CD( User manual)   1pcs;

    2. Optional configuration:

  1. camera
  2. lcd display
  3. SD card
  4. hard disc
  5. fuel sensor
  6. temperature sensor  etc..
Our Services

1. MOQ : 1 piece.

2. Warrany : 3 years.

3. Low MOQ and Fast Delivery.

4. Technical Support : One-to-One.

5. Free upgrade on software.

6. Supply OEM sevices based on customized requirements.
