3G HD 720p Car Mobile DVR , 4ch Dual SD Card Car DVR Recorder SW - 0001A

I'm Online Chat Now
Certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

3G HD 720p Car Mobile DVR , 4ch Dual SD Card Car DVR Recorder SW - 0001A

3G HD 720p Car Mobile DVR , 4ch Dual SD Card Car DVR Recorder SW - 0001A
3G HD 720p Car Mobile DVR , 4ch Dual SD Card Car DVR Recorder SW - 0001A 3G HD 720p Car Mobile DVR , 4ch Dual SD Card Car DVR Recorder SW - 0001A 3G HD 720p Car Mobile DVR , 4ch Dual SD Card Car DVR Recorder SW - 0001A

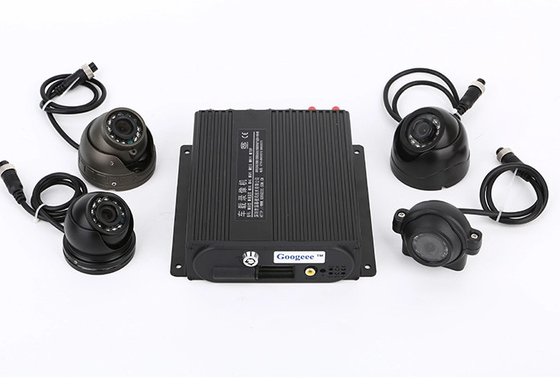

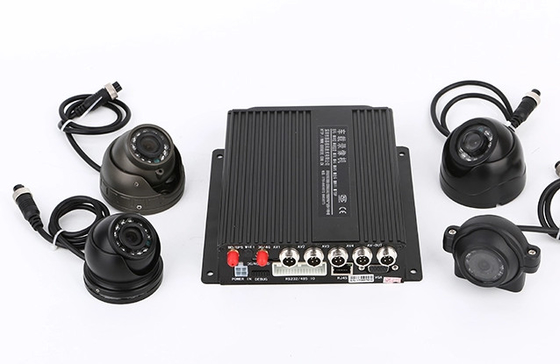

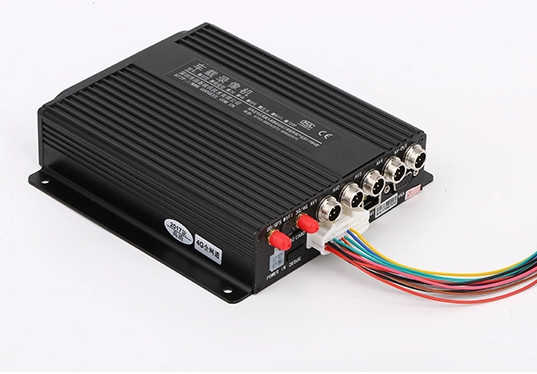

Large Image :  3G HD 720p Car Mobile DVR , 4ch Dual SD Card Car DVR Recorder SW - 0001A Get Best Price

Product Details:
Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA-SD210
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Detailed Product Description
MDVR Network: 3G 4G WIFI Work Temperature: -20℃~+70℃
GPS Sensitivity: -161dBm Shell: Metal
Storage: 128G SD Card Alarm Output: 3 Alarm Outputs
Language: Chinese / English Video Input: 4 Channels
Video Output: 1 Channel Video Display: Single Picture, 4 Pictures
Signal System: PAL / NTSC Image Compression: H.264 Main Profile, 100 Frame D1/sec,720P
High Light:

automotive dvr

,

car video recorder



SW-0001A 4ch Dual SD Card Mobile 3g h.264 HD 720p Vehicle Mobile DVR



Product Description

Function Performance
System Language Chinese / English
Operation Interface Graphical menu operation interface(OSD menu)
Video Video input 4 channels
Video output 1 channel
Video display Single picture, 4 pictures
Signal system PAL / NTSC
Image compression H.264 Main profile, 100 frame D1/sec,720P
Audio Audio input 4 channels
Audio output 1 channel
Record format Synchronized video & audio recording

Recording &

Storage

Image resolution CIF/D1/720P
Video coding ISO14496-10
Video bit rate

CIF: 128Kbps~1536Kbps , D1: 256Kbps ~2048Kbps ,

720P: 512Kbps ~ 5120Kbps

Audio bit rate 8KB/s
Storage Support 1-2 SD card storage, support Max 256GB SDHC card
Alarm Alarm input

10 channels, alarm activated by low voltage (1-2channels(Built-in Optional)

3-10channels(Optional)

Alarm output 1 channel, 12V output

Communication

Interface

RS232 interface RS232 interface X 1(Optional)
RS485 interface RS485 interface X1 (Optional)
RJ45 network interface RJ45 network interface X 1(Optional)
VGA VGA X 1(Optional)

Wireless

communication

3G Built-in 3G(WCDMA/EVDO) optional module
4G Built-in 4G (FDD/TDD-LTE,WCDMA,TD-SCDMA,
GSM,EVDO,CDMA) optional module to match local cellular carrier
WiFi Built-in Wi-Fi 802.11 b/g/n (2.4Ghz) (Optional module)
GPS Built-in GPS module. Real-time geographic coordinates, speed information(Optional module)

Supporting

Software

PC playback Video files playback in PC with analysis of the vehicle status
Software
Upgrade
Upgrade through SD card
Size 141*150*41mm
Package 36PCS/CTN
Accessories RCU*1pcs,Power Cable*1pcs,Key*1Set
Gift box size 275*180*60mm
CTN Size 490mm*485*620mm
G.W(Gift box) 1.05KGS






What is an HD car video recorder: definition can be split into HD and car video recorders; HD refers to the resolution of the output video, car video recorders are also known as car cameras; car DVR; English abbreviation is MDVR, car video recorder is a car video surveillance system An important part of the core, it can be said that vehicle video surveillance is a video surveillance link composed of high-definition onboard cameras. SD card MDVR uses SD card as storage medium. Generally, four channels of output video are used, and a single card can support 128G. There are also analog car video recorders corresponding to high-definition on-vehicle video recorders, and analog and substandard definition analog car video recorders. High-definition analog, 720P car video recorder that we talk about the million HD car video recorder.


SD Card MDVR Features
4-channel video on-vehicle monitoring input can be connected with analog camera and AHD camera, 1 way multi-screen output, can be connected to the car display screen host playback review. II: The video formats are CIF, D1, 720P, and 960P. III: MDVR pickup pickup machine has voice input function. IV;Provide professional security video player, easy to operate. V; can search video files by time according to the recording direction. VI; There is a time and date recorder in the recording screen that can be viewed on the screen of the monitoring screen. VII; Wide voltage design 8~36V. VIII; video mode can be set to start the boot, boot at a specific time, alarm boot. IX; SD card software upgrades. X; All aluminum alloy shell design, good heat



Video Online Checking:









MDVR Factory:







Installation Picture:





MDVR Certificate:







MDVR FAQ:



 Question 1: How can we buy your mobile DVR product?



 Answer 1 : You can pay it via T/T, paypal,western union,After we receive your payment, we will send



                   goods to you as soon as possible.



Question 2: Can we use our own server?



Answer 2: Yes,we can provide platform software to you. you only need to buy one server.



Question 3: Can we use 128G SD Card?



Answer 3: Yes, of course.



Question 4: Can we use 1080P camera?



Answer 4: Yes, but first you also need to buy 1080P SD card mobile product.



3G HD 720p Car Mobile DVR , 4ch Dual SD Card Car DVR Recorder SW - 0001A 03G HD 720p Car Mobile DVR , 4ch Dual SD Card Car DVR Recorder SW - 0001A 1
