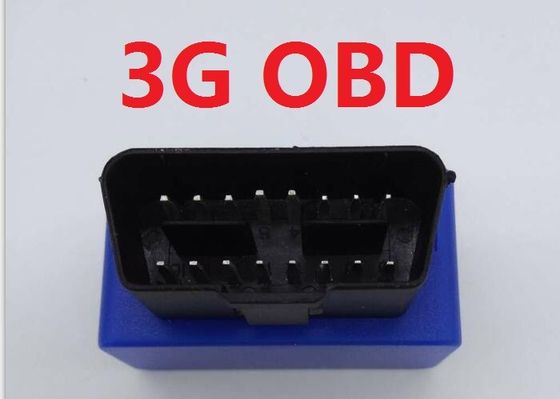

Vehicles / Car 3G GPS Tracker OBD With Rechargeable 3.7V 350mAh Li-ion Battery

Certification
Good quality Motorcycle GPS Tracker for sales
Good quality Motorcycle GPS Tracker for sales
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

I'm Online Chat Now

Vehicles / Car 3G GPS Tracker OBD With Rechargeable 3.7V 350mAh Li-ion Battery

China Vehicles / Car 3G GPS Tracker OBD With Rechargeable 3.7V 350mAh Li-ion Battery supplier
Vehicles / Car 3G GPS Tracker OBD With Rechargeable 3.7V 350mAh Li-ion Battery supplier Vehicles / Car 3G GPS Tracker OBD With Rechargeable 3.7V 350mAh Li-ion Battery supplier Vehicles / Car 3G GPS Tracker OBD With Rechargeable 3.7V 350mAh Li-ion Battery supplier Vehicles / Car 3G GPS Tracker OBD With Rechargeable 3.7V 350mAh Li-ion Battery supplier

Large Image :  Vehicles / Car 3G GPS Tracker OBD With Rechargeable 3.7V 350mAh Li-ion Battery

Product Details:

Place of Origin: China
Brand Name: CAX
Certification: CE
Model Number: CA-OBD2

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 work days
Payment Terms: Western Union, T/T
Supply Ability: 100000 PCS Per month
Contact Now
Detailed Product Description
Color: Blue Network: 3G/4G
OBD: Diagnostic BMW: Support
BF190-E: Aisa/Europe/Australia Frequency: 700/1700/1900MHz
BF190-A: North American

Vehicles / Car 3G GPS Tracker OBD With Rechargeable 3.7V 350mAh Li-ion Battery





Frequency & Support region

BF190-A (North American)
700/1700/1900MHz@FDD LTE
850/1700/1900MHz@UMTS

BF190-E: (Aisa/Europe/Australia)
800/850/900/1800/2100/2600MHz@FDD LTE
850/900/2100MHz@UMTS
900/1800MHz@GSM


Package

Dimentions: 67*50*25mm
Net weight:80g
Box size: 166x113x40mm
Gross weight:169g

30pcs/Carton
Carton size: 55x31x42(cm)
Weight: 17kg/Carton

Standard Accessories:
1* BF190 OBD Tracker
1* User Manual



Working voltage: 10-60VDC/2.0A
Backup Battery: Rechargeable 3.7V 350mAh Li-ion battery
Dimension (main unit) 70*51*25(mm)
Weight (main unit) 55g
GSM frequency 900Mhz/2100Mhz@UMTS
or 850Mhz/1900Mhz@UMTS
or 850Mhz/2100Mhz@UMTS
GPS chipset U-blox7 chipset
GPS sensibility -162dBm
GPS receiving channel 56 channels
Working frequencies 1575.42Mhz C/A (GPS)
Positioning accuracy ≤10m (wide-open area)
Speed accuracy ≤0.1 M/S (wide-open area)
Positioning mode Auto 2D/3D
Hot start 1 sec., average
Warm start 2 sec., average
Cold start 40 sec., average
Working temperature -20 ~ 85°C
Humidity 0~95%
Interface 5 inputs, 5 outputs, 4 A/D ports, MIC & Speaker port, camera port, RS232 port.


Technical Parameters:



 1. GSM: 850/900/1800/1900 Quad band.

 2. GPRS: Class12. TCP/IP

 3. Working Voltage: DC12V

 4. Working Current: about 22mA( DC12V)

 5. GPS Locating Time: Cold start about 38s,Warm start about 32s, Hot start about 2s

 6. GPS Precision: 10m

 7. Working temperature: -20 degree to +70 degree

 8. Working humidity: 20%-80%RH

 9. Measurement: 67mm*45mm*25mm


Picture:



Product Description



Smart engine ON/OFF status detection without ACC connection;
Extreme power save design;
USB parameter configuration;
Detection on vehicle voltage & backup battery's volume;
AGPS function with fast GPS positioning;
Support RFID & wireless immobilizer (optional);
Plug & play, anti-tamper design;



Alarm Types:

Vibration Alarm
In arming status, if the car is vibrated, it will send out alarm SMS.
Power Failure Alarm

In arming status, if the battery is cut off, it will send out alarm SMS.
Engine ON Alarm
In arming status, if the car's engine is ON, it will send out alarm SMS and call the preset phone.
Movement Alarm
In arming status, the movement alert is enabled automatically. Once the car moves away from the point for 100 meters, it will send out alarm SMS and call the preset phone.
GEO-Fence Alarm

Once the Geo-fence is activated, if the car oversteps the boundary, it will send out alarm SMS.
Over-speed Alarm

If the car runs over the speed limitation continuously for 3 minutes, it will send out alarm SMS.
Crash Alarm(optional)
If there is crash, the crash sensor will detect it and send out alarm.



NT-183WE is an OBD GPS dongle which provide positioning, tracking , car status checking and driving behavior analyzing function. With its plug and play design, the dongle can easily connect with OBD port to acquire real time data , such as car position, car status, car DTC, driving behavior data. And all these information will be upload via GSM/GPRS to server for further analysis, statistics , storage and more extensive application



Technical Specification

Mechanical Parameter Dimension 62mm(Length) x 50mm(Width) x 25mm(Height)
  Weight 100g
Interface

OBD interface: Support A/B Type

Configuration interface :Micro-USB

SOS Button interface:MMCX

Support Diagnostic Protocol

Passenger:ISO15031 and Dedicated protocol of Japanese vehicleTOYOTA,NISSAN,MAZDA,HONDA,MITSUBISHI,SUBARU,

SUZUKI,DAIHATSU) Commercial vehicle:J1939,J1708 and Dedicated protocol of MITSUBISHI,HINO,ISUZU



Power Working Voltage 8-32VDC
  Working current

Max:<120mA 13.8DC,<80mA 27.6VDC

Average( sleeping mode):<10mA 12/24VDC

  Battery 3.7V/100mAH

GPS Performance(GPS performance)

Receiver Channels:56

reacquisition Sensitivity:-160dBm

position accuracy:2.5m CEP

Cold Start:30s

Hot Start:1s

GLONASS Performance(GLONASS performance)

Receiver Channels:56

reacquisition Sensitivity:-156dBm

position accuracy:4.0m CEP

Cold Start:32s

Hot Start:1s

Actual Measurement 3D Positioning time

Cold Start:30s~120s

Hot Start:3s~15s

Mode of data transmission TCP/SMS
GSM/GPRS Working frequency HSPA 900/2100mHZ; GSM.GPRS 850/900/1800/1900MHz
3-axis accelerator +/-16g
Storage 8M BYTE FLASH
Indication light 3G/GPS /OBD
Buzzer System state/Alarm indication












Applications :



4S shop , car company , truck company , motorcycle company , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , car repair shop,taxi company .





Gurantee:



1. All of our product is free to use the Tracking service server in 24 hours each day

2. All of our product there is a 2 year quanlity assurance.





Product Configuration:



1. Standard configuration

  1. GPS Tracker Device
  2. User manual

Vehicles / Car 3G GPS Tracker OBD With Rechargeable 3.7V 350mAh Li-ion BatteryVehicles / Car 3G GPS Tracker OBD With Rechargeable 3.7V 350mAh Li-ion Battery
