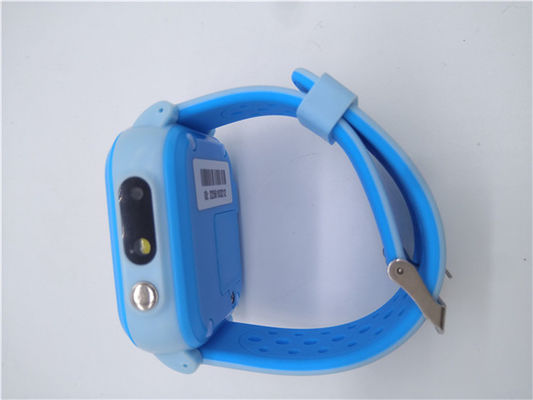

LCD Screen Portable GPS Tracker Watch Pocket Kids Phone Anti Lost Watch

Certification
Good quality Motorcycle GPS Tracker for sales
Good quality Motorcycle GPS Tracker for sales
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

I'm Online Chat Now

LCD Screen Portable GPS Tracker Watch Pocket Kids Phone Anti Lost Watch

China LCD Screen Portable GPS Tracker Watch Pocket Kids Phone Anti Lost Watch supplier
LCD Screen Portable GPS Tracker Watch Pocket Kids Phone Anti Lost Watch supplier LCD Screen Portable GPS Tracker Watch Pocket Kids Phone Anti Lost Watch supplier LCD Screen Portable GPS Tracker Watch Pocket Kids Phone Anti Lost Watch supplier

Large Image :  LCD Screen Portable GPS Tracker Watch Pocket Kids Phone Anti Lost Watch

Product Details:

Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC
Model Number: CA-P0

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Network: GSM GPS Chip: MTK6260
GPS Accuracy: 25m Work Voltage: 3.7-4.5
Dim: 40*40*8mm Color: White,black,red
Shell: Plastic



LCD Screen GPS Tracker Watch Pocket Kids Phone Anti Lost Watch


Performance Parameters:

GPS accuracy

5 m

Time To First Fix

Reacquisition  0.1s


Work Voltage

DC  3.7-4.5V

Battery

Chargeable changeable 3.7V /1000Mah Li-ion battery

Standby work current

< 30mA

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +70°C

Humidity

5%--95% non-condensing



Description:

  1. Key Functions:
    Operated by Mobile APP, GPRS service platform or by SMS;
    Real-time tracking & playback history trace;
    Monitor the voice secretly;
    Leave voice message or text message from APP to watch;
    The phone book and address book;
    Three working mode for power saving;
    Health monitor & evaluation;





2.2 Setup apn for access of network

SIM card in some countries need to setup apn before access to GPRS network, please contact the SIM card operator or check the website of the SIM card for the apn information.









Setup APN



Command Example Reply SMS
pw,123456,apn,apn name,user name,password,MCCMNC#

apnname=wap.tmobil.cl,

user name=wap, password=wap, MCC=730, MNC=02,

then the SMS will be: pw,123456,apn,wap.tmobil.cl,

wap,wap,73002#

apn:wap.tmobil.cl;user:wap;

passwork:wap;userdata:73002.



2.3 Install the app

User can check GPS tracker remotely via android/IOS app or PC,

For Android,

You can download the app from "play store" by searching "Aibeile"

For Iphone,

You can download the app from "app store" by searching "Aibeile"







2.4 Login the app

Click the icon “AIBEILE” on desktop and then login the ID and the password of the device (the default password is 123456). User can login by ID or by username, user need to contact reseller to register an username if need to login by username.


1. Hardware Introduction

1.1. Buy one Sim Card and confirm the following details:   This sim card can be used to make call, send SMS, and gets GPRS function.    This sim card gets enough money for GPS tracking service.    This sim card gets caller ID display function, no call forwarding.    The SMS format should be text format, not PDU format. (Most countries use text format for SMS)
1.2. Please use the screw driver to open the GPS tracker, and Insert the sim card with the correct direction (golden part   faces down).
1.3 The first time you use this tracker, please charge the GPS tracker 12 hours, so that the battery can get a good performance, Normally, it only takes 3-5 hours to charge battery fully. Because the battery in tracker is li battery, so don’t squeeze it illegally, or put it into fire. The normal standby time of battery is 100 hours.
1.4. Please use the power charger in standard kit to charge our GPS tracker.
2. Device Activation.
2.1 Bring GPS tracker to open air, and press power switch for 3 seconds, then you can see the indication light will be on. Then GPS tracker will start to search GSM and GPS signal automatically. 2.2. According to the light status, user can judge the GPS tracker status. Once the GPS signal is ready, you can set all functions in user manual.

3. Administrator number setting(Master number setting)

3.1 How to add admin phone number:  (Default factory setting password:123456)  Instruction: admin+password+space+country code+ GSM number For example: admin123456 08615899778447 Then system will reply a SMS: admin ok Notice: User can only use admin number to set SOS number in, furthermore, never cancel the space and country code, the first time you use this tracker, please change the password by the following instruction: password+old 123456+space+new 123456  For example:password123456 666888 Once you change the password, you can receive a SMS from tracker “password ok”

3.2 How to delete admin phone number: Instruction: noadmin+password+space+country code+ GSM number    3.3  SOS alarm phone number setting Instruction: sos+password+space+country code+sos phone number      For example: if your send SMS instruction: sos123456 08615899778447 to GPS tracker, GPS tracker will send you a SMS back with “SOS number ok”, in future, if you long press SOS button for 3 seconds. GPS tracker will send a SOS SMS to all SOS phone number.
3.3.1 Set SOS phone number(support 2 group SOS phone numbers) Instruction:
LED light status Normally on without flash Charging Flash Low battery Off Full battery

4. Set GMT Time zone number: Instruction: time zone+123456+space+GMT No. For example, Finland is GMT+2 zone, so user can set: timezone123456 +2. Then GPS tracker will be adjusted to be the right time zone “Time OK”
5. Inquire location
 Inquire Location by call    If you have set an admin phone number, you can call GPS tracker and get location SMS, but phone number which has not been registered can’t inquire location SMS. If you haven’t set admin phone number, any phone number can be used to inquire location SMS.       When you use admin number to call GPS tracker, the GPS tracker will remind you “ the phone number you call is busy”, then you can hang up the call, the GPS tracker will send a location SMS to you automatically soon like follow:




Chapter 3 Start to use

3.1 Live tracking

Live tracking can not only track the position of the device, but also can track the position of smart phone, user can click “+” and “-” to zoom in and zoom out the map.


Applications:

 chain shops , large-scale sales , GPS producer , large-scale shopping malls , exclusive agency ,


Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not  be returned.


3.3 Geo-fence

Click on the upper right corner “+”under main menu for setup geo-fence. Then the device will lock device’s present position as center automatically, then adjust the radius distance by “+” “-” on map (default radius is 100 meters, recommended radius is 500 meters) .Save settings by clicking “Save”. The device will send message when the device is out of the range.


Product Configuration:
1. Standard configuration

1)    main device             1 pcs
2)    charger                    1 pcs
3)    Installation cables    1 set
4)    Usage instructions
5)    Warranty card
6)    Certification

LCD Screen Portable GPS Tracker Watch Pocket Kids Phone Anti Lost WatchLCD Screen Portable GPS Tracker Watch Pocket Kids Phone Anti Lost Watch
