Black High Sensitive Auto Gps Tracking Device Built - in GPS And GSM Antenna

Black High Sensitive Auto Gps Tracking Device Built - in GPS And GSM Antenna
Black High Sensitive Auto Gps Tracking Device Built - in GPS And GSM Antenna Black High Sensitive Auto Gps Tracking Device Built - in GPS And GSM Antenna

Large Image :  Black High Sensitive Auto Gps Tracking Device Built - in GPS And GSM Antenna Get Best Price

Product Details:
Place of Origin: China
Brand Name: CAX
Certification: CE
Model Number: CA-V2C
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 work days
Payment Terms: Western Union, T/T
Supply Ability: 100000 PCS Per month
Detailed Product Description
Model Name: GPS Tracker Device Function1: Built-in Antenna
Function2: Control Engineer Function3: High Sensitive
Network: GPRS GSM Band: 850/900/1800/1900MHz
Color: Black Gross Weight: 0.15kg
Box Size: 14.5*9.2*3.6cm Application: Car Truck Taxi
Certification: CE Rosh Tracking Way: Mobile Phone And Computer
High Light:

vehicle gps tracking device

,

car gps tracker device


Black High Sensitive Auto Gps Tracking Device Built - in GPS And GSM Antenna

Main Functions:

NO.Function
1Real time Track position
2mobile phone track the routes
3SMS Message command controls the engine on or off
4Motorbike anti-theft alarm


Feature Description:

NO.FeatureDescrption
1GPS PositioningAny time you can track the position via mobile phone or computer. and the device always send the currrent position data to server.
2Playback Routes the device send current GPS position data to server each 20seconds. then they will be in server for more than 2 months. user can check the routes via history track function.
3Setting Function Via SMSSetting function of device via SMS and check location via SMS.
4Ignition DetectionGreen line can detect the voltage value of vehicle iginition line. the status will be in the GPS data and stored in server.
5Vibration AlarmAfter setting,Device will send message and call user if theft shock the car or drive the car away.
6Overspeed AlarmWhen speed is over than the set speed, device will send message to user.
7Shut Off Engine

 When you want to stop the vehicle,you can send the SMS command then the device will control the engine off via relay.

8Built-in AntennaBuilt-in high tech of GPS/GSM antenna for easy installation.


Application:
1. Fleet management
2. Motor and bike
3. Rental Car Company
4. Taxi Company
5. Insurance company

Parameters:

Dimension67(L) x 33.8(W) x 11.5(H) mm
Gross Weight0.15kg
GPRSClass12,TCP/IP
GPS Sensitivity-160dBm
GSM Frequency850/900/1800/1900Mhz
Operation VoltageDC9V To 100V
Position Accuracy10meters
GSM/GPS AntennaBuilt-in
Data TransmitTCP,SMS
Non-movement DetectionMovement Alert based on built-in 3D
Mileage ReportTrack by time/distance interval power off



LED:


GPS LED Blue flash stands for GSM signal is normal
GSM LED Green flash stands for GPS signal is normal
Power LED Red stands for power status.



Steps of installation:

1. Prepare one 2G GSM SIM Card and open GPRS function.
2. Open the back cover,insert a SIM card to SIM Card Slot.
3. Turn on the battery switch and three LED will be on.
3. Connect the power cable with the interface of device. Now theree LED lights will lighting. Make sure the
    receiving side face up, without any metal object shelter. The LED lights will glashing after 1 to 5mins.
    It shows working normally.
4. Close the back cover.
5. Please ask professional technical to connect wires and install to the vehicle. After correct installation.
    the REd LED will falshing, 1 min. Later the Blue Led will falshing too. That shows installing completely.


SMS Commands:


Setting the IP of Server #6666#IP#119.23.233.52#9891#
Checking the IP #6666#IP?#
Getting Location #6666#GL#
Opening voice monitoring function#6666#OM#
Restart device #6666#reset#

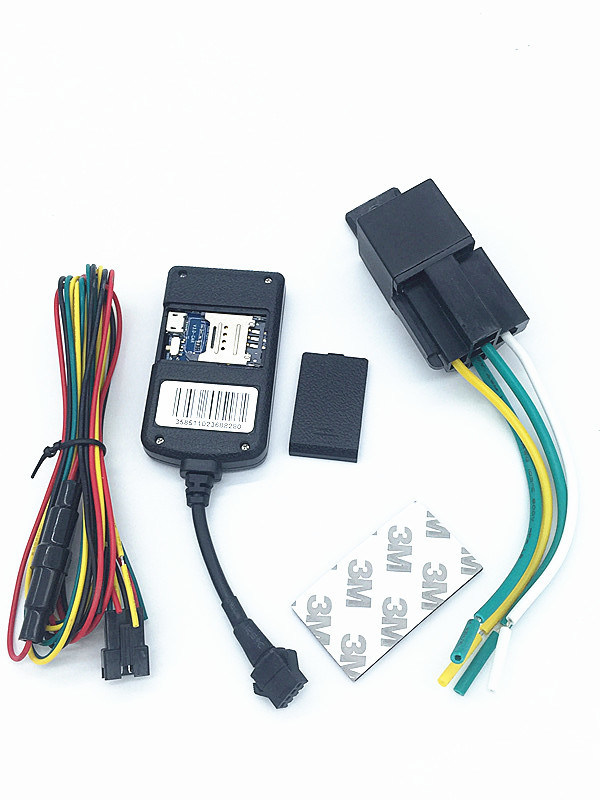

Picture:



Black High Sensitive Auto Gps Tracking Device Built - in GPS And GSM Antenna 0

Black High Sensitive Auto Gps Tracking Device Built - in GPS And GSM Antenna 1
