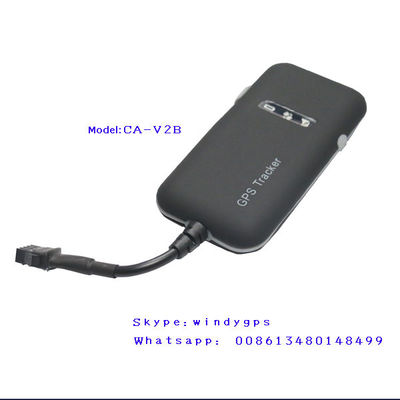

ACC Ignition Alert Gps Vehicle Tracking System , Real Time Micro Gps Locator For Car
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Car GPS Tracker | Protocol: | GT06 Protocl |
|---|---|---|---|
| Feature 1: | Remote Cut Off Engine | Feature 2: | Support ACC Ignition Alert |
| Work Voltage: | DC9.5 To DC39.9V | Dim.: | 90*45*13.8mm(L*W*H) |
| Weight: | 40g | ||
| High Light: | car gps locator,automotive gps tracker |
||
Car GPS Tracker GT06 Protocol Vehicle GPS Tracking System ACC Ignition Alert
Performance Parameters:
|
Content |
Specs. |
| Product Name | Car GPS Tracker |
|
Dim. |
90*45*13.8mm(L*W*H) |
| Application | Vehicle,Truck, Car |
|
Weight |
40g |
| Protocol | GT02 Protocol |
|
Network |
GSM/GPRS/2G GPS |
|
Band |
900/1800Mhz/850/1900MhZ |
|
GPS chip |
MTK Chip |
|
GPS sensitivity |
-159dBm |
|
GPS accuracy |
High Accuracy |
|
voltage input |
9.5－39.9DCV |
|
Working currency |
20mA/12V |
|
Storage Temp. |
-40°C to +85°C |
| Functions2 | Remote cut off engine |
|
Operation Temp. |
-20°C to +70°C |
|
Humidity |
20%--80% RH |
Car GPS Tracker GT06 Protocol Vehicle GPS Tracking System ACC Ignition Alert
Feature Description:
- Mini Car GPS Tracking System.
- Support 3 tracking ways: Mobile Phone app; Website platform; Text SMS.
- Support Geo-fence alarm
- Anti - theft Real time tracking and history tracking playback.
- Car GPS Tracker Support Remote cut off engine (Optional, need a relay)
- ACC Check And Vibration alarm
- GPS Track Solution
- Built-in vibration sensor ,burglar alarm
- Blind Area Replay
- ACC Ignition alert
Car GPS Tracker GT06 Protocol Vehicle GPS Tracking System ACC Ignition Alert
Method of Installation
1.Preparation before installation
1.1 Open the packing box to check whether the type of GPS tracking device is correct and whether the accessories are included, or else please contact your distributor.
1.2 Choose SIM card: each device needs to insert a GSM SIM card.
Please refer to the distributor’s suggestions to choose the SIM card.
1.3 Installing SIM card.
LED Indicator:
1 Red Led-( Power status indicator)
| Led Status | Meaning |
| Quick Flashing | Working normally (working by backup car battery) |
| Slow Flashing | Working normally (working under battery of device) the device will change to work by own battery while backup battery had been cut down. And it will alarm. |
| bright status: | Device Error |
2 Blue Led Light-( GSM status indicator)
| Led Status | Meaning |
| Quick Flashing | Working normally, Uploading GPRS data to platform server. |
| Slow Flashing | Working normally, Receive GSM signal normally |
| Continuously in bright status | No GSM signal |
3.3 Green Led Light – (GPS status Indicator)
| Led Status | Meaning |
| Flashing | Working normally. GPS located. |
| Continuously in bright state | Searching GPS signal |
Applications :
4s shop , car company , truck company , motorcycle company, exclusive agency, chain shops , large-scale sales , car repair shop, taxi company, GPS Tracking.
Gurantee:
1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
Product Configuration:
1. Standard configuration
- CA-V2B Device 1pcs
- Power Cable (4 Line) 1pcs
- Color Box 1pcs
2. Optional accessories
1. Relay DC12V
2. Rechargeable Li-ion Battery(Built-in)
Detail Pictures:
