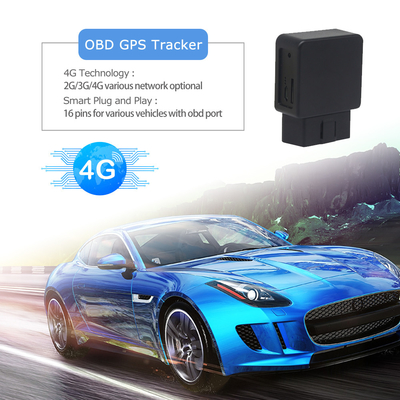

Obd Diagnostic 4G GPS Tracker 200mAh Data Reading Via GSM GPRS WIFI

Cars Driving 4G GPS Tracker obd Diagnostic 2G 3G 4G OBD2 Gps tracker Data reading via GSM GPRS WIFI

Product features
1. Precise positioning with accuracy of 5 meters.
2. GPS+LBS positioning system.
3. Functions:

  Remote power/fuel cut off

  ACC detection

  Power off alarm

  Overspeed alarm

  Vibration alarm

  Move alarm
4. Wide working voltage input range: 9V-100VDC.

Application
Rental vehicles, credit vehicles, passenger vehicles, taxis, truck, etc…

Specification

Real-Time Positioning:

C003-01-4G model GPS Tracker Device will get the real-time position message and upload all status to the server system.

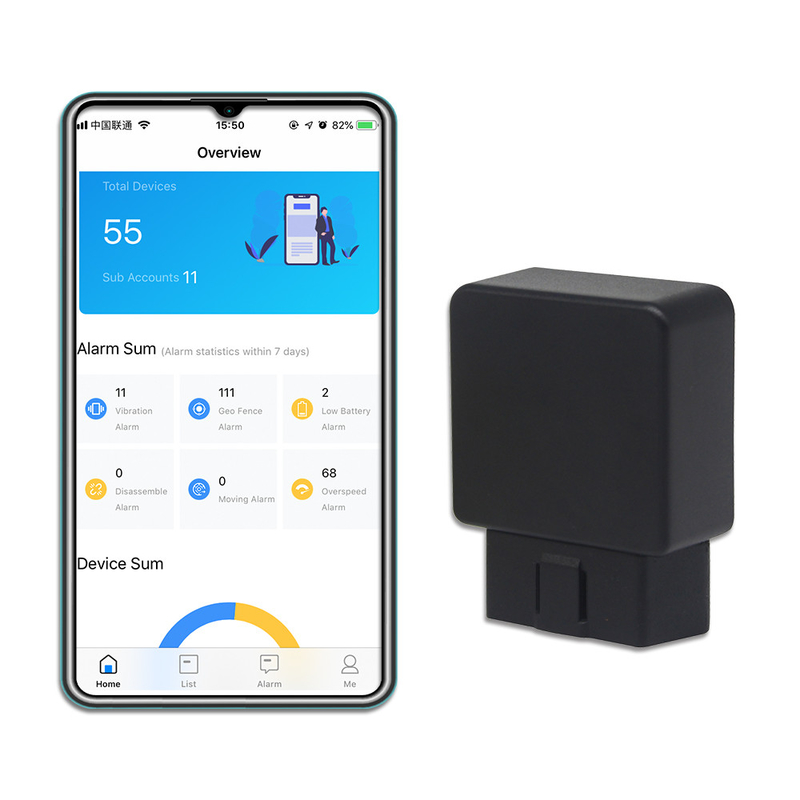

And will display the position on the map. you can click any of the points to know the name. locating time. and acc status. Speed
GPS Time, direction, and so on.

Read Diagnostic data

After the vehicle is started, the vehicle engine speed,vehicle speed, battery voltage, throttle percentage,engine load, coolant temperature, intake air flow, intake air temperature, ignition advance angle, instantaneous fuel consumption, Average fuel consumption, current mileage, current fuel consumption, cumulative fuel consumption fault code, real-time data flow

SIM card installation

Open the rubber plug on the left side of the device and insert the SIM card correctly in the direction

When the SIM card is inserted, there is a feeling of spring rebound, and the card can be pressed to the bottom to be stuck (if there is no spring rebound feeling, consider whether to insert or not)

Please ensure that the SIM card has a fee before inserting the card.

Note:
1. The terminal needs a GSM SIM card to be used for networking.
2. SIM card needs to open GPRS Internet access function
3. The size of the SIM card used is: 12*9mm (NanoSIM card)

Equipment installation

Look for the location of the vehicle OBD interface. The OBD interface is a 16-pin female connector and the interface is trapezoidal.

Note: The OBD interface positions of different models are different. The following figure shows the possible locations of the OBD interface. Some vehicle OBD ports are hidden behind the plastic baffle.

Note: Connect to the vehicle OBD interface, you can directly plug in or use the extension cable connection (installation of the dedicated extension cord and Velcro can be selected at the dealer according to actual needs)

Cars Driving 4G GPS Tracker obd Diagnostic 2G 3G 4G OBD2 Gps tracker Data reading via GSM GPRS WIFI

FAQ
1. Do you support OEM and ODM service?
Yes, we are professional GPS tracker manufacture since 2012, we offer bothe OEM and ODM service.
2. Can I check all my trackerdevices same time on the platform?
Yes, you can check all your trackers same time one the platfom.
3. Can you do software customization?
Yes, we can help to develp customized software.
4. Do I need to pay for the platform ?
No, we offer life free Web Platform and Phone APP.

5. What's your delivery date?
For samples we can delivery within 1-7 days, mess production need to be negotiate.
6. How your factory control the quality? What's your warranty?
Each production process with QC, all the raw material we purchased are certifcated and all our tracker wiht CE, FCC & RoHs certification. The warranty period is 12 months.
7. Can you provide SDK and API?
Yes, we can provide SDK and API with order payment.
8. Did the tracker need to have a SIM card? Where can I get the SIM card?
Yes, all the GPS tracker need to work with SIM card so can realize real-time tracking. You can buy and use your local SIM card.
