Product Details:
Payment & Shipping Terms:
|
Warranty: | 2 Years | Use: | Automotive |
---|---|---|---|
Size: | 90(L)×40(W)×15(H)mm | Network: | FDD 800/850/900/1800/2100/2600MHz |
GPS Positioning Accuracy: | 5-10m | Certification: | CE ISO |
Battery: | Built-in 200MAH | GPS Chip: | MTK Chip |
High Light: | GPRS Code Reader OBD Scanner,Geo Fence Alarm GPS Tracker,FCC 4G Car GPS Tracker |

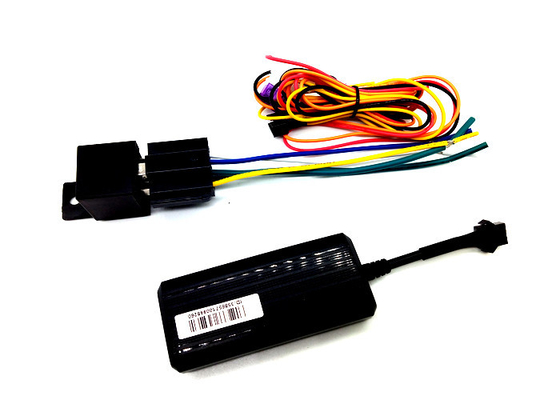

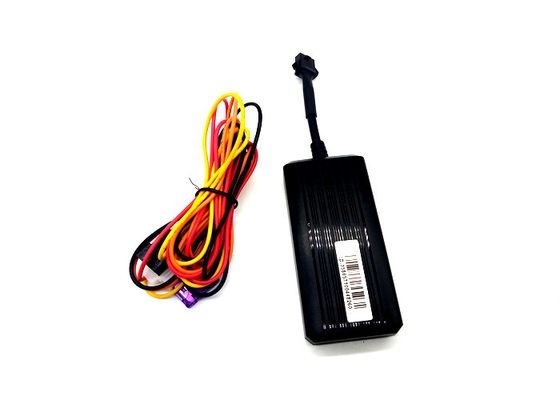

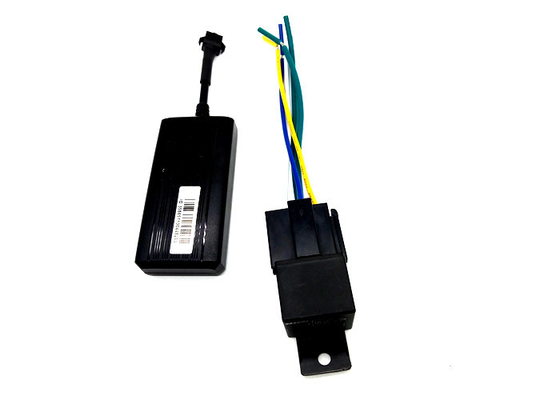

Sleek Mini 4G GPS GSM Tracker Voltage 9-100V Support Relay for Cutting off Power/Fuel
Basic functions:
real-time positioning,
overspeed alarm,
electronic fence,
vibration alarm,
car ACC detection,
Specifications
Communication system: 850/900/1800/1900MHz
Antenna: Built-in GPS antenna
Working voltage: 9 ~ 100V
Battery capacity: 200mA
Current:22mA(12v DC)
Body size: 90mm * 40mm * 15mm
Weight: 50g
Working temperature: -20 ~ + 70 ℃
Sleek Mini 4G GPS GSM Tracker Voltage 9-100V Support Relay for Cutting off Power/Fuel
PRODUCT PARAMETER
|
||
Communication
|
Standard
|
GSM,SMS,GPRS/4G NETCOM
|
Frequency band
|
TD-LTE: B34/B38/B39/B40/B41
FDD LTE: B1/B2/B3/B4/B5/B6/B8/B18 /B19/B26 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 |
|
Aisle
|
TCP/IP
|
|
Positioning
|
Frequency
|
1561.098MHz,1575.42MHz
|
Precision
|
<10M
|
|
Tracking sensitivity
|
-165dBm
|
|
Capture sensitivity
|
-148dBm
|
|
Positioning time
|
Hot Start ≤ 2s Cold start ≤ 38s
|
|
RAM
|
32mb
|
|
Antenna
|
Built-in GPS antenna, 4G antenna
|
|
Indicator Light
|
GPS (yellow), GSM (blue),POWER(red)
|
|
Built-in Battery
|
200mAh
|
|
Working Voltage/current
|
9-100VDC / 22mA (12VDVC) / 12mA (24VDVC)
|
|
Stand-by Current
|
≤5mA (12V)
|
|
Size
|
90(L) X 40 (W) X 15 (H) mm
|
|
Weight
|
50g
|
|
Operating Temperature
|
-20°C to +70°C
|
|
Working Humidity
|
20-80%RH
|
Accessories
Red&black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
Sleek Mini 4G GPS GSM Tracker Voltage 9-100V Support Relay for Cutting off Power/Fuel
INSTALLTION LOCATION
This terminal is a satellite positioning product . It is recommended that you choose professional units and personnel for installation and debugging.The recommended installation location is as follows .
Around the dashboard
Rear the windshield
NOTE:
1.Product installation should face up to the sky
2.If the windshield is pasted with a metail insulation layer or heating layer,it will reduce the strengh of the satellite singal reception.
which may cause the satellite to be diffcultto locate.Please change the teminal installation position.
Sleek Mini 4G GPS GSM Tracker Voltage 9-100V Support Relay for Cutting off Power/Fuel
FAQ
Q: Are your APP and platform free to use?
A: Yes, both of them are free to use for lifetime.
Q: As you are the direct manufacturer, can I order one or two samples from you?
A: Yes, we also support sample orders.
Q: Can I put order with PayPal for a fast shipment?
A: Sure, we support both alibaba online orders and Paypal, T/T, Western Union offline orders. Please contact us for details.
Q: How long will the delivery take after payment done?
A: Delivery time depends on the shipping way you choose. We offer cheap but slow way with Singapore Registered Post and fast express ways like DHL,TNT,FedEx,UPS, etc.
Post way takes about 7-20 days and Express way takes about 3-7 days to receive.
