Engineering Plastic GSM Motorcycle GPS Tracker 200Mah C003-01-4G

I'm Online Chat Now
Certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

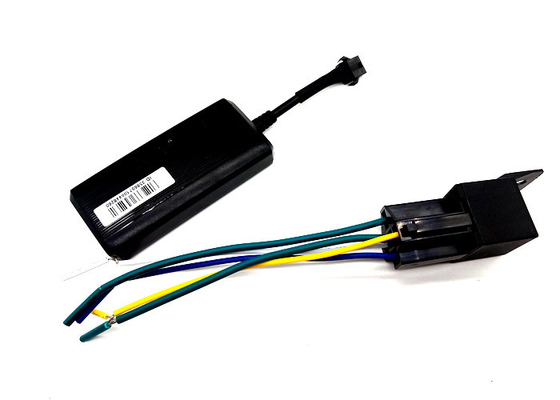

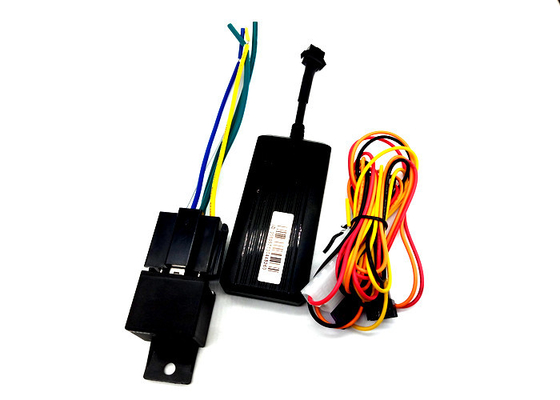

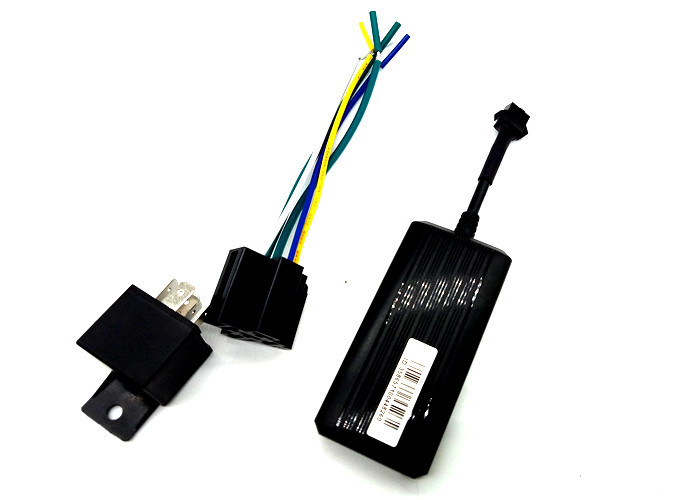

Engineering Plastic GSM Motorcycle GPS Tracker 200Mah C003-01-4G

Engineering Plastic GSM Motorcycle GPS Tracker 200Mah C003-01-4G
Engineering Plastic GSM Motorcycle GPS Tracker 200Mah C003-01-4G Engineering Plastic GSM Motorcycle GPS Tracker 200Mah C003-01-4G Engineering Plastic GSM Motorcycle GPS Tracker 200Mah C003-01-4G

Large Image :  Engineering Plastic GSM Motorcycle GPS Tracker 200Mah C003-01-4G Get Best Price

Product Details:
Place of Origin: Shenzhen China
Brand Name: Cartracker
Certification: CE ISO9000
Model Number: C003-01-4G
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 10,000pcs per month
Detailed Product Description
Function: Remote Monitoring Warranty: 2 Years
Model Number:: C003-01-4G GPS Tracker Network: 4G/3G/2G
Power Supply: DC9-100V Material: Engineering Plastic
Weight: 50 Grams Size: 90*40*15MM
High Light:

Engineering Plastic Motorcycle GPS Tracker

,

GSM Motorcycle GPS Tracker

,

200Mah Vehicle GPS Tracker

C003-01-4G model GPS Tracker Vehicle Car Motorcycle Tracker with 200Mah Battery 4G GPS Tracker
Frequency

2G GSM 850MHz,900MHz,1800MHz,1900MHz
3G WCDMA 2100/1900/900/850MHz
4G FDD-LTE 800/850/900/1800/2100/2600MHz




Redblack cable for power

Orange cable for ACC/ignition

Yellow cable for Relay
C003-01-4G model GPS Tracker Vehicle Car Motorcycle Tracker with 200Mah Battery 4G GPS Tracker
Specification

item gps relay car
OE NO. non
voltage 12V
rated current 40A
place of origin China
size 31*31*57mm
weight 50g
network gps/gsm/gprs
GPS sensitivity -159DbM
GPS accuracy 5m
battery/mAh 100
color black
warranty 2 years
MOQ 500pcs
payment T/T


Produce Description

GSM GPRS
Geo-sensor Input power
ACC Ignition checking
Built-in battery Cutt off power/fuel
Real time tracking Over speed alarm
Relay supported Platform /APP supported



C003-01-4G model GPS Tracker Vehicle Car Motorcycle Tracker with 200Mah Battery 4G GPS Tracker
Positioning Module

> Position
GPS | LBS
>GPS Module
Ublox
> Cold Start
38s On Averg.
> Hot Start
2s On Averg.
> Tracking Sensitivity
-165dBm
> Capture Sensitivity
-160dBm
> Antenna
Built-in GPS
> GPS Accuracy
Within 5m
> Sensor
Geo-fence


Communication Module

> Network
4G /GSM / GPRS
> Module
MT6261
> Band
4G:FDD-LTE:B1 B2 B3 B4 B5 B7 B8 B12(17) B20 B28
TDD-LTE: B38 B39 B40 B41
3G:WCDMA:B1/B5/B8
2G: 850/900/1800/1900MHz
> Antenna
Built-in GPS
> SIM Card Slot
Support
> SIM Card Type
4G 3G 2G SIM Card


C003-01-4G model GPS Tracker Vehicle Car Motorcycle Tracker with 200Mah Battery 4G GPS Tracker
Functions
ACC detection
remote power off
DC detection
overspeed alarm
electronic fence
Relay for cutting off power/fuel
Real time tracking

1.Real-time tracking.
When you need to know the location of the vehicle, you only need to open the web platform or log in to the APP and use the "View Location" function to view the detailed location of the vehicle. If the vehicle is driving, you can see where the vehicle is driving and detailed information.

2.GPS+BD+LBS triple positioning.
The equipment adopts GPS+Beidou+LBS triple positioning to make the positioning more accurate. When the satellite signal is relatively weak, it will automatically switch to LBS positioning so that the device will continue to update the location information.
