Product Details:
Payment & Shipping Terms:
|
Placement: | Windshield, Instument Panel | Function: | Real Time Tracking |
---|---|---|---|
Warranty: | 2 Years | Place Of Origin: | Shenzhen China |
Model Number: | C003-01-4G | Type: | 4G GPS Tracker |
Connection: | 3G/4G Sim Card, 2G Sim Card | Use: | Automotive |
High Light: | LTE FDD Vehicle GPS Tracker,GSM Wcdma Vehicle GPS Tracker,WCDMA Car Gps Tracker |

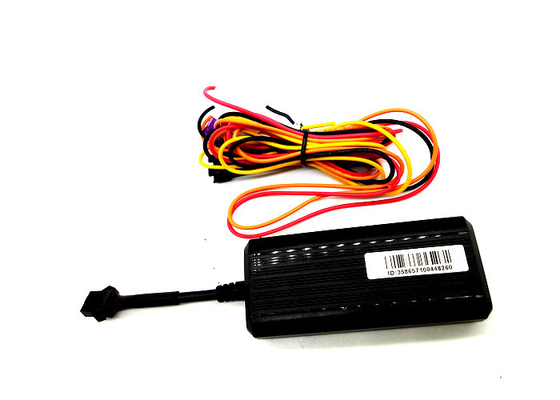

4G E-bike Vehicle GPS Tracker with Global GSM Wcdma 4G Band Widely Voltage 9-100V
Frequently used commands:
Command | Explain | Reply content |
IMEI# | IMEI query | IMEI: 116790246811200 |
IMEI,116790246811200# | Set IMEI | OK |
FACTORY# | Restore factory settings | OK, The terminal will restart after 30 seconds! |
RESET# | restart | The terminal will restart after 1 minute! |
WHERE# | Location query |
Current position!Lat:N22.589031,Lon:E113.853567,Course:0, Speed:0, DateTime:2018-07-26 10:25:55 |
URL# | Google link query |
GPS! N4.85094 E7.06102 speed:000.0 T:07/13/19 11:37 http://maps.google.com/maps?q=N4.864553,E6.983681 |
SERVER# | Server query | server,1,gw.carhere.net,8005,0# |
server,1,gps-go.com, 6006,0# |
Set domain name | ok |
Server,0,121.201.110.106, 6006,0# |
Set IP | ok |
GMT# | Time zone query | Currently Timezone(GMT):E,8,0 |
APN# | APN query | Currently in use APN:peoples.net,0000,0000; |
APN,xxxx# | Set APN | |
APN,xxxxt,userAAA, passBBB# |
Set apn and apn user,password | Example: apn,cmnet,aaa,000# |
GMT,<A>,<b>[,C]#
example, GMT,E,8,0#
|
Change time zone command |
A:E/W, E east time zone, W west time zone, default: E B: 0~12; time zone, default value: 8 C: 0/15/30/45, half time zone, default value: 0
|

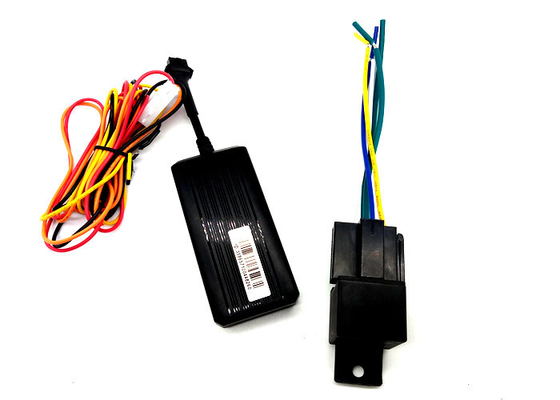

4G E-bike Vehicle GPS Tracker with Global GSM Wcdma 4G Band Widely Voltage 9-100V
4G Bands
Europe / Middle East / Africa / South Korea / Thailand
EC25-E:
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
North America
EC25-A:
LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
EC25-V:
LTE FDD: B4/B13
Australia/New Zealand/Taiwan/Brazil:
EC25-AU:
LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
EC25-AUT:
LTE FDD: B1/B3/B5/B7/B28
WCDMA: B1/B5
EC25-AUTL:
LTE FDD: B3/87/828
Japan EC25-J
LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19

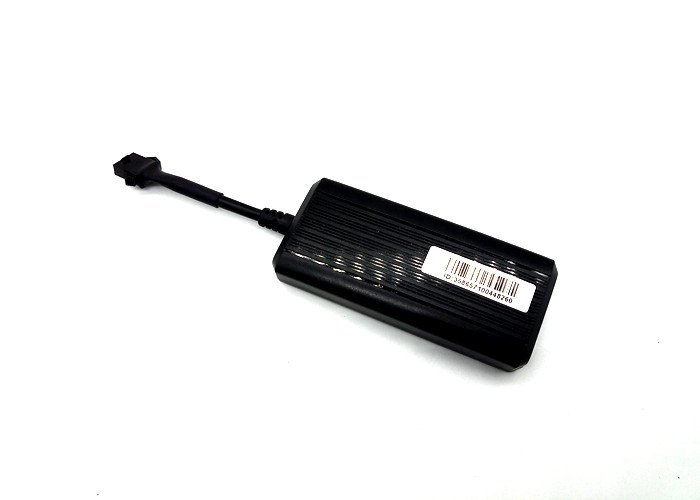

4G E-bike Vehicle GPS Tracker with Global GSM Wcdma 4G Band Widely Voltage 9-100V
Product Feature
1 Support global gsm850/900/1800/1900mhz, wcdma850/900/1900/2100 Mhz network frequency band;
2 Wide operating input voltage range: 9-80VDC;
3 GPS / LBS real-time positioning, support the computer to track the car, mobile search vehicles and wechat search vehicles;
4 Support SMS text query location information;
5 ACC ignition signal is detected, the vehicle prompted the state;
6 Built-in vibration sensor, to achieve intelligent vehicle anti-theft;
7 Able to set a specific number for SOS alarm and burglar alarm;
8 SOS switch button for emergency call for help;
9 Internal / external microphone and speakers, remote audio monitoring and voice intercom function (optional);
10 Built-in backup battery, to achieve illegal cutting wire alarm (optional);
11 Built-in OBD2 remote vehicle diagnostics management system (optional);
12 Platform supports up to 180 days historical route track;
13 Platform supports electronic fence, out of the regional alarm;
14 Platform supports deviate planning route alarm;
15 Platform supports overspeed alarm;
16 Platform supports serious collision warning (optional);
17 Platform Support rollover warning (optional);
18 Platform supports for report output;
19 Support WEB send arm and disarm command;
20 Support RFID auto-sensing arm and disarm (optional);
4G E-bike Vehicle GPS Tracker with Global GSM Wcdma 4G Band Widely Voltage 9-100V
Our services:
1. Sample order
2. We will reply you for your inquiry in 24 hours.
3. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T or western Union or paypal
Q3. How about your delivery time?
A: Generally, oders over 500 pcs which will take 15 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
