GPS Mini tracker for CAR 4G GPS Trackers Real Time Tracking For Vehicle Car E-bike

GPS Mini tracker for CAR 4G GPS Trackers Real Time Tracking For Vehicle Car E-bike

Product Description

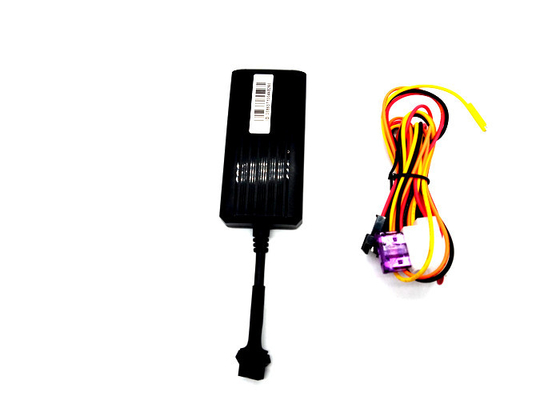

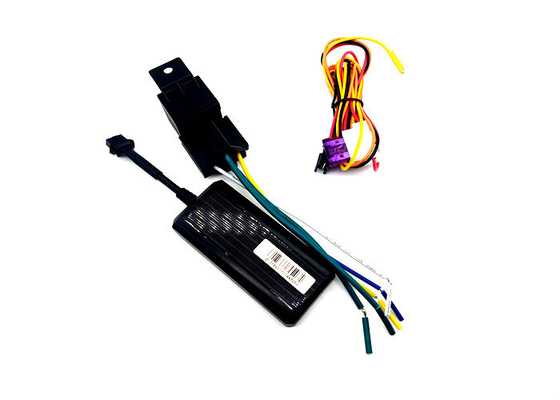

Accessories:

Red＆black cable for power

Orange cable for ACC/ignition

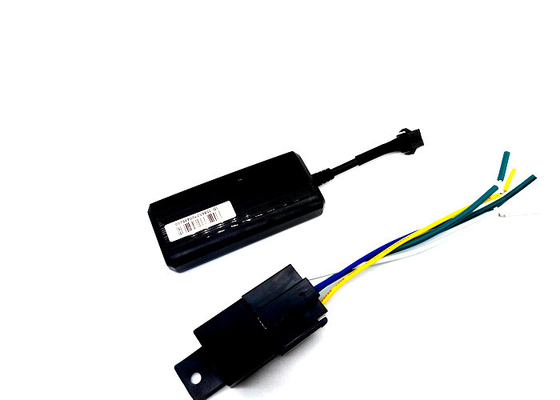

Yellow cable for Relay

GPS Mini tracker for CAR 4G GPS Trackers Real Time Tracking For Vehicle Car E-bike

Indicator:

LIGHT                Functions

Red light - Power Indicator / OBD Work Lights

Yellow indicator light -GSM

Blue LED light -GPS

GPS Mini tracker for CAR 4G GPS Trackers Real Time Tracking For Vehicle Car E-bike

Technical parameter

1).GSM:850/900/1800/1900 Quad band

2).GPRS: Class12, TCP/IP

3).Working Voltage:9-100V DC

4).Working current:≈22mA (12vDC)

5).Working current:≈12mA (24vDC)

6).GPS locating time:Cold start≈38s(Open sky)

                            Warm start≈32s Hot start≈2s(Open sky)

7).GPS Precision:10m(2D RM)

8).Working temperature:-20℃～+70℃

9).Working humidity:20%～80%RH

10).Measurement:90(L)×40(W)×15(H)mm

Main components:

GPS                                functions:

protocol: GT06                1)support ACC ignition checking ,
G-sensor : BS250E         2)support Relay for cutting off power/fuel
input power: 9-100V        3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H         4)built-in battery, Real time tracking.
GSM module: MT6261    5)Geo-fence, over speed alarm,

GPS module: Ublox         6) platform /APP supported

GPS Mini tracker for CAR 4G GPS Trackers Real Time Tracking For Vehicle Car E-bike

Terminal installation is concealed installation, hidden installation recommendations terminal equipment designated by the distributor of professional and technical personnel to install, note the following:

1 To avoid damage to the thief, the device select bits should be hidden;

2 To avoid to put the emission sources together, such as reversing radar, anti-theft devices and other automotive communications equipment;

3 It can be fixed by cable ties, or use wide sponge double-sided adhesive stickers;

4 Equipment built-in GSM antenna and GPS antenna, the installation should ensure a positive upward (toward the sky), and the above non-metal shield block

In particular that:
1. Any technical changes to the product in the future without prior notice.
2. Any changes of appearance, color of products, to prevail in kind.
3. The warranty card is only available in the following listed IMEI / ID Number warranty
Services.
4. Please keep this service card, please show this card and the original purchase receipt
for warranty.
5. See the table below illustrate specific warranty.
This card is a basic warranty certificate, user please fill out the card and keep it.
