Product Details:
Payment & Shipping Terms:
|
Place Of Origin:: | Shenzhen China | Product Name:: | 4G GPS Mini Tracker |
---|---|---|---|
System Memory: | 32RAM+32ROM | GPS Location Precision: | 5-100M |
Placement: | Portbale | Function: | Over Speed Alarm |
Use: | Automotive | Material: | Engineering Plastic |
High Light: | Geo Fence 4G GPS Tracker,FCC 4G GPS Tracker,GPS LBS Diagnostic Code Reader |
Mini 3G 4G GPS GSM Tracker Anti-lost GPS Tracking Device For Car Vehicle E-bike
Product features:
Accurate positioning, accuracy up to 5 meters.
GPS+ beidou +LBS three-mode positioning.
Functions: ACC detection, remote power off, DC detection, power off alarm, overspeed alarm, language intercom, electronic fence, remote photography, etc.
Industrial design, working voltage 9V - 100V.

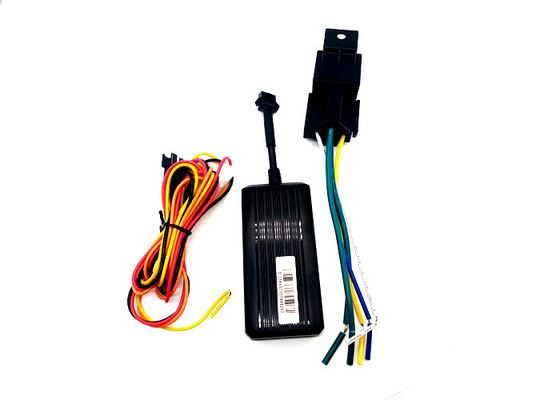

Accessories:
Red&black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
Mini 3G 4G GPS GSM Tracker Anti-lost GPS Tracking Device For Car Vehicle E-bike
SMS Command list | |||
NO. | Item | SMS Commands format | Remarks |
1 | Check Device Status | STATUS# | |
2 | Check Device parameters | PARAM# | |
3 | Check GPRS Parameters | GPRSSET# | |
4 | Check Device Lat. And Log. | WHERE# | |
5 | Set Server IP or Domain name |
SERVER,1,domain name,port,0#
SERVER,0,IP,Port,0# The last bit 0 stands for TCP |
|
6 | Check Server parameters | SERVER# | |
7 | Reset Device | RESET# | The terminal will restart after 1 minutes |
8 | Add SOS Number | SOS,A, Number 1,Number 2,Number 3# | |
9 | Del SOS Number | SOS,D,No. 1,No. 2,No. 3# | |
10 | Check SOS Number | SOS# | |
11 | Add Center number | CENTER,A,Number# | Only SMS NUMBER CAN SET CENTER NUMBER |
12 | Del Center number | CENTER,D# | |
13 | GPS DATA upload time interval |
TIMER,T1,T2# T1=0,5~18000seconds; ACC ON time interval ACC OFF time interval Example: TIMER,30,300# |
|
14 | Check time interval | TIMER# | |
15 | Control Relay |
RELAY,A# 0 stands for on 1 stands for off Example: RELAY,0# |
Mini 3G 4G GPS GSM Tracker Anti-lost GPS Tracking Device For Car Vehicle E-bike
Main Feature:
* 4G 3G 2G bands |
* Built-in acceleration sensor for vibration alarm and power saving |
* Built-in battery, power disconnection alarm function |
* Super wide working voltage input range: 9-80V |
* The ACC ignition signal detection, vehicle status indicators |
* Arm / Disarm |
* Watchdog function, reboot automatically after breakdown |
* Suitable for Vehicles/Cars/Motorcycles/E-bike etc |
* SOS ,microphone ,Relay is optional |
4G Frequency band
Europe / Middle East / Africa / South Korea / Thailand EC25-E: |
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
North America EC25-A EC25-V |
LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5 LTE FDD: B4/B13 |
Australia/New Zealand/Taiwan/Brazil EC25-AU |
LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
Japan EC25-J |
LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 WCDMA: B1/B6/B8/B19 |
Mini 3G 4G GPS GSM Tracker Anti-lost GPS Tracking Device For Car Vehicle E-bike
SOS Alarm (Optional)
When in emergency situation need help, you can press the SOS to trigger SOS emergency
alarm. Device will send a SOS message to specific number and call the specific number
until pick up. Device will also send SMS alarm information to platform.
Specific number for the alarm number, , you can send an SMS instruction to add SOS
number, you can add two specific number SOS, 101 is the default owner number, 102 for
the first SOS specific number, 103 for the second SOS specific numbers, in the alarm state,
the device will send location information or SOS to a specific number (information is
based on whether the set needs), and the cycle call until the dial up. Before setting
specific numbers, all numbers can be set and query. After set a specific number, without a
password can only be associated with the specific number set.
