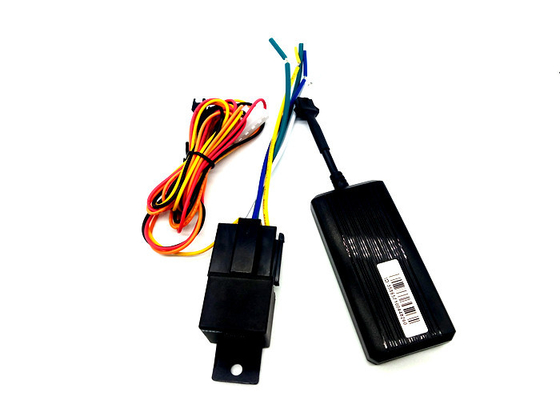

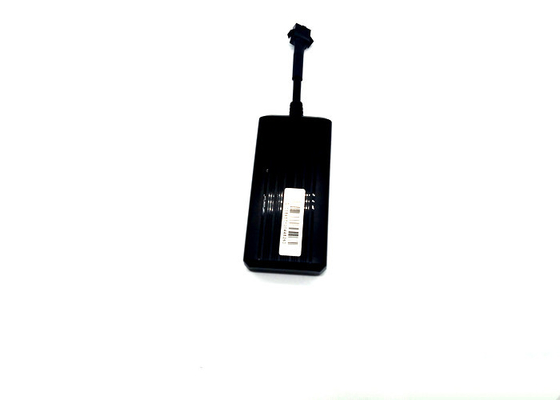

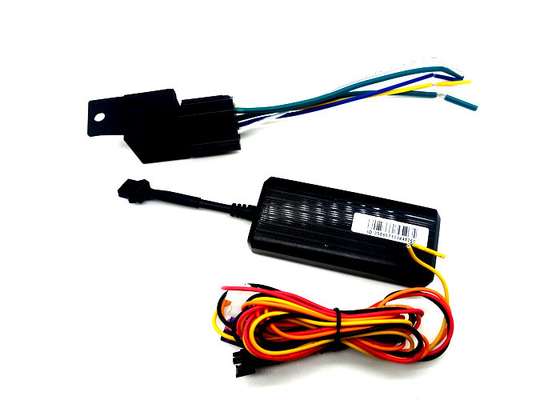

Car Vehicle GPS Tracker with Relay Real Time Tracking Accurate Cheap Car 4G GPS Tracker
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | 4G GPS Tracker | Warranty: | 24 Month |
|---|---|---|---|
| Use: | Automotive | Voltage: | 9-100V |
| Application: | Web Platform/APP | System: | Support Website APP |
| Function: | Real Time Tracking | GPS Chip: | MTK6261 |
| High Light: | Geo Fence 4G GPS Tracker,FCC 4G GPS Tracker,GPS LBS Diagnostic Code Reader |
||
Car Vehicle GPS Tracker with Relay Real Time Tracking Accurate Cheap Car 4G GPS Tracker
Description
| GSM850/900/1800/1900mhz |
| WCDMA850/900/1900/2100 Mhz |
| FDD-LTE 800/850/900/1800/2100/2600MHz |
| Voltage range: 9-100VDC; |
| GPS / LBS real-time positioning |
| Support the computer to track the car, |
| Mobile search |
| Vehicles and wechat search vehicles |
| SMS text query location information |
| ACC ignition signal detected |
| Built-in vibration sensor |
| Able to set a specific number for SOS alarm and burglar alarm |
Feature
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |
Car Vehicle GPS Tracker with Relay Real Time Tracking Accurate Cheap Car 4G GPS Tracker
Specification
| Detail | |
| Operating voltage | DC9-90V |
| Operating current | 22mA@12V |
| Specifications | L90mm*W40mm*H15mm |
| Positioning mode | GPS, LBS and positioning |
| Positioning error | < 10 m |
| Support WCDMA | Yes |
| Communication | TCP |
| Operating temperature range | -20℃～+70℃ |
| Storage temperature range | -40℃~+85℃ |
| weight | 50g |
Main function
| 1. Remote power off function | |
| 2. Real-time positioning function | |
| 3. Anti-theft alarm | |
| 4. Track playback function | |
| 5. Vibration alarm | |
| 6. Overspeed alarm | |
| 7. Electronic fence function |
Car Vehicle GPS Tracker with Relay Real Time Tracking Accurate Cheap Car 4G GPS Tracker
Technical parameter
1).GSM:850/900/1800/1900 Quad band
2).GPRS: Class12, TCP/IP
3).Working Voltage:9-100V DC
4).Working current:≈22mA (12vDC)
5).Working current:≈12mA (24vDC)
6).GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky)
7).GPS Precision:10m(2D RM)
8).Working temperature:-20℃～+70℃
9).Working humidity:20%～80%RH
Device status indicators
1 Connect DC 9-100V power supply and the red LED will light continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
Car Vehicle GPS Tracker with Relay Real Time Tracking Accurate Cheap Car 4G GPS Tracker
Device wiring requirements
1 The device power supply is DC 9-100V. The red line is positive pole while the black line is negative pole.
2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.
3 When finishing the power supply wire connection, please make the plug of power supply to the device
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
