Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Band Support:: | 2G, 3G, 4G B1/B3/B38/ B39/ B40/ B41 | Battery: | 200mAH Builit-in |
|---|---|---|---|
| SOS: | Support SOS Button | Weight: | 50g |
| Support SIM Card: | 2G, 3G And 4G | Dimension: | 90mm*40mm*15mm |
| Use: | Automotive | Function: | Anti-theft |
| High Light: | Geo Fence 4G GPS Tracker,FCC 4G GPS Tracker,GPS LBS Diagnostic Code Reader |
||
Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker

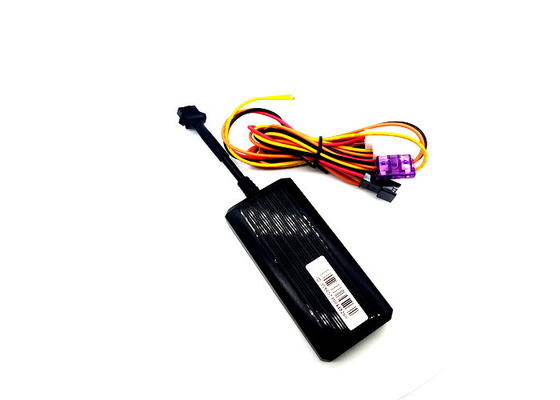

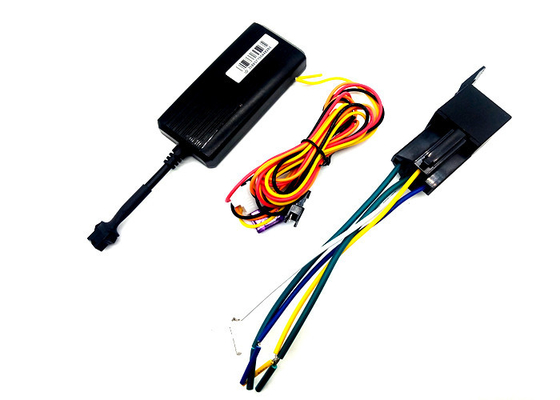

Accessories
Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
Product features:
Accurate positioning, accuracy up to 5 meters.
GPS+ beidou +LBS three-mode positioning.
Functions: ACC detection, remote power off, DC detection, power off alarm, overspeed alarm, language intercom, electronic fence, remote photography, etc.
Industrial design, working voltage 9V - 100V.
Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker
Application:
Rental vehicles, credit vehicles, passenger vehicles, taxis, freight vehicles and so on.
Equipment parameters:
| Electric Speicifications |
| Power supply mode: Battery power supply |
| Working voltage range: DC 9V - 100V |
| Working current: 12mA (24vDC) |
| Built-in battery capacity: 200mAH |
| Environmental Features |
| Working temperature range -20℃ - 70℃ |
| Storage temperature range, low - 30 ℃ -80 ℃ |
| Working humidity range - 20%-80%RH |
| Communication frequency band - | |
| LTE | FDD-LTE :B1/B3 |
| TDD-LTE :B38/ B39/ B40/ B41 | |
| 3G | WCDMA:B1 |
| TD-SCDMA:B34/B39 | |
| EVDO/CDMA2000 1x :BC0 | |
| GSM/EDGE | B3/B8 |
| Communication antenna - built-in antenna | |
| GPS/LBS Positioning Characteristics | |
| Cold start time - average 34 seconds | |
| Hot start time - average 2 second | |
| Sensitivity (tracking) -162DBM | |
| Positioning antenna - built-in antenna | |
Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker
Description:
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |
Frequency
| Europe / Middle East / Africa / South Korea / Thailand EC25-E: |
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
| North America EC25-A EC25-V |
LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5 LTE FDD: B4/B13 |
| Australia/New Zealand/Taiwan/Brazil EC25-AU |
LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
| Japan EC25-J |
LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 WCDMA: B1/B6/B8/B19 |
Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker
GPS Tracker Main Functions:
【Real Time Tracking】 GPS tracker offers real-time tracking and 30 days of tracking history. Track from any smart intellectual Product such as a computer, tablet, phone, etc. Support platform lifetime. Just login or download APP, track any location anywhere and anytime. The car GPS tracker for vehicle work in almost every country in the world
【Free to Use】Real time tracking route playback history check via our platform lifetime. But this mini GPS tracker device only supports GSM 4G network. Not include a GSM SIM card, please buy a GSM card, Speed Talk is perfect. If you have any problems please feel free to contact us
FAQ:
1. Where is your factory?
Answer: Our factory is in Shenzhen City China.
2. Do you test all your products when your product them?
Answer: Yes, of course, we test all before ship them.
3. Do it contain built-in battery for your GPS Tracker product?
Answer: Yes,this model contains one 180mAh Li-ion battery.
4. What kinds of GPS Chip you use?
Answer: we used Ulbox Chip.
