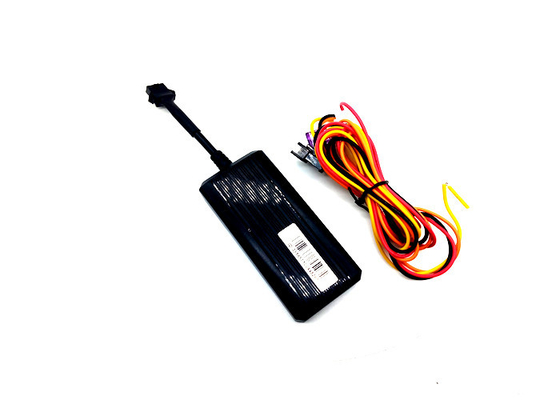

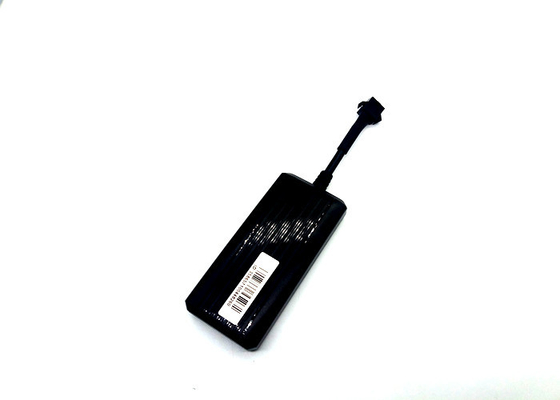

C003-01-4G Model GPS Tracking Device for Car Truck with Cutting off Power Remotely
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Battery: | Built-in 200mAh | Use: | Automotive |
|---|---|---|---|
| Feature: | Real Time Tracking | GPS Accuracy: | 10M |
| DIMENSION: | 90mm(L)*40mm(W)*15mm(H) | Voltage Input: | DC9-100V |
| Chip Module: | MT6261 | Weight: | 50g |
| High Light: | Geo Fence 4G GPS Tracker,FCC 4G GPS Tracker,GPS LBS Diagnostic Code Reader |
||
C003-01-4G Model GPS Tracking Device for Car Truck with Cutting off Power Remotely
Product Specification
| Frequency | North America EC25-A EC25-V:LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5 LTE FDD: B4/B13 |
| Nerworks | 4G/3G/2G |
| Battery | 200mah |
| Operating Voltage | 9-100v |
| Location time | Hot start≈2s(Open sky) |
| Location accuracy | 5-10M |
| Operating temperature | -20℃～+70℃ |
| Dimension | 90*40*15mm |
| Weight | 0.05kg |
Feature
| FDD LTE | 800/850/900/1800/2100/2600MHz |
| GPS positioning | GPS sensitivity: -162dBm |
| GPS positioning accuracy: 5 meters (under open conditions) | |
| Speed accuracy: 0.1 m/s | |
| Cold start time: <38 seconds | |
| Warm start time: <32 seconds | |
| Hot start time: <2 seconds | |
| Base station positioning | Support base station positioning, positioning accuracy: 10~200 meters |
| Working current | Average current ≈22mA (12vDC) maximum current <100mA (12VDC) |
| Operating temperature | -20~+70℃ |
| Material | Engineering plastics |
| Weight | 50G |
| Network | 4G LTE/3G WCDMA /2G GSM |
| Dim. | 90*40*15mm |
| Storage Temp. | -40°C to +85°C |
| Accuracy | 5-20m |
| Operation Temp. | -20°C to +55°C |
| Humidity | 20%--80% non-condensing |
| Working Voltage | 9-100V |
| CPU | MTK6261 |
C003-01-4G Model GPS Tracking Device for Car Truck with Cutting off Power Remotely
Parameter
| Size | 90(L)×40(W)×15(H)mm |
| Working temperature | -20℃～+70℃ |
| Working Voltage | DC9-100V |
| Weight | 50g |
| Built-in Battery | 200MAH |
Hardware Specification
| Location Accouracy | 10M |
| GPS Chip | MT6261 |
| FDD-LTE Frequency | 800/850/900/1800/2100/2600MHz |
| Hot start≈2s(Open sky) | |
| GPS antenna | Built-in,18*18*4 mm |
| GPRS | Class12 TCP/IP |
Software Specification
| ACC Detection | support |
| GEO-fence | support |
| Cut power | support |
| Vibration | support |
| Movement | support |
C003-01-4G Model GPS Tracking Device for Car Truck with Cutting off Power Remotely
components
| GPS | functions: |
| protocol: GT06 | 1)support ACC ignition checking |

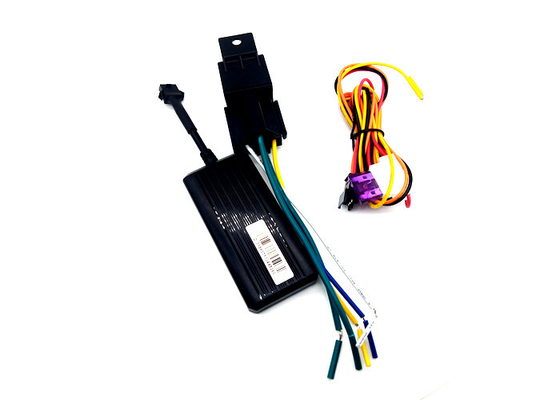

| G-sensor : BS250E | 2)support Relay for cutting off power/fuel |
| input power: 9-100V | 3)built-in GPS antenna: 18*18*4 mm |
| power IC: SL3036H | 4)built-in battery, Real time tracking |
| GSM module: MT6261 | 5)Geo-fence, over speed alarm, |
| GPS module: Ublox | 6) platform /APP supported |
| LIGHT | Functions |
| Red LED | Connect DC 9-100V power supply and will light continuously. |
| The red LED is the power signal, | |
| It is always on when the external DC is connected. | |
| blue LED | It is he GSM signal indicator. |
| It is always on when there is no GSM; | |
| It flashes when GSM is normal; | |
| It flashes quickly when transmitting data. | |
| yellow LED | It is the GPS signal indicator: |
| It is always on when there is no positioning; | |
| It flashes after positioning. |
C003-01-4G Model GPS Tracking Device for Car Truck with Cutting off Power Remotely
Q1: What kind of SIM card do your devices support?
Re: It support global quad band(850/900/1800/1900) SIM card, 2G GSM network, and enable GPRS flow;
Q2: Can i build my own platform, and only use your device?
Re: Yes, of course, you can build your own plaftform, by our offering GPRS protocol, if you want our help to build a independent platform, it will cost technical fee, details you can contact us directly;
Q3: Can i make my own distributor account on your platform?
Re: Yes, you can, if you are a distributor or want to be a distributor, please share all your IMEIs of devices, and then we can
make a distributor account for you, Available to manage your devices.
Q4: Is there phone APP, support Android and IOS system?
Re: yes, you can download the latest app here, www.19gps.net,www.dyegoo.net and it support android and IOS, no Windows OS;
Q5: How about your platform cost?
Re: Free for lifetime;
