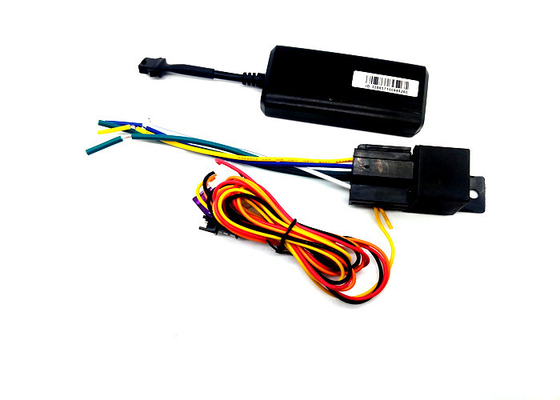

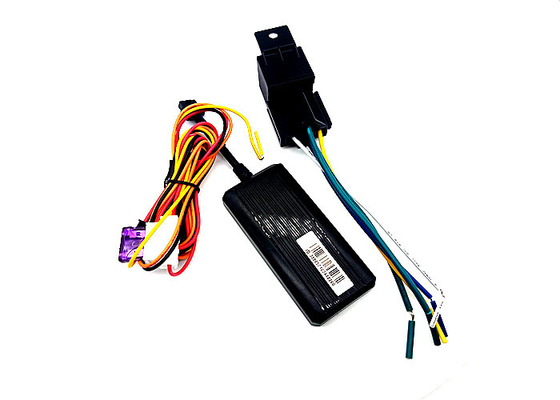

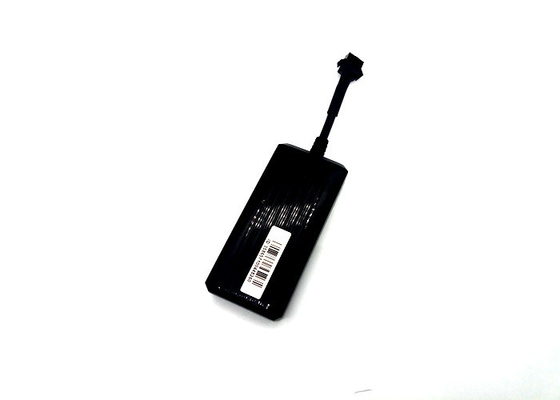

supports overspeed alarm Moving Alarm 4G GPS Tracker With 2G 3G 4G Network
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Mini | Warranty: | 2 Years |
|---|---|---|---|
| DIM: | 90*40*15mm | GSM Module: | MT6261 |
| Frequency: | 4G 800/850/900/1800/2100/2600MHz | 4G Antenna: | Built-in GPS Antenna |
| Working Voltage:: | 9-100V | Certificate: | ISO CE |
| High Light: | Geo Fence 4G GPS Tracker,FCC 4G GPS Tracker,GPS LBS Diagnostic Code Reader |
||
supports overspeed alarm Moving Alarm 4G GPS Tracker With 2G 3G 4G Network
Description
| GSM850/900/1800/1900mhz |
| WCDMA850/900/1900/2100 Mhz |
| FDD-LTE 800/850/900/1800/2100/2600MHz |
| Voltage range: 9-100VDC; |
| GPS / LBS real-time positioning |
| Support the computer to track the car, |
| Mobile search |
| Vehicles and wechat search vehicles |
| SMS text query location information |
| ACC ignition signal detected |
| Built-in vibration sensor |
| Able to set a specific number for SOS alarm and burglar alarm |
Platform
1.Platform supports up to 180 days historical route track;
2.Platform supports electronic fence, out of the regional alarm;
3.Platform supports deviate planning route alarm;
4.Platform supports overspeed alarm;
5.Platform supports serious collision warning (optional);
6.Platform Support rollover warning (optional);
7.Platform supports for report output;
8.Support WEB send arm and disarm command
supports overspeed alarm Moving Alarm 4G GPS Tracker With 2G 3G 4G Network
Function
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |
Frequency
| Europe / Middle East / Africa / South Korea / Thailand EC25-E: |
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 |
| North America EC25-A EC25-V |
LTE FDD: B2/B4/B12 WCDMA: B2/B4/B5 LTE FDD: B4/B13 |
| Australia/New Zealand/Taiwan/Brazil EC25-AU |
LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 |
| Japan EC25-J |
LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 WCDMA: B1/B6/B8/B19 |
supports overspeed alarm Moving Alarm 4G GPS Tracker With 2G 3G 4G Network
Device installition place
(1) Below the windshield inside the decorative panel;
(2) Car meter (surface of non-metallic materials) around the shelter;
(3) Rear windshield below the decorative panel;
(4) Inside car door or pillar;
(5) Within the dashboard or under back seat hidden
Indicators
1. Connect DC 9-100V power supply and the red LED will light continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
2.The blue LED is the GSM signal indicator.
It is always on when there is no GSM
it flashes when GSM is normal;
it flashes quickly when transmitting data.
3. The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
supports overspeed alarm Moving Alarm 4G GPS Tracker With 2G 3G 4G Network
Installation for SIM of device
Preparation for the installation
1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
4 Put back the front cover and screw it up.
5 Connect the device to the 9-100Vpower supply.(the red LED constant glow)
6 Install the device in the hidden place of the car；
Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield；
In the front instrument panel；
Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.
