Vehicle GPS Tracking Device GPRS SMS Tracker Free Tracking Platform 4G GPS Tracker

I'm Online Chat Now
Certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

Vehicle GPS Tracking Device GPRS SMS Tracker Free Tracking Platform 4G GPS Tracker

Vehicle GPS Tracking Device GPRS SMS Tracker Free Tracking Platform 4G GPS Tracker
Vehicle GPS Tracking Device GPRS SMS Tracker Free Tracking Platform 4G GPS Tracker Vehicle GPS Tracking Device GPRS SMS Tracker Free Tracking Platform 4G GPS Tracker Vehicle GPS Tracking Device GPRS SMS Tracker Free Tracking Platform 4G GPS Tracker

Large Image :  Vehicle GPS Tracking Device GPRS SMS Tracker Free Tracking Platform 4G GPS Tracker Get Best Price

Product Details:
Place of Origin: China
Brand Name: Cartracker
Certification: CE / ISO9000
Model Number: C003-01-4G
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 10,000pcs per month
Detailed Product Description
Type: 4G GPS Tracker Warranty: 2 Years
Weight: 20 Grams Size: 90*40*15MM
Battery: Built-in 200MAH Network: GSM/GPRS(class 12)
Function: GPS Anti-jammer Tracker,Cut-off Engine Use: Automotive
High Light:

4G LTE Vehicle GPS Tracker

,

ACC Input Detection GPS Tracker

,

LBS Positioning GPS Tracking Device

Vehicle GPS Tracking Device GPRS SMS Tracker Free Tracking Platform 4G GPS Tracker

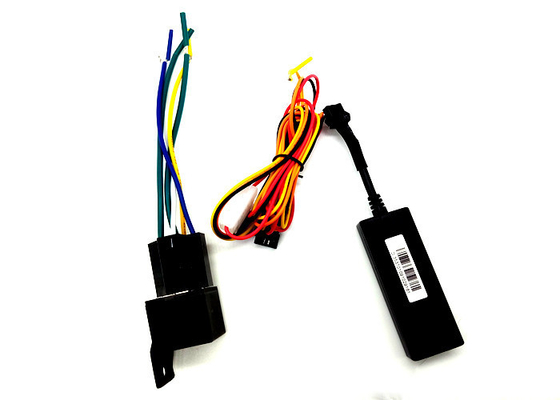

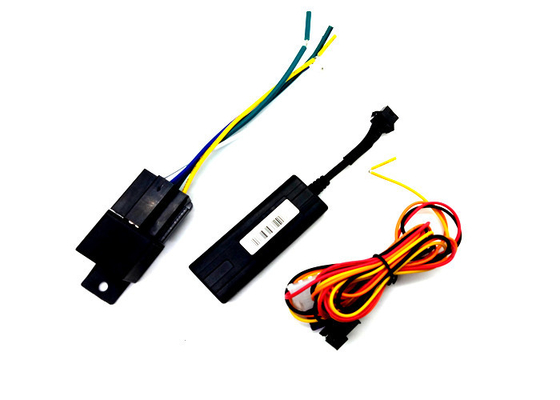

Accessories

Vehicle GPS Tracking Device GPRS SMS Tracker Free Tracking Platform 4G GPS Tracker 0

Redblack cable for power

Orange cable for ACC/ignition

Yellow cable for Relay



Vehicle GPS Tracking Device GPRS SMS Tracker Free Tracking Platform 4G GPS Tracker

Technical parameter:

1).GSM:850/900/1800/1900 Quad band

2).GPRS: Class12, TCP/IP

3).Working Voltage:9-100V DC

4).Working current:≈22mA (12vDC)

5).Working current:≈12mA (24vDC)

6).GPS locating time:Cold start≈38s(Open sky)

                                  Warm start≈32s Hot start≈2s(Open sky)

7).GPS Precision:10m(2D RM)

8).Working temperature:-20℃~+70℃

9).Working humidity:20%~80%RH

10).Measurement:90(L)×40(W)×15(H)mm



Main components:

GPS                               functions:

protocol: GT06               1)support ACC ignition checking ,
G-sensor : BS250E        2)support Relay for cutting off power/fuel
input power: 9-100V       3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H        4)built-in battery, Real time tracking.
GSM module: MT6261   5)Geo-fence, over speed alarm,

GPS module: Ublox        6)platform /APP supported

Vehicle GPS Tracking Device GPRS SMS Tracker Free Tracking Platform 4G GPS Tracker 1



Vehicle GPS Tracking Device GPRS SMS Tracker Free Tracking Platform 4G GPS Tracker

Indicators

LIGHT Functions
Red LED Connect DC 9-100V power supply and will light continuously.
The red LED is the power signal,
It is always on when the external DC is connected.
blue LED It is he GSM signal indicator.
It is always on when there is no GSM;
It flashes when GSM is normal;
It flashes quickly when transmitting data.
yellow LED It is the GPS signal indicator:
It is always on when there is no positioning;
It flashes after positioning.



Installation for SIM of device



1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.

2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.

3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.

4 Put back the front cover and screw it up.

5 Connect the device to the 9-100Vpower supply.(the red LED constant glow)

6 Install the device in the hidden place of the car;

Vehicle GPS Tracking Device GPRS SMS Tracker Free Tracking Platform 4G GPS Tracker 2





Vehicle GPS Tracking Device GPRS SMS Tracker Free Tracking Platform 4G GPS Tracker



Device wiring requirements

1 The device power supply is DC 9-100V. The red line is positive pole while the black line is negative pole.

2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.

3 When finishing the power supply wire connection, please make the plug of power supply to the device



Warranty
In particular that:
1. Any technical changes to the product in the future without prior notice.
2. Any changes of appearance, color of products, to prevail in kind.
3. The warranty card is only available in the following listed IMEI / ID Number warranty
Services.
4. Please keep this service card, please show this card and the original purchase receipt
for warranty.
5. See the table below illustrate specific warranty.
This card is a basic warranty certificate, user please fill out the card and keep it.
