Product Details:
Payment & Shipping Terms:
|
Position Accuracy: | 5 Meters | GPRS: | Class 12 TCP IP |
---|---|---|---|
GPS Module: | MT6261 | Protocol: | Concox GT06 |
Support: | 4G/3g/2g | Positioning: | GPS / LBS/GSM |
Network Frequency Band: | Wcdma850/900/1900/2100Mhz | Size: | 75mm*32mm*15mm |
Weight: | 38g | Humidity: | 5%--95% Non-condensing |
High Light: | Concox GT06 Car GPS Tracker,MT6261 Car GPS Tracker,850Mhz Automobiles GPS Tracker |

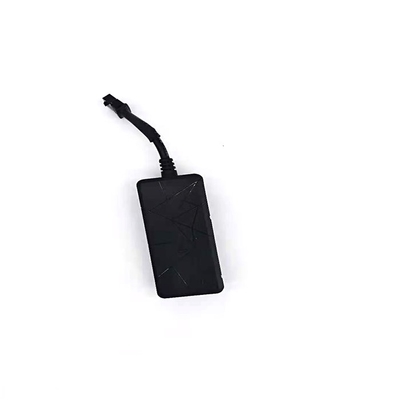

4G Mini Car GPS Tracker 2021 Gps Tracking Devices For Automobiles Built In Battery
Specification:
Content | Specs. |
Dim. | 75(L)x32(W)x15(H) mm |
Weight | 38g |
Network | 4G LTE/3G/2G |
Band |
LTE-FDD : B2/B4/B5/B12/B13 WCDMA: B2/B5 Asia-Europe LTE-FDD:B1/B3/B5/B7/B8/B20 LTE-TDD : B38/B39/B40/B41 WCDMA: B1/B5/B8 GSM: 900/1800mHz South America -Australia LTE-FDD : B1/B2/B3/B4/B5/B7/B8/B28 LTE-TDD : B40 WCDMA : B1/B2/B5/B8 GSM: 850/900/1800/1900mHz
|
GPS chip | MTK |
GSM/GPRS module | SIM7600 |
GPS sensitivity | -159dBm |
GPS accuracy | 20m |
Time To First Fix |
Cold status 45s Warm status 35s Hot status 1s |
Working Voltage | 9-78V |
Accuracy | 5-20m |
Battery | 3.7V 200MAH |
Standby | 5-9 hours without connecting the power supply of the vehicle |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +55°C |
Humidity | 5%--95% non-condensing |
Multi-Mode Positioning: BD GPS LBS

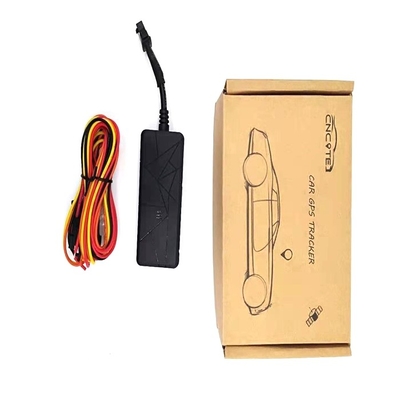

Product accessories
2. 1.1 Power cable
3. 1.2 User Guide
4. 1.3 Microphone (optional)
5. 1.4 SOS button (optional)
6. 1.5 Relay (optional)
7. 2. Product Features
8. 2.1 Support global gsm850/900/1800/1900mhz, wcdma850/900/1900/2100 Mhz network frequency band;
9. 2.2 Wide operating input voltage range: 9-80VDC;
10. 2.3 GPS / LBS real-time positioning, support the computer to track the car, mobile search vehicles, and WeChat search vehicles;
11. 2.4 Support SMS text query location information;
12. 2.5 ACC ignition signal is detected, the vehicle prompted the state;
13. 2.6 Built-in vibration sensor, to achieve intelligent vehicle anti-theft;
14. 2.7 Able to set a specific number for SOS alarm and burglar alarm;
15. 2.8 SOS switch button for the emergency call for help;
4G Mini Car GPS Tracker 2021 Gps Tracking Devices For Automobiles Built In Battery
GPS Tracker Main Functions:
1.Real-time positioning and precise positioning: real-time tracking, automatic display of location information (supporting Android/iOS applications, Web/Wap), real-time free tracking, GPS/A GPS/LBS mode positioning, positioning accuracy up to 5 meters.
2.Electronic fence (geofence): Set up a geo-fence to restrict movement in the area. If the device is out of the area, a message will be sent to the manager's number.
Can control the car, cut the oil, cut the electricity. You can safely protect your car. And GPS is small, easy to hide, portable, built-in 150 mAh battery.
3.Low energy consumption alarm/vibration alarm/Overspeed alarm: intelligent energy management, low energy consumption. Built-in vibration sensor, when your car vibrates, you will receive an SMS alarm. When the vehicle is too large for the set speed, the GPS tracker will send an alarm to the mobile phone. Remember to drive safely.
4.Historical track memory: Display the 30-day historical route. Choose to view LBS location data or GPS location data. Need to buy 850/900/1800/1900MHz 2G GSM SIM card (we recommend using a T-mobile SIM card that supports 2G/3G/4G, and a monthly data subscription plan of no less than 30M is required.
4G Mini Car GPS Tracker 2021 Gps Tracking Devices For Automobiles Built In Battery
Install→Power on→Settings→Register
Installation: GPS antenna should be facing toward the sky, above the mounting location, must be no material (such as metal, window film) absorption of electromagnetic waves sheltered place.
Boot: Insert the SIM card correctly, connect the wire according to the diagram, then turn on the power.
Setting: Must be done, or can not do other operations, mobile phone owners send text messages to set the owner number and
a specific number to the terminal SIM card.
Registration: The registration method is a different subject to dealer platforms, please consult your dealer.
2.1 Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as follows:
Under Front windshield;
In the front instrument panel;
Under back windshield;
