4G Free App Car GPS Tracker With Vibration Alarm Anti Thief Motor GPS Tracking

4G Free App Car GPS Tracker With Vibration Alarm Anti Thief Motor GPS Tracking
4G Free App Car GPS Tracker With Vibration Alarm Anti Thief Motor GPS Tracking 4G Free App Car GPS Tracker With Vibration Alarm Anti Thief Motor GPS Tracking 4G Free App Car GPS Tracker With Vibration Alarm Anti Thief Motor GPS Tracking

Large Image :  4G Free App Car GPS Tracker With Vibration Alarm Anti Thief Motor GPS Tracking Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Caxtrack
Certification: CE/ROHS/SGS/FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Neutral or Customized
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or Western Union or PayPal
Supply Ability: 1,000,000pcs per month
Detailed Product Description
Function: Real Time Tracking Place Of Origin: China
Position Accuracy: 5 Meters Working Voltage: DC9-80V
GPS Module: MT6261 Protocol: Concox GT06
Color: Black Support1: OEM
Support2: 4G
High Light:

5m Car GPS Tracker

,

AT6558R Car GPS Tracker

,

GPS Tracking Device Concox GT06





4G Free App Car GPS Tracker With Vibration Alarm Anti Thief Motor GPS Tracking​



11. 2.4 Support SMS text query location information;

12. 2.5 ACC ignition signal is detected, the vehicle prompted the state;

13. 2.6 Built-in vibration sensor, to achieve intelligent vehicle anti-theft;

14. 2.7 Able to set a specific number for SOS alarm and burglar alarm;





GPS Tracker Parameters:



Working Voltage: DC9-100V or 12-40V, optional.
GSM Chip: MT6261
GPS Chip: AT6558R
MPS 9486
Working temperature: ‘-20 ℃ to +70 ℃
Storage temperature: ’-40 ℃ to +80 ℃
Working Humidity: 5% to 90%
Power consumption: Average power consumption<1W, power-saving status<2mW
GPS Tracker size: 76mm*27mm*15mm
Packing size: 80mm*125mm*40mm
Interface: Power input, ACC input detection, cut off fuel circuit.
Communication band: GSM/GPRS 850MHz 900MHz 1800MHz 1900MHz



Multi-Mode Positioning: BD GPS LBS

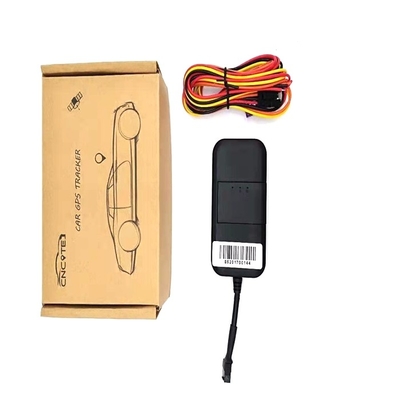

Accessories

2. 1.1 Power cable

3. 1.2 User Guide

4. 1.3 Microphone (optional)

5. 1.4 SOS button (optional)

6. 1.5 Relay (optional)

7. 2. Product Features

8. 2.1 Support global gsm850/900/1800/1900mhz, wcdma850/900/1900/2100 Mhz network frequency band;

9. 2.2 Wide operating input voltage range: 9-80VDC;

10. 2.3 GPS / LBS real-time positioning, support the computer to track the car, mobile search vehicles, and WeChat search vehicles;



15. 2.8 SOS switch button for the emergency call for help;

16. 2.9 Internal/external microphone and speakers, remote audio monitoring and voice intercom function (optional);

17. 2.10 Built-in backup battery, to achieve illegal cutting wire alarm (optional);

19. 2.12 Platform supports up to 30 days historical route track;

20. 2.13 Platform supports electronic fence, out of the regional alarm;

21. 2.14 Platform supports deviate planning route alarm;

22. 2.15 Platform supports Overspeed alarm;

23. 2.16 Platform supports serious collision warning (optional);

24. 2.17 Platform Support rollover warning (optional);

25. 2.18 Platform supports for report output;

26. 2.19 Support WEB send arm and disarm command;

4G Free App Car GPS Tracker With Vibration Alarm Anti Thief Motor GPS Tracking 0

4G Free App Car GPS Tracker With Vibration Alarm Anti Thief Motor GPS Tracking 1



4G Mini Size Free App Cheapest Cost GPS Tracker Remote Monitoring Anti-Thief DC9-80V



GPS Tracker Applications And Where you install it.



Terminal connection:



male switch, Female switch

Red(positive) Black (Negative)



1. red wire connect positive(+),black wire connect negative(-)

2. power input connector to power positive and negative connectors( make sure to connect the right connector)





GPS Tracker Main Functions:



1. Real-Time Positioning:



GPS Tracker Device will get the real-time position message and upload all status to the server system.



And will display the position on the map. you can click any of the points to know the name. locating time. and acc status. speed



GPS Time, direction, and so on.



2. Vibration alarm:



After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.



3.  Power-off alarm:



If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.



4.  Remote Car Lock



If an illegal ignition alarm receives from GPS Tracker, you can remotely cut off the vehicle circuit, so that to avoid being driven away.



2.1 Installation for the Car/Motorcycle/E-bike

The GPS tracker must be installed under professional personnel.

Note:

1) Please install the device in the hidden place as follows:

Under Front windshield;

In the front instrument panel;

Under back windshield;

2) Avoid being placed with signal radiators like reverse sensor ;

3) The device has a GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without a metal cover.



Note: The metal cover will lessen the receiving of GPS signals.



4G Mini Size Free App Cheapest Cost GPS Tracker Remote Monitoring Anti-Thief DC9-80V

Other Models:

TK003 Mini GPS Tracker

4G Free App Car GPS Tracker With Vibration Alarm Anti Thief Motor GPS Tracking 2



TK004 Mini GPS Tracker



4G Free App Car GPS Tracker With Vibration Alarm Anti Thief Motor GPS Tracking 3



FAQ:



How to use this GPS tracker?



1. Input SIM Card inside the GPS Tracker product.



2. Connecting GPS Tracker with power supply.



3.  Put a GPS Tracker device near a window or some open area waiting for signal ready.



4.  When all indicators lighted and flashed normally means GPS Tracker works. now send SMS command to

communication network, you will receive a GPS Tracker status report by SMS.
