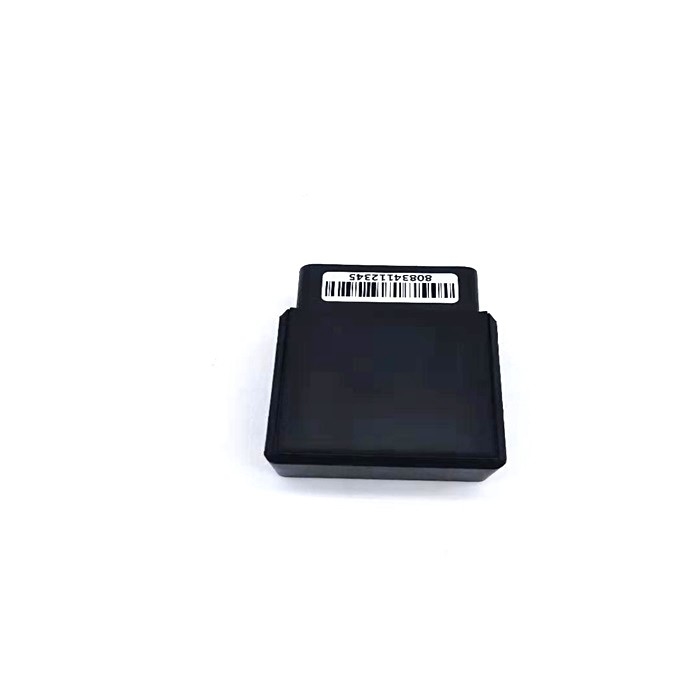

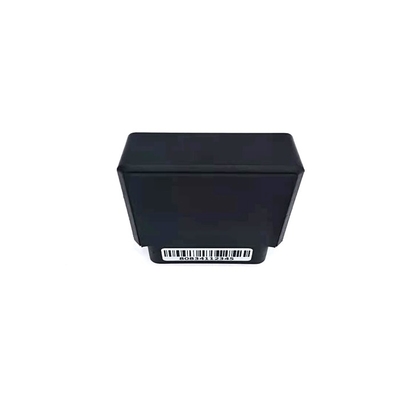

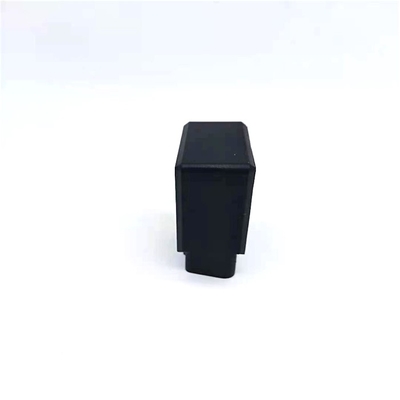

OBD2 Plug GPS Tracker Auto Diagnostic Scanner Car Tester Diagnostic Tool

OBD2 Plug GPS Tracker Auto Diagnostic Scanner Car Tester Diagnostic Tool
OBD2 Plug GPS Tracker Auto Diagnostic Scanner Car Tester Diagnostic Tool OBD2 Plug GPS Tracker Auto Diagnostic Scanner Car Tester Diagnostic Tool OBD2 Plug GPS Tracker Auto Diagnostic Scanner Car Tester Diagnostic Tool

Large Image :  OBD2 Plug GPS Tracker Auto Diagnostic Scanner Car Tester Diagnostic Tool Get Best Price

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Caxtrack
Certification: CE/ROHS/SGS/FCC
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Neutral or Customized
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or Western Union or PayPal
Supply Ability: 1,000,000pcs per month
Detailed Product Description
Warranty: 1Year Function: Real Time Tracking
Position Accuracy: 5 Meters Working Voltage: DC9-80V
GPRS: Class 12 TCP IP GPS Module: MT6261
Protocol: Concox GT06 Support1: OEM
Positioning: GPS / LBS Network Frequency Band: Wcdma850/900/1900/2100 Mhz
Name: OBD2
High Light:

GPRS OBD2 Plug GPS Tracker

,

MT6261 OBD2 Plug GPS Tracker

,

1900Mhz Car Gps Tracking Device





Cheapest OBD2 Plug GPS Tracker Auto diagnostic Scanner Car Tester Diagnostic Tool

Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Display current sensor data, including:
1.Engine RPM
2.Calculated Load Value
3.Coolant Temperature
4.Fuel System Status
5.Vehicle Speed
6.Short Term Fuel Trim
7.Long Term Fuel Trim
8.Intake Manifold Pressure
9.Timing Advance
10.Intake Air Temperature
11.Air Flow Rate
12.Absolute Throttle Position
13.Oxygen sensor voltages/associated short term fuel trims
14.Fuel System status
15.Fuel Pressure



GPS Tracker Parameters:



Content Specs
Dim 60 mm x45 mm x 23 mm
Weight 52g
Network GSM/GPRS/GPS
Band 850/900/1800/1900 MHz
GPS chip U-B
GSM module MTK60M
GPS sensitivity -162Db
GPS accuracy 5m
Time To First Fix

Cold status 45s

Warm status 35s

Hot status 1s

Work voltage 9V-80V
Storage Temp -40°C to +85°C
Operation Temp -20°C to +55°C
Humidity 5%--95%



Cheapest OBD2 Plug GPS Tracker Auto diagnostic Scanner Car Tester Diagnostic Tool



Multi-Mode Positioning: BD GPS LBS



Product accessories

 1.1 Power cable

 1.2 User Guide

 2. Product Features

 2.1 Support global gsm850/900/1800/1900mhz, wcdma850/900/1900/2100 Mhz network frequency band;

 2.2 Wide operating input voltage range: 9-80VDC;

2.3 GPS / LBS real-time positioning, support the computer to track the car, mobile search vehicles, and WeChat search vehicles;

11. 2.4 Support SMS text query location information;

12. 2.5 ACC ignition signal is detected, the vehicle prompted the state;

13. 2.6 Built-in vibration sensor, to achieve intelligent vehicle anti-theft;

16. 2.9 Internal/external microphone and speakers, remote audio monitoring and voice intercom function (optional);

17. 2.10 Built-in backup battery, to achieve illegal cutting wire alarm (optional);

18. 2.11 Built-in OBD2 remote vehicle diagnostics management system (optional);

19. 2.12 Platform supports up to 180 days historical route track;

20. 2.13 Platform supports electronic fence, out of the regional alarm;

21. 2.14 Platform supports deviate planning route alarm;

22. 2.15 Platform supports Overspeed alarm;

23. 2.16 Platform supports serious collision warning (optional);





OBD2 Plug GPS Tracker Auto Diagnostic Scanner Car Tester Diagnostic Tool 0

OBD2 Plug GPS Tracker Auto Diagnostic Scanner Car Tester Diagnostic Tool 1



Cheapest OBD2 Plug GPS Tracker Auto diagnostic Scanner Car Tester Diagnostic Tool



Frequently used commands:



Command Explain Reply content
IMEI# IMEI query IMEI: 116790246811200
IMEI,116790246811200# Set IMEI OK
FACTORY# Restore factory settings OK, The terminal will restart after 30 seconds!
RESET# restart The terminal will restart after 1 minute!
WHERE# Location query Current position!Lat:N22.589031,Lon:E113.853567,Course:0,Speed:0,DateTime:2018-07-26 10:25:55
URL# Google link query

GPS!

N4.85094 E7.06102 speed:000.0

T:07/13/19 11:37

http://maps.google.com/maps?q=N4.864553,E6.983681



Terminal connection:



male switch, Female switch

Red(positive) Black (Negative)



GPS Tracker Main Functions:

Indicators



3.5.2 Yellow indicator light -GSM

LED Status Meaning
Flash once in 2 seconds GSM initialization
Light Always GPRS is normal / already online
No light GSM sleep



OBD2 Plug GPS Tracker Auto Diagnostic Scanner Car Tester Diagnostic Tool 2



Proper Use of The Product

Install→Power on→Settings→Register

Installation: GPS antenna should be facing toward the sky, above the mounting location, must be no material (such as metal, window film) absorption of electromagnetic waves sheltered place.

Boot: Insert the SIM card correctly, connect the wire according to the diagram, then turn on the power.

Setting: Must be done, or can not do other operations, mobile phone owners send text messages to set the owner number and a specific number to the terminal SIM card.

Registration: The registration method is a different subject to dealer platforms, please consult your dealer.

OBD2 Plug GPS Tracker Auto Diagnostic Scanner Car Tester Diagnostic Tool 3

Instructions

Note: The symbol is separated by a comma, the following function parameters instruction comma is in English input state.



1. Real-Time Positioning:



GPS Tracker Device will get the real-time position message and upload all status to the server system.



And will display the position on the map. you can click any of the points to know the name. locating time. and acc status. speed



GPS Time, direction, and so on.



2. Vibration alarm:



After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.



3.  Power-off alarm:



If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.



4.  Remote Car Lock



If an illegal ignition alarm receives from GPS Tracker, you can remotely cut off the vehicle circuit, so that to avoid being driven away.



2.1 Installation for the Car

The GPS tracker must be installed under professional personnel.

Note:

1) Please install the device in the hidden place as follows:

Under Front windshield;

In the front instrument panel;

Under back windshield;



OBD2 Plug GPS Tracker Auto Diagnostic Scanner Car Tester Diagnostic Tool 4
