70mA App Anti Dismantle Ip68 4G GPS Judicial Tracking Watch

I'm Online Chat Now
Certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

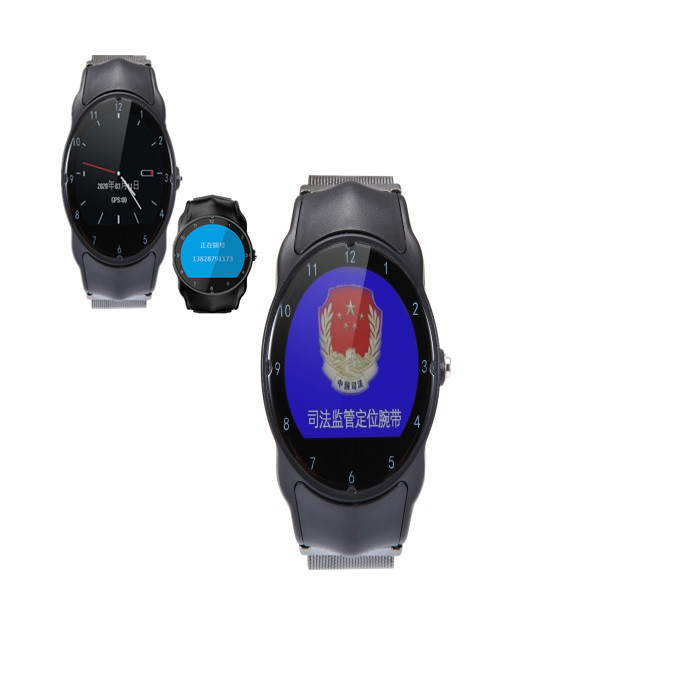

70mA App Anti Dismantle Ip68 4G GPS Judicial Tracking Watch

70mA App Anti Dismantle Ip68 4G GPS Judicial Tracking Watch
70mA App Anti Dismantle Ip68 4G GPS Judicial Tracking Watch
video play

Large Image :  70mA App Anti Dismantle Ip68 4G GPS Judicial Tracking Watch Get Best Price

Product Details:
Place of Origin: China
Brand Name: YITUOWULIAN
Certification: CE
Model Number: DDW-S-YXC-78
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Packed in carton box
Delivery Time: 2-10days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000
Detailed Product Description
Screen Resolution: 240*240 Standby Current: <3.0mA
Working Current: <70mA/5V GPS Warm Start: 1 S
GPS Positioning Accuracy: 5M-15M Working Temperature: -20℃+55℃
Heart Rate Test: -20℃+55℃ Size: L58MM*W42MM*H18MM
Screen Glass: Sapphire-like Lens Dustproof And Waterproof Grade: IP68
WIFI/GPS Antenna: Built-in WIFI: 802.11a/b/n/g
GPS Cold Start Positioning Time: 35s
High Light:

4G GPS Judicial Tracking Watch

,

70mA Judicial Tracking Watch

,

Ip68 Anti Dismantle Judicial Watch

Supervision Judicial Watch App Anti Dismantle Ip68 4G GPS Judicial Tracking Watch



1. Locking buckle is a mechanical anti-dismantle, forced dismantle alarm.

2.The wristband adopts an electronic double-loop anti-dismantle and cutting alarm.



Product parameters

WIFI/GPS Antenna: Built-in GPS positioning accuracy: 5M
GPS Cold Start positioning time: 36 s GPS warm start:1 s
Working Charging Voltage: 5V DC WIFI: 802.11a/b/n/g
Standby current:<3.0mA Working current: <70mA/5V
Battery:750mAh 3.8V Working temperature: -20℃+55℃
Storage temperature:-35℃+70℃ Dustproof and waterproof grade: IP68
Size: L58MM*W42MM*H18MM Screen Glass: Sapphire-like Lens



Functions include nine modules: home page, authority management, monitoring center, fence management, command center, alarm center, data analysis, application audit, and system management.





Supervision Judicial Watch App Anti Dismantle Ip68 4G GPS Judicial Tracking Watch



Item function
1 GPS, LBS, WIFI multiple precise positioning
2 Message and Phone call Function
3 Mechanical dismantling
4 IP68 Waterproof and Dust-proof Design
5 Low consumption and long-lasting time


1.The wristwatch housing is made of APS + PC environmental protection material, which is strong and tough, not easy to be damaged. Exterior

2.TP are using Asahi tempering lens.

3.The button is made of a metal mechanical waterproof button, which is not easy to be broken.

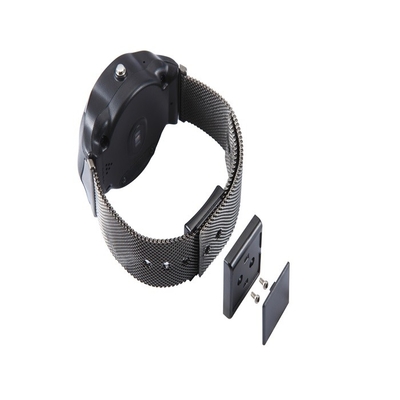

4.The strap adopts an electronic pulse anti-dis-assembly steel strap, which has passed ROHS certification; it has strong tensile resistance and the torque is not less than 360N.





Supervision Judicial Watch App Anti Dismantle Ip68 4G GPS Judicial Tracking Watch

Communication module: 4G LTE Communication network support: Telecom/Mobile/Unicom

Communication frequencies: 5 modes 13 frequencies

2G: GSM 850/900/1800/1900MHz

2G: CDMA 800MHz

3G: CDMA EVDO 800MHz

3G: TD-SCDMA 1800/2010MHz

3G: WCDMA 850/900/1900/2100MHz

4G: TDD-LTE B34/B38/B39/B40/B41

4G: TDD-LTE B1/B2/B3/B4/B5/B8

4G+ TDD-LTE B38/B39/B40/B41/B39+B41

4G+ FDD-LTE B1/B2/B1+B3







Component introduction:



①display screen

②Double loop electronic watch strap

③Locking buckle

④Charging port

⑤Turn on/off key

⑥SIM card slot

⑦Monitoring sensor

⑧power bank



70mA App Anti Dismantle Ip68 4G GPS Judicial Tracking Watch 0

70mA App Anti Dismantle Ip68 4G GPS Judicial Tracking Watch 1

User login



Enter web site in browser http://39.96.37.151:8084/ turn to the login interface, as shown in the figure, input the account number and password, and click login to enter the main interface.

70mA App Anti Dismantle Ip68 4G GPS Judicial Tracking Watch 2



Charging



Connect the charging cable with the device charging port, and the watch will show the charging status. Tip: Please use the charger and charging wire which is uniformly configured by the manufacturer. Fill it up for 6 hours at the first charge and about 3 hours charged at normal use. (Note: The device can be charged by wireless power bank, just fit the power bank to the watch, and you can use the charging cable to charge the power bank)
