Steel 10W 1800Mhz 5km/h Gps Speed Limiter For Trucks Klifts
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Function: | Speed Control | Type: | One Way |
|---|---|---|---|
| Frequency: | 850/900/1800/1900Mhz | Warranty: | 2 Years |
| Speed Limit Deviation: | ±5km/h | Operating Voltage Range: | DC9v-36v |
| Matieral: | Steel | Oversize: | 10.5*8.3*3.1 Cm |
| High Light: | 10W Gps Speed Limiter,5km/h Gps Speed Limiter,1800Mhz Automatic Speed Limiter |
||
YTWL Ethiopia Standard Gps Speed Limiter For Trucks Klifts Automatic Speed Limiter
Product Description
Vehicle speed limiter CA100F is a intelligent terminal equipment which can realize precise speed limiting for vehicles. It is not only a speed limiter but also a GPS Tracker.
The retrieved data shall be in a format that the motor vehicle inspection officer will be able to understand without requiring the services of a speed limiter specialist.
The speed limiting device shall be so designed, constructed and assembled so as to resist vibrations, corrosion, dust, humidity, petrochemicals and aging phenomena to which it may be exposed.
No malfunction or unauthorized interference shall result in an increase in engine power above the demanded by the position of the driver's accelerator. The malfunction of the speed limiter devices shall not affect the normal vehicular performance;
Application
This GPS Real Time Fleet Management with Speed Governor Function recorder is widely used for all commercial vehicles such as Trucks, Buses, Cars. All the Mechanical and Electronic vehicles will work well.
Product Function:
| Limiting Mode | Function Introduction |
| Road Section Intelligent Speed Limiting | Limit the highest vehicle speed according to the current road speed limit value.Such as: if the current road speed limit value is 80 Km/h,the product can control the highest vehicle speed is within 0. ~ 200 Km/h. If the road limit value is 100 Km/h,the product can control the vehicle speed keep within 100 Km/h. |
| Time Intelligent Speed Limiting | Limit the highest vehicle speed according to different time period . Such as: if you set the highest driving speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period. So this product can control the vehicle highest speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period as your order. |
| Vehicle Type Intelligent Speed Limiting |
Limit the highest vehicle speed according to different vehicle type. Such as: for high speed compact car ,limit within 120Km/h; for large vehicle, limit within 100Km/h; for dangerous goods transporter, limit within 60Km/h. |
| Road Type Intelligent Speed Limiting |
Limit the highest vehicle speed according to different road type. Such as: on high-speed road, speed limit within 120 100Km/h; for fast road, speed limit within 100 Km/h, State Road 60Km/h, county road limit 50Km/h, this product according to road speed limit. |
| Fixed Highest Speed Limiting | Can set only one or two highest driving speed value for the vehicle. Such as: According to the government regulations, some vehicle should not driving over 100Km/h(or any other appointed speed), the product can control the vehicle keep driving within 100Km/h(or any other appointed speed) |
| Note | All the intelligent speed limit function need platform support, it means your platform must have a database contains the speed limit value of each road ,if not , we can only supply the fixed highest speed limiter for you, it means that we can only set one or two high speed limit vale in this product. |
|
Other extension functions |
|
4. Technical Parameter
| Item | Parameter |
| Overall Size | 10.5*8.3*3.1 CM |
| Net Weight | 0.24 KG |
| Communication Module | GSM |
| Processing Chip | ARM |
| Speed limit Scope | 40-120KM/H |
| Speed Limit Deviation | ±5KM/H |
| Mechanical Bearing Capacity | 400N |
| Working Voltage | DC 9V—36V |
| Rated Power Consumption | 10W |
| Working Current | <200mA |
| Working Temperature | -40°C to +85°C |
| Operating Humidity | 20%--90% |
YTWL Ethiopia Standard Gps Speed Limiter For Trucks Klifts Automatic Speed Limiter
Application Field:
1) Vehicle Commanding and Dispatching System;
2) Heavy Construction Vehicles Tracking Device;
3) Dangerous goods transportation;
4) Passenger Car Management;
5) Logistics vehicle management.
6) Oil Tanker Monitoring and Management
YTWL Ethiopia Standard Gps Speed Limiter For Trucks Klifts Automatic Speed Limiter
After-sale service:
Warranty statement:
- The specification are subject to modification without notice.
- If the appearance and color of the product is changed, please take the actual product as the standard.
- This warranty card is only applicable to the following listed IMEI/ID machine.
- Please keep this warranty card, and please present this card and the original purchase receipts when repair service.
5. This is the basic certificate of warranty, please fill in this card carefully and keep it well.
| User Name | Contact Person | ||
| Product Model | IMEI/ID No.: | ||
| Purchasing Date | Invoice No.: |

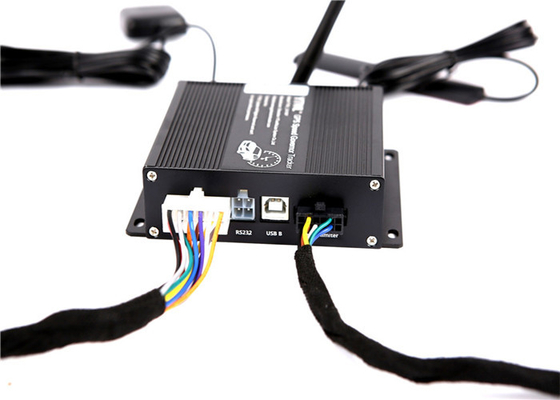

Following lines are indispensable in installation:
6: Brown line
8: Orange line, the line of the buzzer
9: Gray line, pick up the pulse line of the original car, connect the pulse line speed limiter, the speed limit function will not have too much delay, use GPS signal speed limit, there will be a delay of about 2 seconds
10: ACC line
11: Power ground
12: Positive power supply
