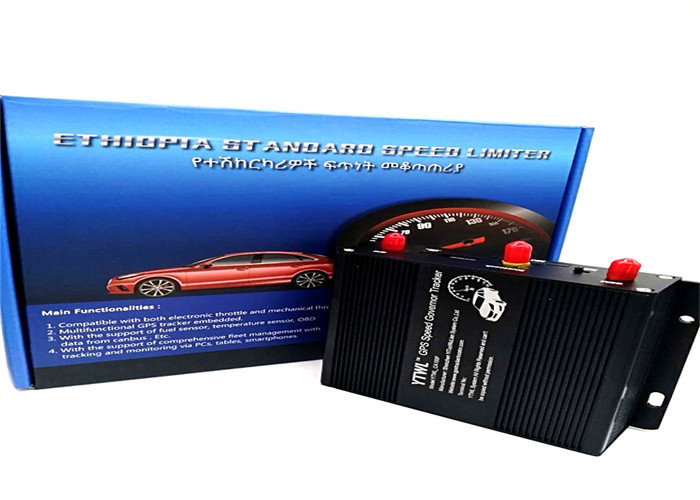

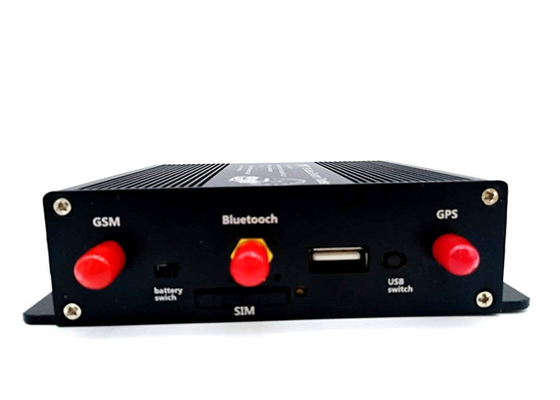

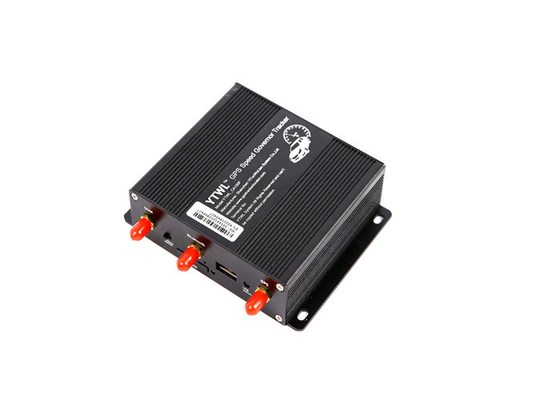

M6 Ethiopia 1000mAh 5W Single Carriageway Car Gps Governor

M6 Ethiopia 1000mAh 5W Single Carriageway Car Gps Governor
M6 Ethiopia 1000mAh 5W Single Carriageway Car Gps Governor M6 Ethiopia 1000mAh 5W Single Carriageway Car Gps Governor M6 Ethiopia 1000mAh 5W Single Carriageway Car Gps Governor M6 Ethiopia 1000mAh 5W Single Carriageway Car Gps Governor

Large Image :  M6 Ethiopia 1000mAh 5W Single Carriageway Car Gps Governor Get Best Price

Product Details:
Place of Origin: China
Brand Name: YITUOWULIAN
Certification: CE/ROHS/FCC/SGS
Model Number: CA-100F
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: 75-90
Packaging Details: Packed in carton box
Delivery Time: 2-10days
Payment Terms: L/C, Western Union, MoneyGram
Supply Ability: 10000
Detailed Product Description
Product Name: Gps Speed Limiter Network: GPS/GPRS/GSM
Oversize: 10.5*8.3*3.1 CM Net Weight: 0.24kg
Voltage: DC 9V-36V Certification: CE ROHS
Speed Limit Scope: 40-120KM/H Accessory: 8 Sets
Model No.: CA-100F
High Light:

Single Carriageway Car Gps Governor

,

1000mAh Car Gps Governor

,

5W Single Carriageway Speed Limiter

M6 Ethiopia Gps Speed Limiter Maximum Speed On A Single Carriageway Road



Vehicle speed limiters & GPS trackers

Ethiopia has provisionally agreed new rules that state speed limiters will become mandatory for all vehicles sold throughout the country.

Road Speed Limiters were developed to improve safety and the environment by controlling the speed of vehicles, thus reducing serious accidents and pollution. The basic function of the system is to limit the maximum speed of a vehicle to a pre-set level without affecting any of the performance of the vehicle.

Whether you operate a small or large fleet, you can be confident that we offer the speed limiters Approved by Ethiopian Transport Authority at the reasonable prices with a dedicated customer service.



1. Product Function:



Limiting Mode Limiting Function Introduction
Differentiate Road Section Intelligent Speed Limiting Limit the highest vehicle speed according to the current road speed limit value.Such as: if the current road speed limit value is 80 Km/h,the product can control the highest vehicle speed is within 0 ~ 80 Km/h. If the road limit value is 100 Km/h,the product can control the vehicle speed keep within 100 Km/h.
Differentiate Time Intelligent Speed Limiting Limit the highest vehicle speed according to different time period . Such as: if you set the highest driving speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period. So this product can control the vehicle highest speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period as your order.
Differentiate Vehicle Type Intelligent Speed Limiting

Limit the highest vehicle speed according to different vehicle type.
Such as: for high speed compact car ,limit within 120Km/h; for large vehicle, limit within 100Km/h; for dangerous goods transporter, limit within 60Km/h.

Differentiate Road Type Intelligent Speed Limiting

Limit the highest vehicle speed according to different road type.
Such as: on high-speed road, speed limit within 120 100Km/h; for fast road, speed limit within 100 Km/h, State Road 60Km/h, county road limit 50Km/h, this product according to road speed limit.

Fixed Highest Speed Limiting Can set only one or two highest driving speed value for the vehicle. Such as: According to the government regulations, some vehicle should not driving over 100Km/h(or any other appointed speed), the product can control the vehicle keep driving within 100Km/h(or any other appointed speed)
Note All the intelligent speed limit function need platform support, it means your platform must have a database contains the speed limit value of each road ,if not , we can only supply the fixed highest speed limiter for you, it means that we can only set one or two high speed limit vale in this product.

Other extension

functions

  1. Vehicle speed pulse detection;
  2. Intelligent ACC detection;
  3. One channel high input detection, one channel low input detection;
  4. One channel power-off control output, one channel oil-off control output;
  5. Three channels of analog input. One is used for fuel consumption data detection, another is used for the ordinary analog voltage detection, the third one is for standby;
  6. One channel RS232 defining interface;
  7. One channel RS232/RS458 compatible interface;

8) The (G-SENSOR) acceleration sensor interface reserved, can open for some customer need.



2. Application Field:

1.Vehicle Commanding and Dispatching System;
2.Heavy Construction Vehicles Tracking Device;
3.Dangerous goods transportation;


Main Features

Vehicle Speed limiter with GPS Car Tracking System are designed to reduce accidents. They limit the maximum speed of a vehicle by restricting the fuel supply to the engine; Hence Speed Limiter improves road safety with increased fuel efficiency and reduced repair cost.



Technical Parameter:



Content Specs.
Dim. 117*92*31 (mm)
Weight 280g
Network GSM/GPRS/GPS
Band 850/900/1800/1900MHz
GPS chip U-blox
GSM/GPRS Module SIM800C
Bluetooth Module BT360I
CPU STM32F105RBT6
Power IC TD1509-ADJ
Anti-jamming Strengthened Anti-jamming
GPS sensitivity -159dBm
GPS accuracy 5 m
Time To First Fix

Reacquisition 0.1s

Cold status 45s

Warm status 35s

Hot status 1s

Work Voltage DC 9V-36V
Battery Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable)
Standby work current < 40mA
Storage Temp. -40°C to +85°C
Operation Temp. -20°C to +70°C
Humidity 5%--95% non-condensing



M6 Ethiopia Gps Speed Limiter Maximum Speed On A Single Carriageway Road

M6 Ethiopia 1000mAh 5W Single Carriageway Car Gps Governor 0
M6 Ethiopia 1000mAh 5W Single Carriageway Car Gps Governor 1
M6 Ethiopia 1000mAh 5W Single Carriageway Car Gps Governor 2




3. Including

Fixed Speed Control
Reverse Speed Control
Acceleration Control
Variable Top Speed Control
Location Based Control
Over the Air Updates
Real Time Vehicle Tracking
Real Time Vehicle Health
Driver Behavior Analysis


4. Installation:

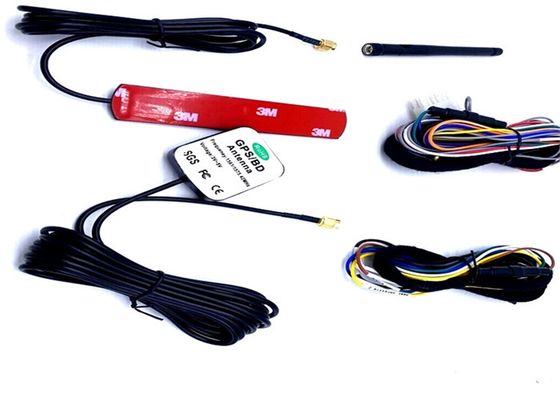

1) Product Accessory:

① Power wire

② Executor wire

③ Extension wire

④ Speaker

⑤ GPS Antenna

⑥ GSM Antenna

⑦ SIM Card Slot

⑧ User Manual



M6 Ethiopia 1000mAh 5W Single Carriageway Car Gps Governor 3

M6 Ethiopia 1000mAh 5W Single Carriageway Car Gps Governor 4



5. ADD GPS device to the platform

  About platform



1. Load the GPS platform: www.gps-go.com

User:xxxx password:123456

Note: xxxx is the platform account, need to contact with salesman to get this account name and password

For APP, search gps-go in google store or download from this QR:

M6 Ethiopia 1000mAh 5W Single Carriageway Car Gps Governor 5

2. The platform functions and report



3. Track : you can see the real-time location of the vehicle



M6 Ethiopia 1000mAh 5W Single Carriageway Car Gps Governor 6



Technical specifications for Goods

· Speed Limiter Device with Integrated GPS: As per standard set by Ethiopian Standard Agency Standard Road Vehicle-GPS integrated Speed limiter Devices Requirements

· To provide Warranty for two years for any problem that arise due to the device internal problem but this doesn’t include for damage due to external force , extreme heat, fire or voltage of electricity or when the devise is opened by any other person other than the company’s technician

· Speed Limit Equipment competency Verification Certificate is approved by the Ethiopian Road Authority to supply and install Speed Limiter with integrated GPS system.

· Committed to comply with Human rights and labour issues (e.g. fundamental principles and rights at work, occupational health and safety, fairly traded goods, etc)



Our company

M6 Ethiopia 1000mAh 5W Single Carriageway Car Gps Governor 7

M6 Ethiopia 1000mAh 5W Single Carriageway Car Gps Governor 8


 M6 Ethiopia 1000mAh 5W Single Carriageway Car Gps Governor 9
