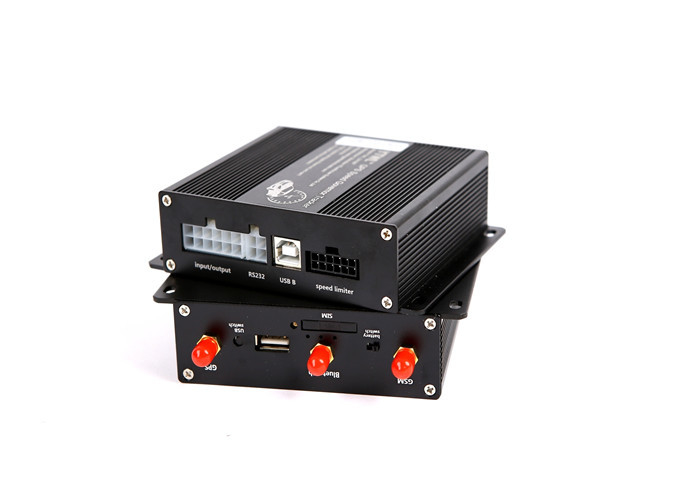

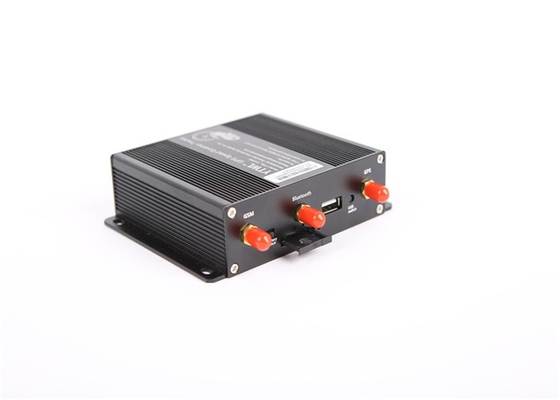

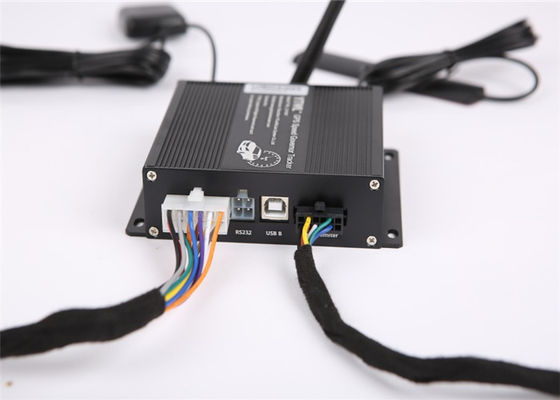

Highway 401 1000mAh 850MHz 120KM/H Gps Speed Limiter
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Gps Speed Limiter | Network: | GPS/GPRS/GSM |
|---|---|---|---|
| Oversize: | 10.5*8.3*3.1 CM | Net Weight: | 0.24kg |
| Voltage: | DC 9V-36V | Certification: | CE ROHS |
| Speed Limit Scope: | 40-120KM/H | Battery: | Rechargable |
| Accessory: | 8 Sets | ||
| High Light: | 120KM/H Gps Speed Limiter,850MHz Gps Speed Limiter,1000mAh Car Speed Limiter |
||
Ethiopia Certificate CE Gps Speed Limiter Rural Inerstate Highway 401 Speed Limiter
Speed governor or speed limiter is a device designed to limit the speed of vehicle like truck, schools bus, car forklift and so on. Most of the speed governors are fitted because of the government regulations.
Currently Kenya and Ethiopia in Africa has published standards, respectively KS 2295-1:2018 in Kenya and ES 6413:2019 in Ethiopia.
Difference between Kenya and Ethiopia standard:
In Kenya, wired portable printer is required.
In Ethiopia, wireless portable printer is required.
1. Product Function:
| Limiting Mode | Limiting Function Introduction |
| extension functions | 1) Mainly used in Kenya to control vehicle speed and further expand the market for auto speed limiters in Ethiopia. |
| 2) Vehicle speed pulse detection; it is a speed limiter and also a GPS tracker, surpassing the traditional GPS tracker. | |
| 3) One channel high input detection, one channel low input detection; | |
| 4) One channel power-off control output, one channel oil-off control output; | |
| 5) Three channels of analog input. One is used for fuel consumption data detection, another is used for the ordinary analog voltage detection, the third one is for standby; | |
| 6) One channel RS232 defining interface; | |
| 7) One channel RS232/RS458 compatible interface; | |
| 8) The (G-SENSOR) acceleration sensor interface reserved, can open for some customer need. | |
| Differentiate Road Section Intelligent Speed Limiting | Limit the highest vehicle speed according to the current road speed limit value.Such as: if the current road speed limit value is 80 Km/h,the product can control the highest vehicle speed is within 0 ~ 80 Km/h. If the road limit value is 100 Km/h,the product can control the vehicle speed keep within 100 Km/h. |
| Differentiate Time Intelligent Speed Limiting | Limit the highest vehicle speed according to different time period . Such as: if you set the highest driving speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period. So this product can control the vehicle highest speed as 50Km/h from 2.00-5:00, and 80Km/h for the other time period as your order. |
| Differentiate Vehicle Type Intelligent Speed Limiting | Limit the highest vehicle speed according to different vehicle type. |
| Such as: for high speed compact car ,limit within 120Km/h; for large vehicle, limit within 100Km/h; for dangerous goods transporter, limit within 60Km/h. | |
| Differentiate Road Type Intelligent Speed Limiting | Limit the highest vehicle speed according to different road type. |
| Such as: on high-speed road, speed limit within 120 100Km/h; for fast road, speed limit within 100 Km/h, State Road 60Km/h, county road limit 50Km/h, this product according to road speed limit. | |
| Fixed Highest Speed Limiting | Can set only one or two highest driving speed value for the vehicle. Such as: According to the government regulations, some vehicle should not driving over 100Km/h(or any other appointed speed), the product can control the vehicle keep driving within 100Km/h(or any other appointed speed) |
| Note | All the intelligent speed limit function need platform support, it means your platform must have a database contains the speed limit value of each road ,if not , we can only supply the fixed highest speed limiter for you, it means that we can only set one or two high speed limit vale in this product. |
2. Application Field:
1.Vehicle Commanding and Dispatching System;
2.Heavy Construction Vehicles Tracking Device;
3.Dangerous goods transportation;
Ethiopia Certificate CE Gps Speed Limiter Rural Inerstate Highway 401 Speed Limiter
3. Technical Parameter:
| Content | Specs. |
| Dim. | 117*92*31 (mm) |
| Weight | 280g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900MHz |
| GPS chip | U-blox |
| GSM/GPRS Module | SIM800C |
| Bluetooth Module | BT360I |
| CPU | STM32F105RBT6 |
| Power IC | TD1509-ADJ |
| Anti-jamming | Strengthened Anti-jamming |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5 m |
| Time To First Fix |
Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
| Work Voltage | DC 9V－36V |
| Battery | Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable) |
| Standby work current | < 40mA |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
Ethiopia Certificate CE Gps Speed Limiter Rural Inerstate Highway 401 Speed Limiter
3. Including
| Fixed Speed Control |
| Reverse Speed Control |
| Acceleration Control |
| Variable Top Speed Control |
| Location Based Control |
| Over the Air Updates |
| Real Time Vehicle Tracking |
| Real Time Vehicle Health |
| Driver Behavior Analysis |
Our compact and reliable Road and Engine Speed Limiter improve the safety of your vehicle.
Get Cheap Price Speed Limiter. Huge Saving. Call Now. Good Quality. OEM/ODM Accept. The Best After Sales Care. Continuous Innovation. OEM/ODM: Support. ISO9001 Certified. Types: Buses Speed Limiter, Truck Speed Limiter, Forklift Speed Limiter, Forklift Speed govnorner.
4. Installation:

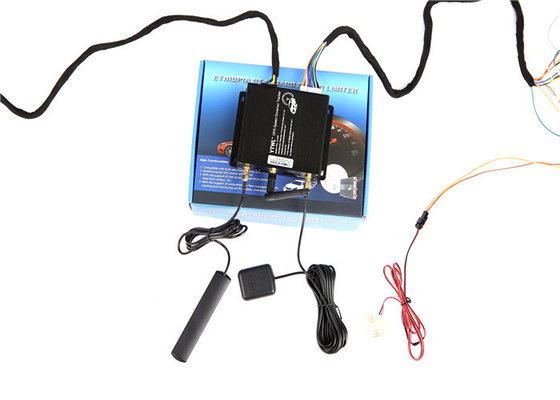

1) Product Accessory:
① Power wire
② Executor wire
③ Extension wire
④ Speaker
⑤ GPS Antenna
⑥ GSM Antenna
⑦ SIM Card Slot
⑧ User Manual
5. ADD GPS device to the platform
About platform
1. Load the GPS platform: www.gps-go.com
User:xxxx password:123456
Note: xxxx is the platform account, need to contact with salesman to get this account name and password
For APP, search gps-go in google store or download from this QR:
2. The platform functions and report
3. Track : you can see the real-time location of the vehicle
Technical specifications for Goods
· Speed Limiter Device with Integrated GPS: As per standard set by Ethiopian Standard Agency Standard Road Vehicle-GPS integrated Speed limiter Devices Requirements
· To provide Warranty for two years for any problem that arise due to the device internal problem but this doesn’t include for damage due to external force , extreme heat, fire or voltage of electricity or when the devise is opened by any other person other than the company’s technician
· Speed Limit Equipment competency Verification Certificate is approved by the Ethiopian Road Authority to supply and install Speed Limiter with integrated GPS system.
· Committed to comply with Human rights and labour issues (e.g. fundamental principles and rights at work, occupational health and safety, fairly traded goods, etc)
