One Way 10W 200mA Ethiopia 5Km/H Gps Speed Limiter

One Way 10W 200mA Ethiopia 5Km/H Gps Speed Limiter
One Way 10W 200mA Ethiopia 5Km/H Gps Speed Limiter One Way 10W 200mA Ethiopia 5Km/H Gps Speed Limiter One Way 10W 200mA Ethiopia 5Km/H Gps Speed Limiter

Large Image :  One Way 10W 200mA Ethiopia 5Km/H Gps Speed Limiter Get Best Price

Product Details:
Place of Origin: China
Brand Name: caxtrack
Certification: CE/ROHS/FCC/SGS
Model Number: YTWL_CA100F
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Detailed Product Description
Application: Buses Trucks Speed Limiting Deviation: ±5Km/H
Yellow Line A+: Input(close To The Accelerator Pedal ) Green Line A-: Input(close To The Accelerator Pedal )
Brown Line B+: Output(close To The ECU) White Line B-: Output(close To The ECU)
Rated Power Consumption: 10W Working Current: <200mA
Support: Oem Color Black: Black
High Light:

200mA Gps Speed Limiter

,

Ethiopia Gps Speed Limiter

,

10W Vehicle Speed Limiter

Ethiopia Standard CE Certificate Car Vehicle GPS Speed Limiter Speed Limiting System



1. Product Information:

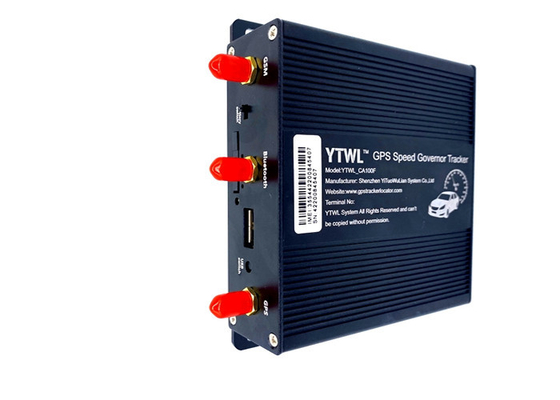

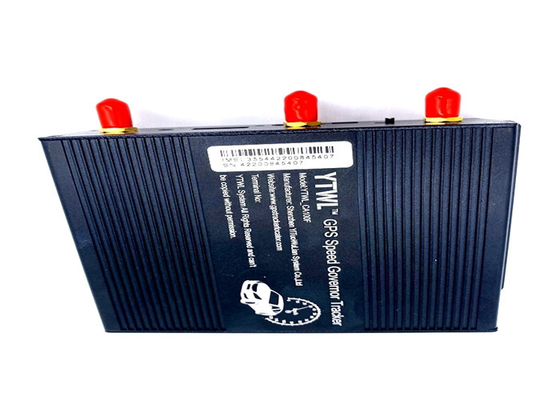

Vehicle speed limiter CA100F is a intelligent terminal equipment which can realize precise speed limiting for vehicles. It is not only a speed limiter but also a GPS Tracker.

The product adopts ARM intelligent chip, speed control precision is very

high , and the performance is reliable. It will not affect the big throttle start nor the power torque, stable and reliable; Only limit the maximum speed, the vehicle will not stall during speed limiting, and ensure the throttle pedal free movement in the right speed range.

CA100F reserves a wealth of interface, can work together with a variety of external equipment, with high compatibility and performance.





2. Parameter:

Ethiopia Standard CE Certificate Car Vehicle GPS Speed Limiter Speed Limiting System



Type one way
Function speed limiter
Voltage 12v/36v
Frequency (MHz) 20-50HZ
Place of origin Guandong, China
Model number YTWL_CA100F
Warranty 2 years
Application temperature -35℃ to -50℃
Speed range 10 to 120km/h
Speed limit deviation ± 1km/h
Rated power consumption 2w
Operating voltage range DC9V~36V



3. The install steps:



3.1 Find the vehicle accelerator pedal line harness at first ,then find the two signal lines from the six lines with multi-meter test.

There are six lines in the accelerator pedal interface , two power lines ,two ground lines , and two signal lines. Start the vehicle, step on the accelerator pedal, let the vehicle in idle state, then the signal line voltage value will change,thus you can find the signal lines.



3.2 Cut the two signal lines , and then connect <10brown line+9yellow line> and <4blue line+3white line> to the signal lines respectively.

Please note that as shown in the figure following , 10brown and 4 blue line are connected to the part close to the ECU, 9yellow and 3 white are connected close to the accelerator pedal.



3.3 Find the speed pulse signal line of the car, connect to the 9 gray line of the GPS speed limiter, connect the speed pulse line, and the speed limit delay time is within 1 second.

3.3.1 How to find the speed pulse line:

With an oscilloscope, a square wave appears when the car is started. The square wave is wider when it is static. When it is accelerated, the waveform is narrower and changes according to the speed. The output waveform is about 0.5V-12V.

3.3.2 The main position of the speed pulse line is in the following sections:

A. behind the dashboard

B. Audio host part

C. Gearbox output

D. Driving computer parts

E. ECU electric unit


3.4 After GPS SPEED LIMITER is installed completely, start the vehicle first. When the vehicle is idling, send a text message “STARTIDLE*123456”, the device will automatically learn the idle voltage, and then return the learned idle voltage value to the mobile phone. Then use the text message "SPEED*123456*xxx" to set the speed limit value, first test it with GPS speed, and the speed limit function is normal. If you can find the original car speed pulse line, you can make the car run at a constant speed of 30km/h, then press the button twice to calibrate the current pulse coefficient.



4. LED indicator

4.1 The red light is the power indicator. If it is steady, it indicates that the main power is on, and the off indicates that the main power is off.

4.2 Blue is the GPS indicator, always on indicates GPS positioning, and off means that GPS is not positioned.

4.3 Green is the system indicator. If it is steady, it indicates that the GSM network is not registered. Flashing indicates that the GSM network has been registered. Flashing twice indicates that GPRS is connected.



5. Key operation:

5.1 Press and hold for more than 3 seconds, the buzzer will sound and export data to the U disk.

5.2 Press the button 3 times continuously, the buzzer will sound and output data to the printer.

5.3 Press the button twice continuously, the buzzer sounds 2 times, and the current pulse coefficient is automatically calibrated.



Ethiopia Standard CE Certificate Car Vehicle GPS Speed Limiter Speed Limiting System



6. Bluetooth printer:

Printer power light--Blue light if it is steady light indicates Bluetooth connection is normal, if blue light is off, Bluetooth is not connected



7. SMS command:

1 FACTORY*123456 Setting back to factory default
2 CHANGEPW*123456*138138 New Password:138138
3 SPEED*123456*080 Set Speed OK: 80
4 RESET*123456 Cancel all alarm setting and re-power on
5 INTERVAL*123456*030 Set Interval 30 s OK
6 IP*123456*112.33.44.211,2332 IP SET OK
7 NUMBER*123456*13612345678 NEW ID: 13612345678
8 APN*123456*CMNET APN: CMNET
9 USERNAME*123456*username*userpass USERNAME:username, PASSWORD: userpass
10 TIMEZONE*123456*+08 TIMEZONE: +08
11 UPGRADE*123456*12.13.14.25,6660 Upgrade Main Starting!!!
12 ACCON*123456*30 Set Acc On Interval 30s OK
13 ACCOFF*123456*60 Set Acc Off Interval 60s OK
14 AT30SUM0 Set Auto track 30s OK
15 ANGLE*123456*60 Set Angle 60 OK
16 TCP Device Info
17 PLUSE*123456*450 Set pluse parameter 450 OK
18 STARTIDLE*123456 Start Idle Voltage OK: 0.360, 0.720


8. Application Field:



Fixed Speed Control
Customized fixed maximum top speed limit that increases the safety and fuel economy of your fleet.

Reverse Speed Control
Limits a vehicle's top speed in reverse. Limiting reverse top speed increases safety during a statistically high-risk category of operation.

Acceleration Control
Controls the rate at which the vehicle is able to accelerate. Inhibiting aggressive driving behaviors, increasing safety, and greatly improving fuel economy.

Upgradeable to ISA
Upgrade your VMS from fixed top speed limiting to variable top speed limiting at any time with our optional SpeedIQ kit. The upgrade offers even gOverride Mode
Configurable overrides by a variety of input methods. This capability is especially useful for Emergency Services and other who require access to full speed and acceleration at times

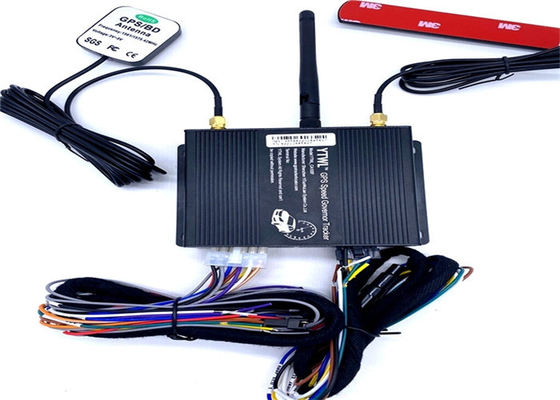

9.  Product Accessory:

Power wire
Executor wire
Buzzer (optional part )
④  GPS Antenna
SIM Card Slot
Bluetooth antenna
GSM
USB switch



10. After-sale service:

Warranty statement:

The specification are subject to modification without notice.

If the appearance and color of the product is changed, please take the actual product as the standard.

This warranty card is only applicable to the following listed IMEI/ID machine.

Please keep this warranty card, and please present this card and the original purchase receipts when repair service.

This is the basic certificate of warranty, please fill in this card carefully and keep it well.

User Name   Contact Person
Product Model   IMEI/ID No.:
Purchasing Date   Invoice No.:
