1 Speed Limiter GPS Product Specifications

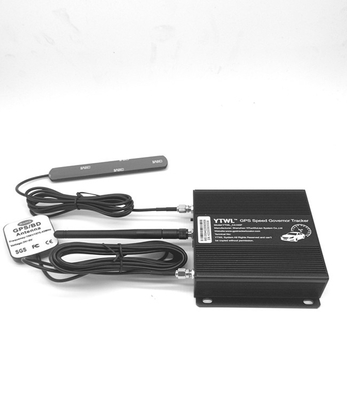

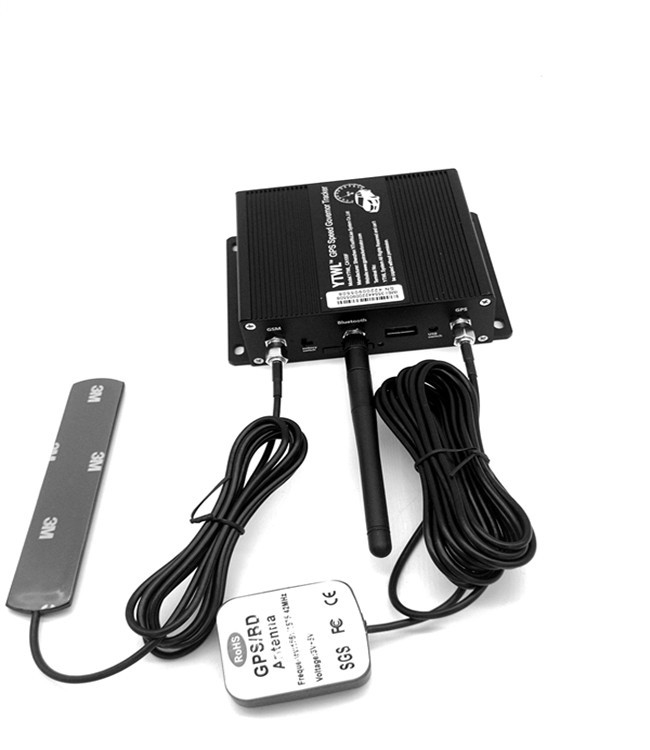

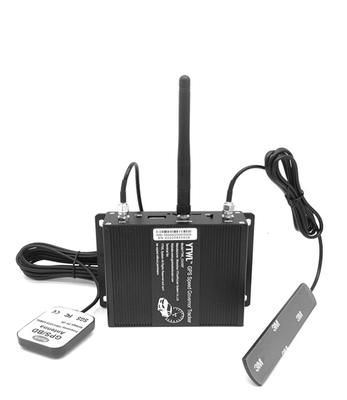

    Vehicle speed limiter CA100F is an intelligent terminal equipment which can realize precise speed limiting for vehicles. It is not only a speed limiter but also a GPS Tracker.Speed control precision is very high and the performance is reliable. It will not affect the big throttle start nor the power torque, stable and reliable. It only limits the maximum speed and the vehicle will not stall during speed limiting, and ensure the throttle pedal free movement in the right speed range.

2. Speed Limiter Requirement

GPS Vehicle Speed Limiter Speed Limit Machine IMEI and ID Number Manage System

1. The speed limiter device systems shall be "failsafe" in such a way that if the plug/s to the electronic controller is/are removed, power is disconnected or if the speed signal and/or wire is disconnected the vehicle shall automatically, default to a limp mode or the engine shall stall or return to idle or, at least, and thus shall not be able to be driven in excess of thirty kilometers per hour. (30km/h);
2. For the purpose of anti-tampering of the setting of the "set speed" of a speed limiter device, the connection points on a speed limiter device for adjustment of "set speed" shall be properly sealed and protected from unauthorized adjustment.
3. The device shall support hand held portable printer (Bluetooth, WiFi, etc) enabled;
4. The speed limiter device system shall be able to be verified. Authenticated and tested whilst the vehicle is "on" the road.
5. Speed limiter devices shall be so constructed that the vehicle may not be accelerated by the operation of the acceleration devices, such as the accelerator pedal, when the vehicle is running at its set speed.
6. The speed limiter function or the speed limiter device shall allow normal accelerator control for the purpose of gear changing.

• How to connect the relay?

          Answer:Relay have 4 lines:87A and 30PIN are respectively connected to the two ends of the cut oil pump line;86 connects 12V or 24V power line in series;85PIN connects to the white line of the GPS speed limiter.Note: Control the speed of the speed limiter with above way, the delay of the speed limit will be relatively large. For example, if the speed limit is set to 40km/h, the car can also run up to 50km/h during acceleration. So, find the car pulse speed line and calibrate the pulse speed, the delay will be much smaller.For vehicles with mechanical throttle, if want to limit the speed without delay, need connect a solenoid valve and use a relay to control the solenoid valve to achieve the purpose of real-time speed limit.

• Does the speed limiter have the managment fleet platform?
