GPS Highway Car Speed Limit Speed Limiter with ISO and CE Certification Factory Support
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | CA100F Speed Limiter | Processing Chip: | ARM |
|---|---|---|---|
| Network: | GSM/GPRS/GPS | Anti-jamming: | Strengthened Anti-jamming |
| Real-time Monitoring: | Support | GPS Accuracy: | 5 M |
| Timing Tracking: | Support | GPS Precision: | 10m（2D RM） |
| Time To First Fix: | Reacquisition 0.1s | ||
| High Light: | ARM Car Speed Limiter,GPS Car Speed Limiter,GPRS Car Speed Restrictor |
||
GPS Highway Car Speed Limit Speed Limiter with ISO and CE Certification Factory Support
1 Speed Limiter GPS Product Specifications

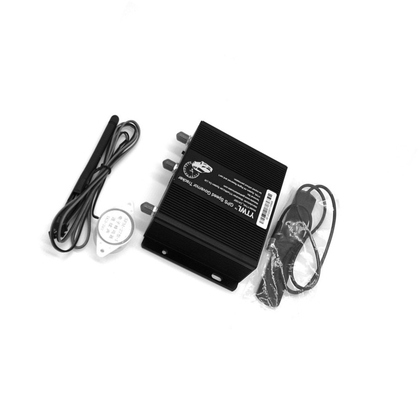

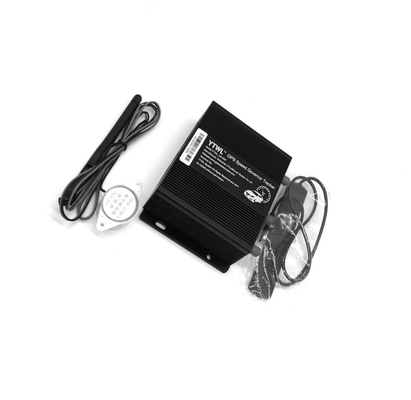

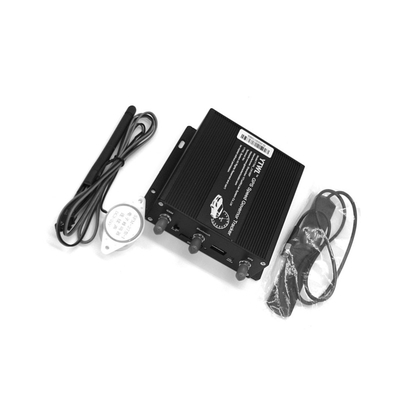

Vehicle speed limiter CA100F is an intelligent terminal equipment which can realize precise speed limiting for vehicles. It is not only a speed limiter but also a GPS Tracker.Speed control precision is very high and the performance is reliable. It will not affect the big throttle start nor the power torque, stable and reliable. It only limits the maximum speed and the vehicle will not stall during speed limiting, and ensure the throttle pedal free movement in the right speed range.
| Dim. | 117*92*31 (mm) |
| Band | 850/900/1800/1900MHz |
| GPS chip | U-blox |
| Bluetooth Module | BT360I |
| Work Voltage | DC 9V－36V |
| Battery | Rechargeable 3.7V |
| Standby work current | < 40mA |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
| CPU | STM32F105RBT6 |
2. Speed Limiter Requirement
GPS Highway Car Speed Limit Speed Limiter with ISO and CE Certification Factory Support
- The device should provide functional check facility by which the set speed and functioning can be checked by the field and other concerned authorities;
- Movement Alert: Send SMS to the device to start the movement alert function. When the vehicle is moving, the device will send the movement alert to all authorized numbers.
- Remote Monitoring: In anywhere and anytime, call the phone number in the device, when it connects, you can monitor the sound around 5 meter;
- The speed limiter device system shall be able to be verified. Authenticated and tested whilst the vehicle is "on" the road.
- Auto Track: You can set up auto track by SMS or on-line positioning platform.
- The speed limiting function shall be performed progressively in such a mariner that excessive juddering or discomfort is not caused
3.Speed Limiter Limp mode testing:
GPS Highway Car Speed Limit Speed Limiter with ISO and CE Certification Factory Support
First, send command: openpulse*123456 When cut off the car speed pulse line, the car will be limit to max speed is 30km/h, this speed will use the GPS speed.When remove the whole white head connector, the car also will limit to 30km/h.Note: If it is a mechanical throttle car, the white wire of the BH (black head harness) must also be connected to the relay. When the WH (White head harness) is removed, the white
wire will control the relay to limit the speed, and the black wire of BH also need to connect the GND of the car.
4.Speed Limiter FAQ
- How to connect the relay?
Answer:Relay have 4 lines:87A and 30PIN are respectively connected to the two ends of the cut oil pump line;86 connects 12V or 24V power line in series;85PIN connects to the white line of the GPS speed limiter.Note: Control the speed of the speed limiter with above way, the delay of the speed limit will be relatively large. For example, if the speed limit is set to 40km/h, the car can also run up to 50km/h during acceleration. So, find the car pulse speed line and calibrate the pulse speed, the delay will be much smaller.For vehicles with mechanical throttle, if want to limit the speed without delay, need connect a solenoid valve and use a relay to control the solenoid valve to achieve the purpose of real-time speed limit.
- How to set the speed limit value?
Answer:After GPS SPEED LIMITER is installed completely, start the vehicle first. When the vehicle is idling, send a text message “STARTIDLE*123456”, the device will automatically learn the idle voltage, and then return the learned idle voltage value to the mobile
phone---- this is very important!Then use the text message "SPEED*123456*40" to set the speed limit value, first test it with GPS speed, and the speed limit function is normal.
- How to calibrate the pulse coefficient
Answer:You can find the original car speed pulse line to be connected with the device’s pulse line.Then you can make the car run at a constant speed of 30km/h, then press the button twice to calibrate the current pulse coefficient.Please be noted with: same vehicles have the same pulse coefficient.The default pulse coefficient is 450.If you already know the pulse coefficient of the vehicle, you can set it directly by SMS.PULSE*123456*26 (Note: this command sets the pulse coefficient to 26).
5 Speed Limiter SMS Command:
| 1 | FACTORY*123456 | Setting back to factory default |
| 2 | CHANGEPW*123456*138138 | New Password:138138 |
| 3 | SPEED*123456*080 | Set Speed OK: 80 |
| 4 | RESET*123456 | Cancel all alarm setting and re-power on |
| 5 | INTERVAL*123456*030 | Set Interval 30 s OK |
| 6 | IP*123456*S121.201.110.106,5300 | IP SET OK |
| 7 | NUMBER*123456*13612345678 | NEW ID: 13612345678 |
| 8 | APN*123456*CMNET | APN: CMNET |
| 9 | ACCON*123456*30 | Set Acc On Interval 30s OK |
| 10 | TCP | Device Info |
| 11 | PULSE*123456*450 | Set PULSE parameter 450 OK |
| 12 | print*123456*010 | change the Bluetooth print time is 10 minutes |
