Home ProductsGps Speed Limiter

Electronic GPS Vehicle Speed Limiter With Ethiopia Standard Bluetooth Printer

I'm Online Chat Now
Certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
China SHENZHEN YITUOWULIAN SYSTEM CO.,LTD certification
We are very satisfied with your CA-V1 and CA-V1, CA-V6W for professional customers, CA-V6W is a very good product on the motorcycle,thanks!

—— Touya_ra

now we already used your company CA-V6 more than 2000Pcs, thanks for your company best support, we will expend this business in all of the Kenya

—— Nancy Saruni

your device CA-V1 is very good for our customer project, it is so proffesional , we can use in refrigerator car which can test the temperature ,thanks

—— Rajesmay

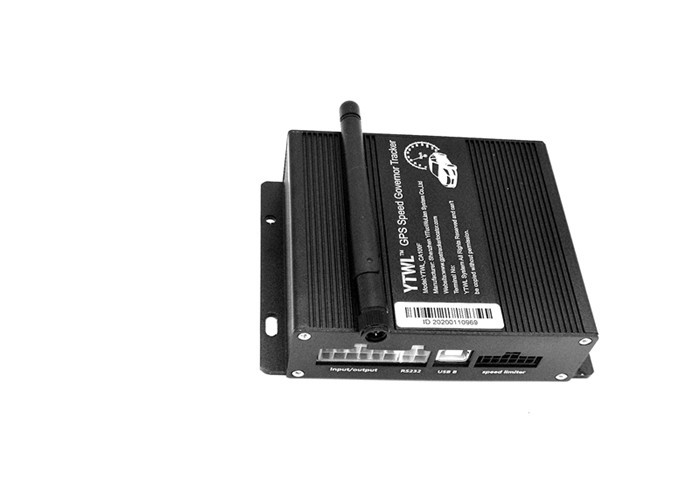

Electronic GPS Vehicle Speed Limiter With Ethiopia Standard Bluetooth Printer

Electronic GPS Vehicle Speed Limiter With Ethiopia Standard Bluetooth Printer
Electronic GPS Vehicle Speed Limiter With Ethiopia Standard Bluetooth Printer Electronic GPS Vehicle Speed Limiter With Ethiopia Standard Bluetooth Printer

Large Image :  Electronic GPS Vehicle Speed Limiter With Ethiopia Standard Bluetooth Printer Get Best Price

Product Details:
Place of Origin: China
Brand Name: cartrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA100F
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Detailed Product Description
Processing Chip: ARM Network: GSM GPRS 3G 4G WCDMA LTE
Color: Black Engine Cut Off: Control Engine Remotely
OEM: Accept Function: Controlling Speed, Vehicle Speed Limiter
Product Name: Overspeed Governor GPS: GPS And GPRS
Type: Speed Governor Transportation: Air Transportation
High Light:

vehicle gps tracking device

,

car gps tracker device



Electronic GPS Vehicle Speed limiter with Ethiopia Standard Bluetooth Printer



1 Product Specifications

Dim. 117*92*31 (mm)
Weight 280g
Network GSM/GPRS/GPS
Band 850/900/1800/1900MHz
GPS chip U-blox
GSM/GPRS Module SIM800C
Bluetooth Module BT360I
CPU STM32F105RBT6
Power IC TD1509-ADJ
Anti-jamming Strengthened Anti-jamming
GPS sensitivity -159dBm
GPS accuracy 5 m
Technicians manua
  • Principles of operation covering details of how the road speed limiter works
  • Fitting Instructions
  • Calibration or programming instructions
  • Inspection and functionality checks
  • Maintenance and troubleshooting instructions
  • Parts list
  • Manufacturers name and authorized trade mark
  • Model

2. Speed Limiter General Requirements

Electronic GPS Vehicle Speed limiter with Ethiopia Standard Bluetooth Printer



  1. Speed limiter devices shall be calibrated and maintained in a good working order; and capable to limit the speed of a vehicle at the set speed as stipulated by the regulatory body;
  2. The speed limiter device systems shall be "failsafe" in such a way that if the plug/s to the electronic controller is/are removed, power is disconnected or if the speed signal and/or wire is disconnected the vehicle shall automatically, default to a limp mode or the engine shall stall or return to idle or, at least, and thus shall not be able to be driven in excess of thirty kilometers per hour. (30km/h);
  3. The speed limiter function or road speed limiter shall be EMCcompatible or shall have Anti-Jammer mechanism;
  4. Speed limiter device shall be so designed, constructed and assembled and fitted to the vehicle to make it maximum tamper proof and fail safe, against various factors such as disconnection / failure of various components e.g. power supply, speed sensor, mechanical actuator system, linkages etc. or any unauthorized modification and adjustment to the system;
  5. The road speed limiter device shall allow normal acceleration and full engine power up to the set maximum speed limit when the limitation function comes to play;
  6. The speed limiter device system shall be able to be verified. Authenticated and tested whilst the vehicle is "on" the road.
  7. The speed limiter function shall be obtained once the vehicle speed reaches the set maximum speed regardless of the position action on the accelerator a driver may apply.



Electronic GPS Vehicle Speed limiter with Ethiopia Standard Bluetooth Printer

  1. At minimum name of the manufacturer; serial number. month and year of manufacture details shall be marked on each speed limiter device;
  2. The manual shall include at minimum the necessary information;
  3. Technicians manual shall include at minimum the necessary information;




3  Application Field:

  1. For School Bus ;
  2. For tour bus and passenger car management ;
  3. For logistics vehicle monitoring and management ;
  4. For tank truck monitoring and management.
  5. For limit the speed of vehicles

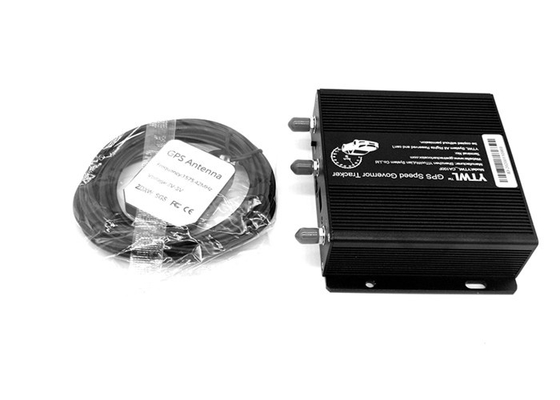

4 Parts list:

     Power wire
     Executor wire
     Buzzer (optional)
     GPS Antenna
     GSM Antenna
     SIM Card Slot
     Bluetooth printer
     Bluetooth antenna

Electronic GPS Vehicle Speed Limiter With Ethiopia Standard Bluetooth Printer 0Electronic GPS Vehicle Speed Limiter With Ethiopia Standard Bluetooth Printer 1
