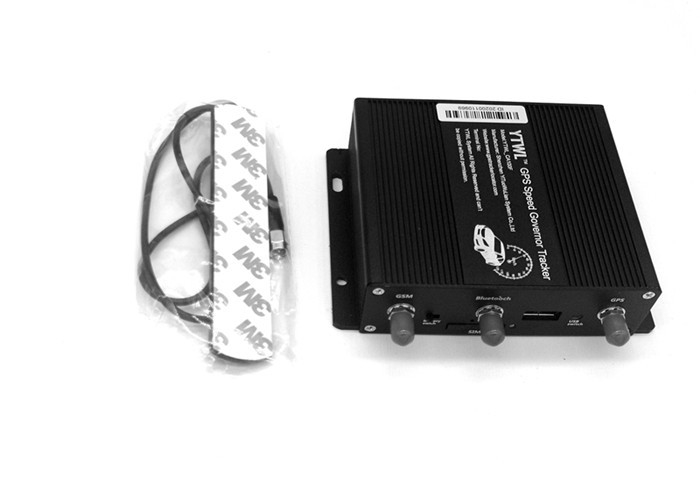

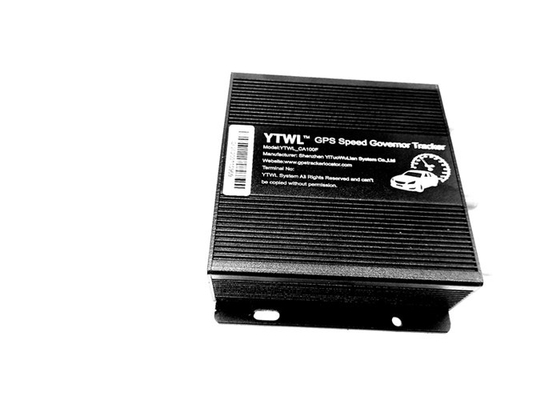

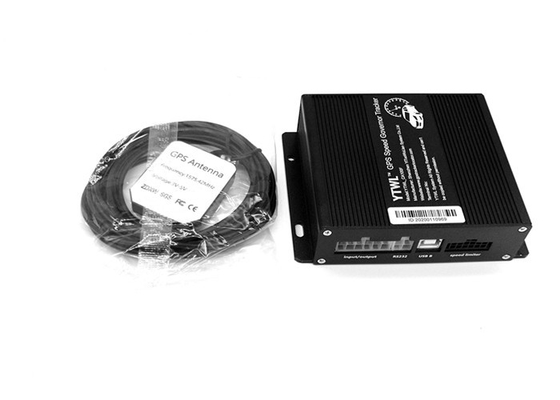

Speed Limiting Device Speed Gonervor ARM Processing Chip With Extension Wire

Speed Limiting Device Manufacturing Speed Gonervor with Ethiopia Standard

1. General requirements

1. Speed limiter devices shall have a built in / integrated GPS.
2. Speed limiter devices shall be designed, constructed, assembled and fitted to the vehicle that it will perform satisfactorily, despite the vibrations and temperature to which it may be subjected.
3. For the purpose of anti-tampering of the setting of the "set speed" of a speed limiter device, the connection points on a speed limiter device for adjustment of "set speed" shall be properly sealed and protected from unauthorized adjustment.
4. The speed limiter function shall be obtained once the vehicle speed reaches the set maximum speed regardless of the position action on the accelerator a driver may apply.
5. The road speed limiting device shall have in built features that allow functionality checks and shall have special inspection devices for this purpose to facilitate the checking when the vehicle is not in motion.
6. The device should provide functional check facility by which the set speed and functioning can be checked by the field and other concerned authorities.

2 Product Specifications

3. Speed Limiter GPRS Requirements

Speed Limiting Device Manufacturing Speed Gonervor with Ethiopia Standard

1. GPRS Of speed limiter shall have a minimum of Multi-slot Class 8 (4Rx, 1Tx, 5 slot Max.);
2. GPRS Of speed limiter shall Support at minimum four coding schemes (CS-1, CS2, CS-3 and CS-4) download speed at least speed 85.6kbps upload speed is at least 21.4kbps;
3. Positioning Accuracy of GPS shall be Less than 5 meters at 20 RMS;
4. GSM Frequency of the speed limiter GPS shall be based on national telecommunication requirement;
