Extension Wire Engine Speed Control Governor Steel Material 0.3 Watt YTWL_CA100F
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Vehicle Speed Limiter | Processing Chip: | ARM |
|---|---|---|---|
| Product Accessory:: | Extension Wire | Speed Range: | 1 To 200km/h |
| Material: | Steel | OEM: | Accept |
| Warranty Time: | 2 Years | Transportation: | Air Transportation,Air Sea Express |
| High Light: | vehicle gps tracking device,car gps tracker device |
||

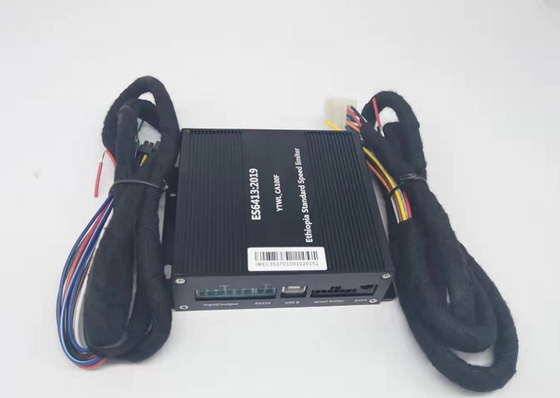

YTWL_CA100F Electrical Speed Limiter with Ethiopia Standard Road Speed Gonorver
1. Speed Limiter GPRS requirement
- GPRS Of speed limiter shall have a minimum of Multi-slot Class 8 (4Rx, 1Tx, 5 slot Max.)
- GPRS Of speed limiter shall Support at minimum four coding schemes (CS-1, CS2, CS-3 and CS-4) download speed at least speed 85.6kbps upload speed is at least 21.4kbps
- Positioning Accuracy of GPS shall be Less than 5 meters at 20 RMS.
- GSM Frequency of the speed limiter GPS shall be based on national telecommunication requirement
2 Product Specifications
| Color | Black | Application | free android and IOS app |
| Input Fuse | 5A | CPU | TI:MSP430F5419(100MHz) |
| Battery | Lithium battery :400mA( working time is about 3.5 hours) | Warranty | 2 years |
| Item Name | Top selling shine | Function | camera gps fleet tracker |
| Working Temperature | Anna Shi | MOQ | 5 Pieces |
| Recording and tracking |
|
GPS Module | GPS chip set: SiRF Star III Frequency: L1, 1575.42 MHz Number of Channel: 20 Reacquisition: 0.1 sec, average Hot boot: 2 sec., average Warm boot: 38 sec., average Cold boot: 44 sec., average Altitude limit: 18000 m Velocity limit: 515 m/s |
| TESTS |
Five samples of speed limiter device shall be provided - four samples for the and one sample as fitted on the vehicle for carrying out.the tests prescribed in clause 8.5. In the case of add-on or on-board system built in the vehicle, the involved system and its components should be provided separately for the performance and endurance tests |
Input I/O | 8 I/O input/output Port 1 main power check 1 port use to check the engine ( ACC check) 1 port use to SOS 1 analog Input port( Fuel sensor) 1 Output port ( Car engine control ) 3 Extend ports ( Input/Output control by software) |
3. Speed Limiter Requirements

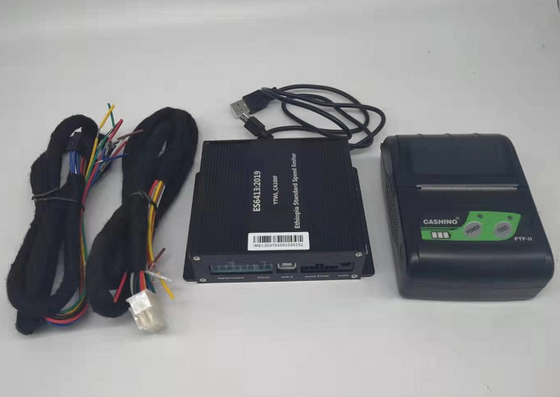

YTWL_CA100F Electrical Speed Limiter with Ethiopia Standard Road Speed Gonorver
- The speed limiter function or road speed limiter shall be EMCcompatible or shall have Anti-Jammer mechanism;
- Speed limiter devices shall be so constructed that the vehicle may not be accelerated by the operation of the acceleration devices, such as the accelerator pedal, when the vehicle is running at its set speed;
- The speed limiter function or the speed limiter device shall allow normal accelerator control for the purpose of gear changing;
- Speed limiter device shall be so designed, constructed and assembled and fitted to the vehicle to make it maximum tamper proof and fail safe, against various factors such as disconnection / failure of various components e.g. power supply, speed sensor,
mechanical actuator system, linkages etc. or any unauthorized modification and adjustment to the system; - Speed limiter devices shall be designed, constructed, assembled and fitted to the vehicle that it will perform satisfactorily, despite the vibrations and temperature to which it may be subjected;
- GSM Frequency of the speed limiter GPS shall be based on national telecommunication requirement.
YTWL_CA100F Electrical Speed Limiter with Ethiopia Standard Road Speed Gonorver
- The speed limiter device systems shall be "failsafe" in such a way that if the plug/s to the electronic controller is/are removed, power is disconnected or if the speed signal and/or wire is disconnected the vehicle shall automatically, default to a limp mode
or the engine shall stall or return to idle or, at least, and thus shall not be able to be driven in excess of thirty kilometers per hour. (30km/h) ; - The speed limiter function shall be independent of the condition or soundness of the speedometer ;
- When the vehicle, running at its set speed and with the driver's accelerator at its position of maximum travel, is subject to an accelerating force due to a down gradient,the limiter shall control speed by restricting the engine power to the limiter's minimum
engine power control setting; - The input speed signal shall be obtained from global navigating system (GNS) or speedometer vehicle speed signal or a converted speed signal from vehicle gearbox or from other separately installed sensor as deemed appropriate.
4. Technical Parameters:

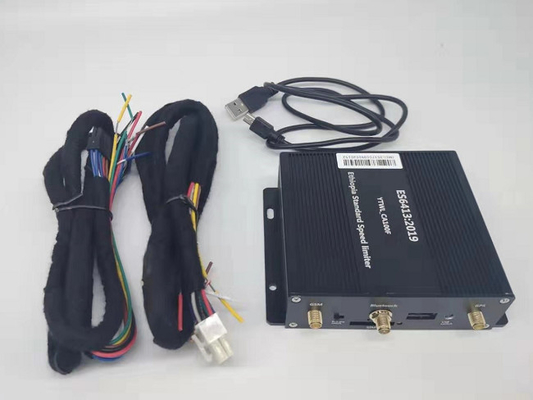

YTWL_CA100F Electrical Speed Limiter with Ethiopia Standard Road Speed Gonorver
| Item | Parameters |
| Overall Size | 20.0 X 9.2 X 4.5 CM |
| Host Net Weight | 0.4 KG |
| Processing chip | STC |
| Speed Limiting Zone | 20-200 Km/H |
| Speed Limiting Deviation | ±5Km/H |
| Mechanical Bearing Capacity | 400N |
| Working Voltage | 9-36 V |
| Rated Power Consumption | <0.3 W |
| Working Current | <60 mA |
5 Application Field:
- For large vehicle management and dispatching system ;
- For tour bus and passenger car management ;
- For logistics vehicle monitoring and management ;
- For tank truck monitoring and management.
- For Dangerous goods transportation
