9V-36V Speed Governor Car Speed Limiter With Speed Recording / Reporting Devices

9V-36V Speed Governor Car Speed Limiter With Speed Recording / Reporting Devices
9V-36V Speed Governor Car Speed Limiter With Speed Recording / Reporting Devices 9V-36V Speed Governor Car Speed Limiter With Speed Recording / Reporting Devices 9V-36V Speed Governor Car Speed Limiter With Speed Recording / Reporting Devices

Large Image :  9V-36V Speed Governor Car Speed Limiter With Speed Recording / Reporting Devices Get Best Price

Product Details:
Place of Origin: China
Brand Name: cartrack
Certification: CE/ROHS/FCC/SGS
Model Number: CA100F
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiation
Packaging Details: Packed in carton firstly
Delivery Time: 1-10 working days after received your payment
Payment Terms: T/T or western Union or paypal
Supply Ability: 100,000pcs per month
Detailed Product Description
Product Name: CA100F Speed Limiter Processing Chip: ARM
Alert: Overspeed Alert Network: GSM GPRS 3G 4G WCDMA LTE
Product Accessory:: Extension Wire Color: Black
Engine Cut Off: Control Engine Remotely Function: Controlling Speed, Vehicle Speed Limiter
Working Voltage: 9V-36V Working Current: <200mA
High Light:

vehicle gps tracking device

,

car gps tracker device



Ethiopia Standard Car Speed Limiter with Speed Recording and Reporting Devices



1 Product Specifications

Dim. 117*92*31 (mm)
Weight 280g
Network GSM/GPRS/GPS
Band 850/900/1800/1900MHz
GPS chip U-blox
GSM/GPRS Module SIM800C
Bluetooth Module BT360I
CPU STM32F105RBT6
Power IC TD1509-ADJ
Anti-jamming Strengthened Anti-jamming
GPS sensitivity -159dBm
GPS accuracy 5 m
GPRS requirement GPRS Of speed limiter shall have a minimum of Multi-slot Class 8
GPRS Of speed limiter shall Support at minimum four coding schemes (CS-1, CS
2, CS-3 and CS-4) download speed at least speed 85.6kbps upload speed is at least 21.4kbps
Positioning Accuracy of GPS shall be Less than 5 meters at 20 RMS

2. Speed Limiter Requirement

Ethiopia Standard Car Speed Limiter with Speed Recording and Reporting Devices



  1. The speed limiter devices shall be of industrial grade and designed for automotive application;
  2. All components necessary for full function of the speed limiter or the Speed limiter device shall be energized whenever the vehicle is being driven;
  3. The device should provide functional check facility by which the set speed and functioning can be checked by the field and other concerned authorities;
  4. The speed limiter device system shall be equipped with a system which shall accept an external device for testing the speed limiter and verifying its functionality;
  5. All speed limiter device system shall able to be checked for accuracy and functionality;
  6. The speed limiter device system shall be able to be verified. Authenticated and tested whilst the vehicle is "on" the road.
  7. The input speed signal shall be obtained from global navigating system (GNS) or speedometer vehicle speed signal or a converted speed signal from vehicle gearbox or from other separately installed sensor as deemed appropriate



Ethiopia Standard Speed Limiting Device Speed Limiter Real-time Online Tracking​

  1. Road speed limiting device shall have a users and technical's manual, both written in English/Amharic ;
  2. The recorder shall incorporate a combination of an onboard and off-board mechanism for recording and storing the speed of the vehicle;
  3. The speed shall be recorded in Km/h at not more than five seconds interval;
  4. The retrieved data shall clearly and in an unambiguous manner display the date (dd Imm Iyyyy) of recording.




3  Application Field:

  1. For School Bus ;
  2. For tour bus and passenger car management ;
  3. For logistics vehicle monitoring and management ;
  4. For tank truck monitoring and management.
  5. For limit the speed of vehicles

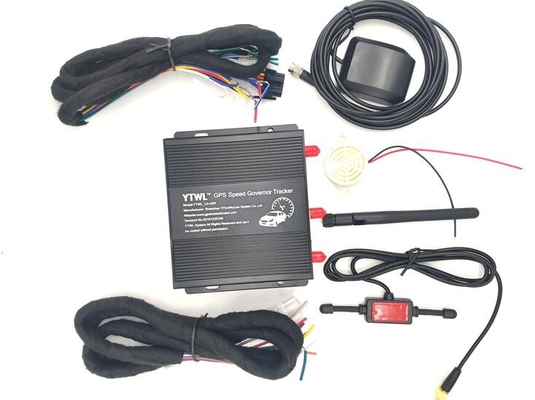

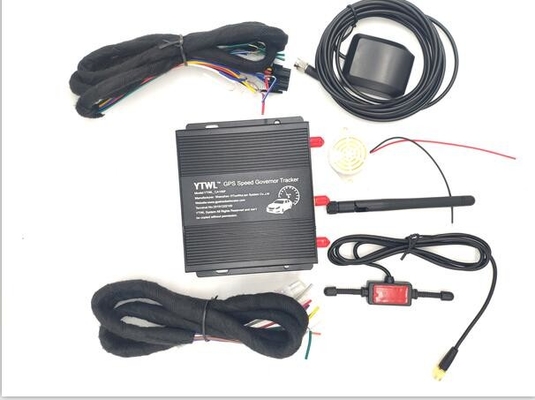

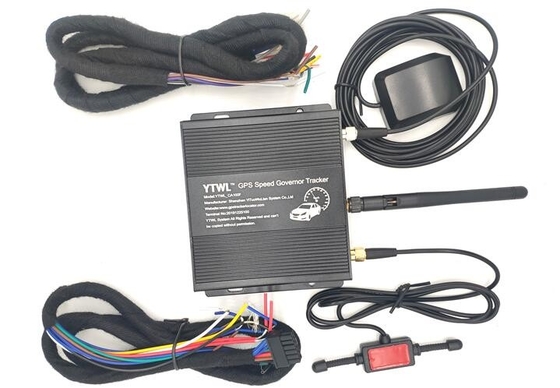

4 Parts list:

     Power wire
     Executor wire
     Buzzer (optional)
     GPS Antenna
     GSM Antenna
     SIM Card Slot
     Bluetooth printer
     Bluetooth antenna
