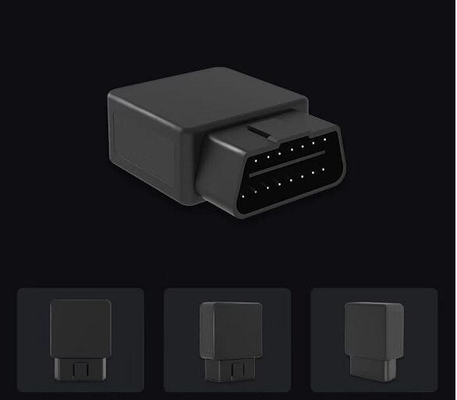

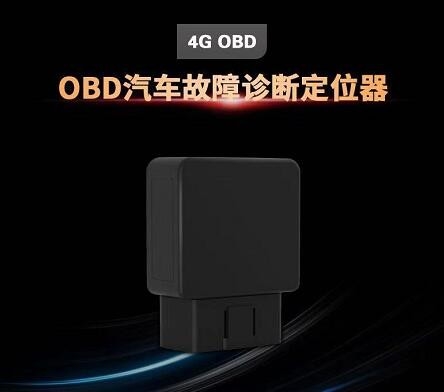

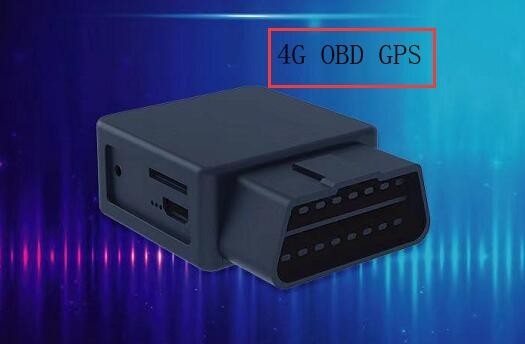

4G GPS Car Tracker OBD Vehicle GPS Tracking Device With Diagnostic Function

China 4G GPS Car Tracker OBD Vehicle GPS Tracking Device With Diagnostic Function supplier
4G GPS Car Tracker OBD Vehicle GPS Tracking Device With Diagnostic Function supplier 4G GPS Car Tracker OBD Vehicle GPS Tracking Device With Diagnostic Function supplier 4G GPS Car Tracker OBD Vehicle GPS Tracking Device With Diagnostic Function supplier 4G GPS Car Tracker OBD Vehicle GPS Tracking Device With Diagnostic Function supplier 4G GPS Car Tracker OBD Vehicle GPS Tracking Device With Diagnostic Function supplier

Large Image :  4G GPS Car Tracker OBD Vehicle GPS Tracking Device With Diagnostic Function

Product Details:

Place of Origin: MADE IN CHINA
Brand Name: Cartrack
Certification: CE ROSH TAC FCC
Model Number: OBD-4G

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiate
Packaging Details: carton
Delivery Time: 2-5 working days normally
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 100000 pcs / Month
Contact Now
Detailed Product Description
Working Voltage: 9-80V Application: Car / Vehicle Etc
Network: 4G Bands: DIFFerent Country Has Different Bands
Inventory: 3000 Pcs Normally MOQ: 10 Pcs
OEM OR NOT: YES Warranty: 1 Years
Type: Gps Tracker Use: Other

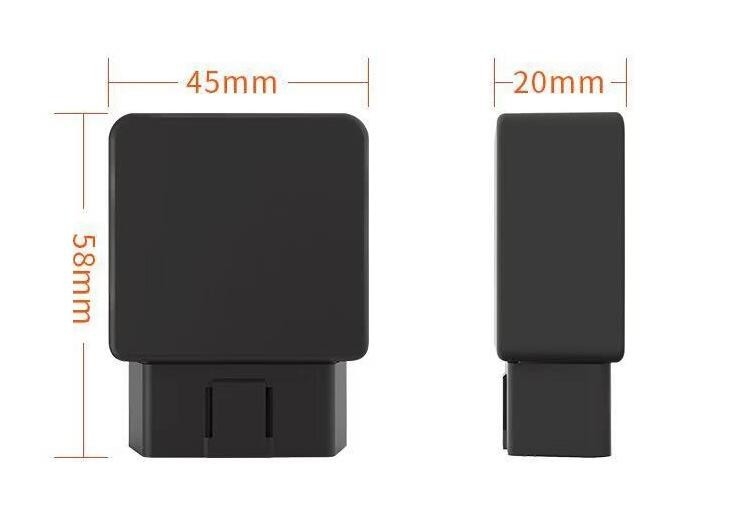

Function: GPS Tracker Size: 45*45*13.7 Mm
Weight: 50g Color: Black



  4G GPS Car Tracker OBD Vehicle GPS Tracking Device With Diagnostic Function





1)Main parameters:

1)The tracker use MT6276A solution.

2), Frequency band:

GSM:850/900/1800/1900/Quad band

3G: optional 900MHz+2100MHz, or 1900MHz+ 850MHz (choose one from the two)

GPRS: Class12, TCP/IP

3).Working Voltage:9-40V DC

4).Working current:≈22mA (12vDC)

5).Working current:≈12mA (24vDC)

6).GPS locating time:Cold start≈38s(Open sky)

Warm start≈32s

Hot start≈2s(Open sky)

7).GPS Precision:10m(2D RM)

8).Working temperature:-20℃~+70℃

9).Working humidity:20%~80%RH

10).Measurement:87(L)×43(W)×14(H)mm

Main SMS COMMAND LIST





2)4G GPS Car tracker CA-V6S-4G Vehicle GPS Tracking Device cut oil recovery oil



1. Inlayed 3D accelerator,moving and static state, energy smart.
2. Admin checks GOOGLE link by texting.
3. A-GPS solutions,shorter locating time,higher precision. 4. OBDII function : fuel, temperature ....ect..



3). Functional features

  • 4G 3G 2G bands
  • Built-in acceleration sensor for vibration alarm and power saving
  • Built-in battery ,power disconnection alarm function
  • Super wide working voltage input range: 9-80V
  • The ACC ignition signal detection, vehicle status indicators
  • Arm / Disarm
  • Watch dog function, reboot automatically after breakdown
  • Suitable for Vehicles/Cars/Motorcycles/E-bike etc
  • SOS ,microphone ,Relay is optional



4). 4G bands in different countries



Europe / Middle East / Africa / South Korea / Thailand

EC25-E:

LTE FDD: B1/B3/B5/B7/B8/B20

LTE TDD: B38/B40/B41

WCDMA: B1/B5/B8

GSM: B3/B8



North America

EC25-A:

LTE FDD: B2/B4/B12

WCDMA: B2/B4/B5

EC25-V:

LTE FDD: B4/B13



Australia/New Zealand/Taiwan/Brazil:

EC25-AU:

LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28

LTE TDD: B40

WCDMA: B1/B2/B5/B8

GSM: B2/B3/B5/B8

EC25-AUT:

LTE FDD: B1/B3/B5/B7/B28

WCDMA: B1/B5

EC25-AUTL:

LTE FDD: B3/87/828



Japan EC25-J

LTE FDD: B1/B3/B8/B18/B19/B26

LTE TDD: B41

WCDMA: B1/B6/B8/B19



Content Specs.
GPS chip UBLOX
GPS sensitivity -159dBm
GPS accuracy 10m
Time To First Fix

Cold status 38s

Warm status 15s

Hot status 1s

Voltage input 9-80V input
Battery Build-in 3.7V 200 mAh Li-ion battery
Storage Temp. -40°C to +85°C
Operation Temp. -20°C to +55°C
Humidity 5%--95% non-condensing
Size 90mm x 33mm x 15mm
Weight 67g ( Battery and Power cord Included )
Waterproof IP65



5) Product Features

2.1 Support global gsm850/900/1800/1900mhz, wcdma850/900/1900/2100 Mhz network frequency band;

2.2 Wide operating input voltage range: 9-80VDC;

2.3 GPS / LBS real-time positioning, support the computer to track the car, mobile search vehicles and wechat search vehicles;

2.4 Support SMS text query location information;

2.5 ACC ignition signal is detected, the vehicle prompted the state;

2.6 Built-in vibration sensor, to achieve intelligent vehicle anti-theft;

2.7 Able to set a specific number for SOS alarm and burglar alarm;

2.8 SOS switch button for emergency call for help;

2.9 Internal / external microphone and speakers, remote audio monitoring and voice intercom function (optional);

2.10 Built-in backup battery, to achieve illegal cutting wire alarm (optional);

2.11 Built-in OBD2 remote vehicle diagnostics management system (optional);

2.12 Platform supports up to 180 days historical route track;

2.13 Platform supports electronic fence, out of the regional alarm;

2.14 Platform supports deviate planning route alarm;

2.15 Platform supports overspeed alarm;

2.16 Platform supports serious collision warning (optional);

2.17 Platform Support rollover warning (optional);

2.18 Platform supports for report output;

2.19 Support WEB send arm and disarm command;

2.20 Support RFID auto-sensing arm and disarm (optional);



6 Installation Notes



3.1 Preparation Before Installation

3.1.1 Open the box, check is the equipment correct, are accessories complete, otherwise please contact your dealer;

3.1.2 SIM card selection, the terminal needs to insert a WCDMA/GSM SIM card, GSM card Unicom mobile or optionally (GSM networks worldwide),WCDMA Unicom 3G.

3.1.3 SIM card installation, open the terminal device, take off the metal cover SIM card slot, SIM card chip insert into the slot, covered with a metal slot cover.

Note: (1) Before installing or removing the SIM card, first turn off the device power;

  • Terminal SIM card need to open GPRS function;
  • Terminal SIM card need to open the Caller ID function (depending on customers prefer or not);
  • If your SIM card needs to enter SIM PIN, please consult your phone's user manual to turn off SIM PIN;
  • Make sure that the SIM card has charges;

3.2 Installation

Terminal installation is concealed installation, hidden installation recommendations terminal equipment designated by the distributor of professional and technical personnel to install, note the following:

3.2.1 To avoid damage to the thief, the device select bits should be hidden;

3.2.2 To avoid to put the emission sources together, such as reversing radar, anti-theft devices and other automotive communications equipment;

3.2.3 It can be fixed by cable ties, or use wide sponge double-sided adhesive stickers;

3.2.4 Equipment built-in GSM antenna and GPS antenna, the installation should ensure a positive upward (toward the sky), and the above non-metal shield block, the proposed installation location:

  • Below the windshield inside the decorative panel;
  • Car meter (surface of non-metallic materials) around the shelter;
  • Rear windshield below the decorative panel;
  • Inside car door or pillar;
  • Within the dashboard or under back seat hidden

Note: (1) If below the windshield there is metal insulation or heating layer will reduce the GPS signal reception, causing the GPS malfunction, please change the installation position;

  • Some models are built-in 3D sensor, and it needs to detect acceleration, deceleration and rollover, equipment must be installed according to the mounting direction front and rear direction of the vehicle can not be mounted transversely.

7  Terminal Outlet Defined

  • Red line connects positive power;
  • Black line connects negative power;
  • Orange connects ACC;
  • Yellow connects relay

Please use the original supplied power cord, the red line is the positive power supply, black for negative power, negative power installation, choose a separate grounding or connect metal, do not connect with the other ground wire together. If need ACC automatic anti-theft function, ensure to connect the ACC line, the device will detect the ACC state to decide whether to enter the security mode; If not connect to ACC line, the vehicle will enter the security mode, vibration occurs under the security mode, vibration alarm will be triggered.

3.4 Proper Use of The Product

Install→Power on→Settings→Register

Installation: GPS antenna should be facing toward the sky, above the mounting location must be no material (such as metal, window film) absorption of electromagnetic waves sheltered place.

Boot: Insert the SIM card correctly, connect the wire according to diagram, then turn on the power.

Setting: Must be done, or can not do other operations, mobile phone owners send text messages to set the owner number and a specific number to the terminal SIM card.

Registration: Registration method is different subject to dealer platforms, please consult your dealer.

3.5 Indicators

3.5.1 Red light - Power Indicator / OBD Work Lights

LED Status Meaning
Flash once in 2 seconds Normal operation / OBD working properly
No light Shutdown / OBD sleep



3.5.2 Yellow indicator light -GSM

LED Status Meaning
Flash once in 2 seconds GSM initialization
Light Always GPRS is normal / already online
No light GSM sleep



3.5.3 Blue LED light -GPS

LED Status Meaning
Flash once in 2 seconds GPS signal searching
Light Always GPS targeted
No light GPS sleep



other GPS tracker of 3G and 2G ....
